Hikrobot MV-ACP-H12p-open-HF-5m

Hikrobot MV-ACP-H12p-open-HF-5m

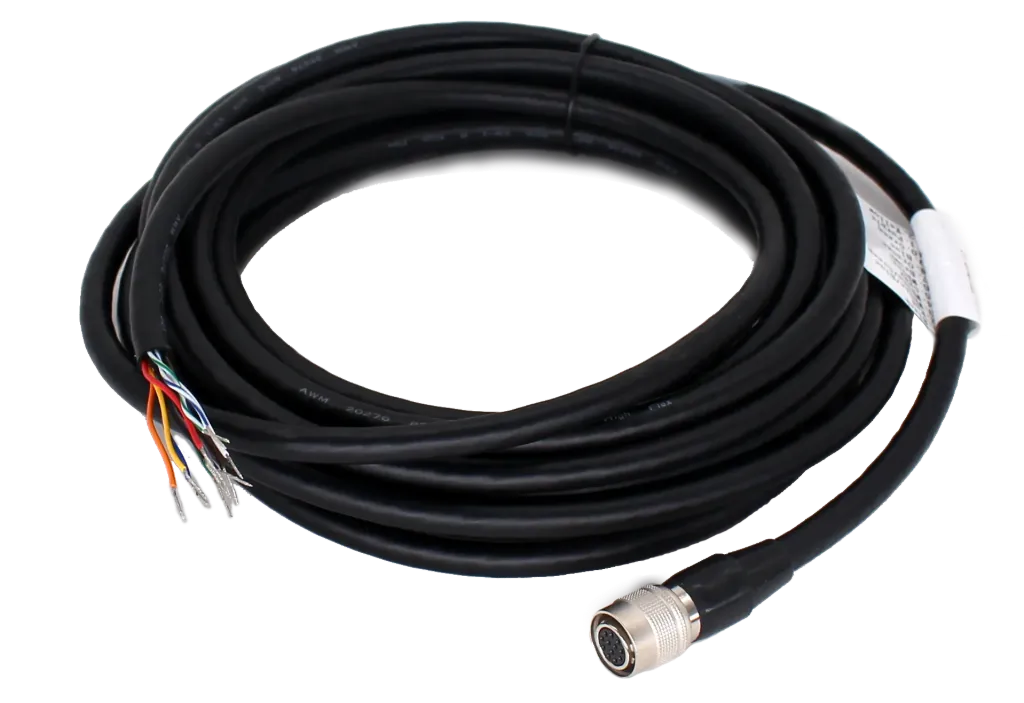

Hikrobot Flexible 12-Pin Power/IO Cables. Hirose 12pin High Flexible，HR10A-10P-12S to Open，5m，Black
243,84 € 243,84 €
kr 1.822,68
(Tax excluded)
Susisiekite su mumis
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACP-H12p-open-HF-5m

Cable

Order code
MV-ACP-H12p-open-HF-5m
Order number
310101243

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The 12-pin P10 high-flex I/O & power cable can be used for camera power supply and I/O signal wiring, and it is available in various lengths.

Specifications

Physical specification
End A connectorP10 12-pin aerospace connector, female
End B connectorOpen
Cable diameter7.0 mm
Length5 m
Cable mechanical5P*26AWG+1P*24AWG+F+B
JacketPVC
Cable colorBlack
Connector model12-Pin P10
Connector durability≥ 750 mating cycles
Min. bending radius84 mm
Applicable scenarioDrag chains
Max. U-type bending cycles≥ 5 million times
Electrical specification
Max. voltage30 VDC
Additional information
Working temperature–20 °C to 80 °C (–4 °F to 176 °F)
CertificationRoHS2.0,UL
PackagingIndividual package
