![[SENSOPART 611-51002] SENSOPART FS/FE 10-RL-PS-K4](/web/image/product.product/19004/image_1024/%5BSENSOPART%20611-51002%5D%20SENSOPART%20FS-FE%2010-RL-PS-K4?unique=c0b4e6f)
SENSOPART FS/FE 10-RL-PS-K4
Emitter/receiver, receiver Teach-in, SN=0…3m, PNP, cable 2m 4-wire
Photoelectric sensors
![[SENSOPART 611-51001] SENSOPART FS/FE 10-RL-NS-E4](/web/image/product.product/19003/image_1024/%5BSENSOPART%20611-51001%5D%20SENSOPART%20FS-FE%2010-RL-NS-E4?unique=c0b4e6f)
SENSOPART FS/FE 10-RL-NS-E4
Emitter/receiver, receiver Teach-in, SN=0…3m,NPN, plug M5 4-pin
![[SENSOPART 611-51000] SENSOPART FS/FE 10-RL-PS-E4](/web/image/product.product/19002/image_1024/%5BSENSOPART%20611-51000%5D%20SENSOPART%20FS-FE%2010-RL-PS-E4?unique=c0b4e6f)
SENSOPART FS/FE 10-RL-PS-E4
Description:
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data:
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data:
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 602-71008] SENSOPART FE 10-RL-NS-KM3](/web/image/product.product/19001/image_1024/%5BSENSOPART%20602-71008%5D%20SENSOPART%20FE%2010-RL-NS-KM3?unique=c0b4e6f)
SENSOPART FE 10-RL-NS-KM3
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 602-71006] SENSOPART FE 10-RL-PS-KM3](/web/image/product.product/19000/image_1024/%5BSENSOPART%20602-71006%5D%20SENSOPART%20FE%2010-RL-PS-KM3?unique=c0b4e6f)
SENSOPART FE 10-RL-PS-KM3
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 602-71005] SENSOPART FE 10-RL-NS-KM4](/web/image/product.product/18999/image_1024/%5BSENSOPART%20602-71005%5D%20SENSOPART%20FE%2010-RL-NS-KM4?unique=c0b4e6f)

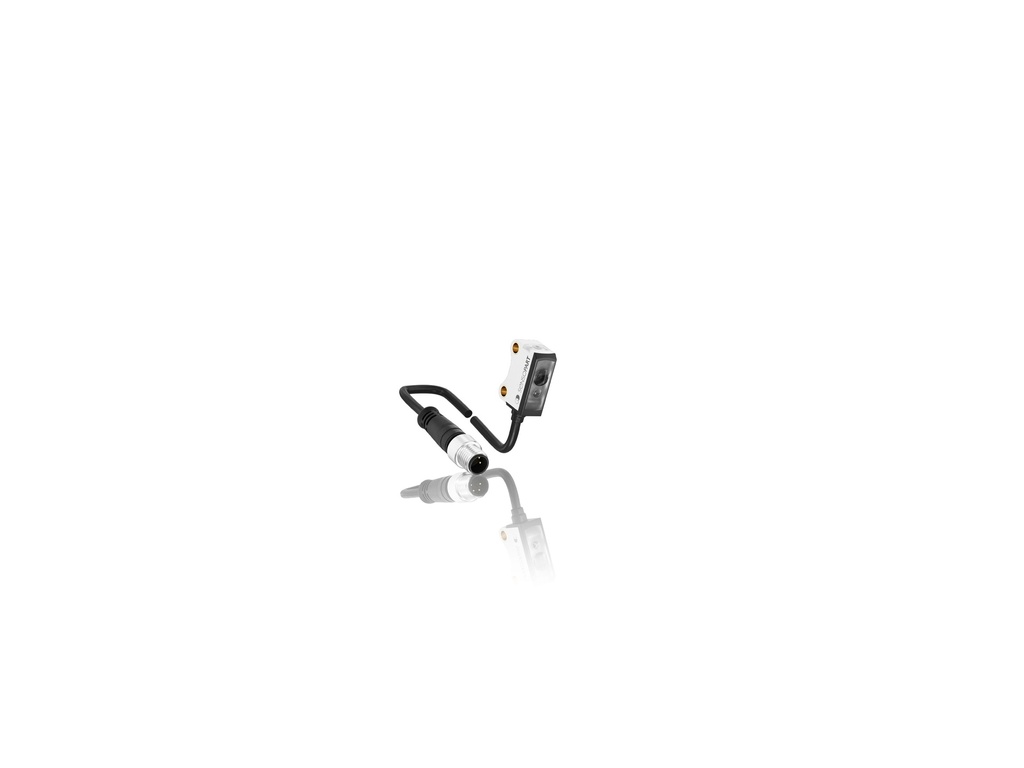

SENSOPART FE 10-RL-NS-KM4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 602-71004] SENSOPART FE 10-RL-PS-KM4](/web/image/product.product/18998/image_1024/%5BSENSOPART%20602-71004%5D%20SENSOPART%20FE%2010-RL-PS-KM4?unique=c0b4e6f)
SENSOPART FE 10-RL-PS-KM4
Laser through-beam sensor, receiver, red light, laser class 1, SN=4000mm, PNP, 4000Hz, IP67, moulded plug (pigtail) M8 4-pin, 2
![[SENSOPART 602-71003] SENSOPART FE 10-RL-NS-K4](/web/image/product.product/18997/image_1024/%5BSENSOPART%20602-71003%5D%20SENSOPART%20FE%2010-RL-NS-K4?unique=c0b4e6f)
SENSOPART FE 10-RL-NS-K4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
![[SENSOPART 602-71002] SENSOPART FE 10-RL-PS-K4](/web/image/product.product/18996/image_1024/%5BSENSOPART%20602-71002%5D%20SENSOPART%20FE%2010-RL-PS-K4?unique=c0b4e6f)

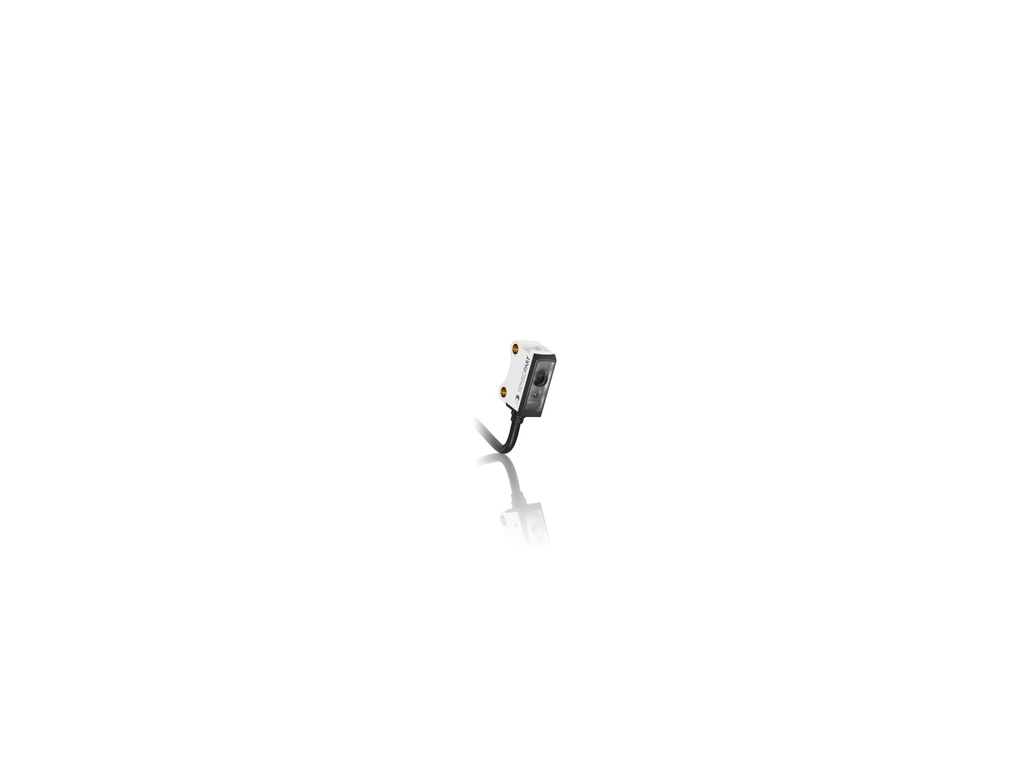

SENSOPART FE 10-RL-PS-K4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
![[SENSOPART 602-71001] SENSOPART FE 10-RL-NS-E4](/web/image/product.product/18995/image_1024/%5BSENSOPART%20602-71001%5D%20SENSOPART%20FE%2010-RL-NS-E4?unique=c0b4e6f)
SENSOPART FE 10-RL-NS-E4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 602-71000] SENSOPART FE 10-RL-PS-E4](/web/image/product.product/18994/image_1024/%5BSENSOPART%20602-71000%5D%20SENSOPART%20FE%2010-RL-PS-E4?unique=c0b4e6f)

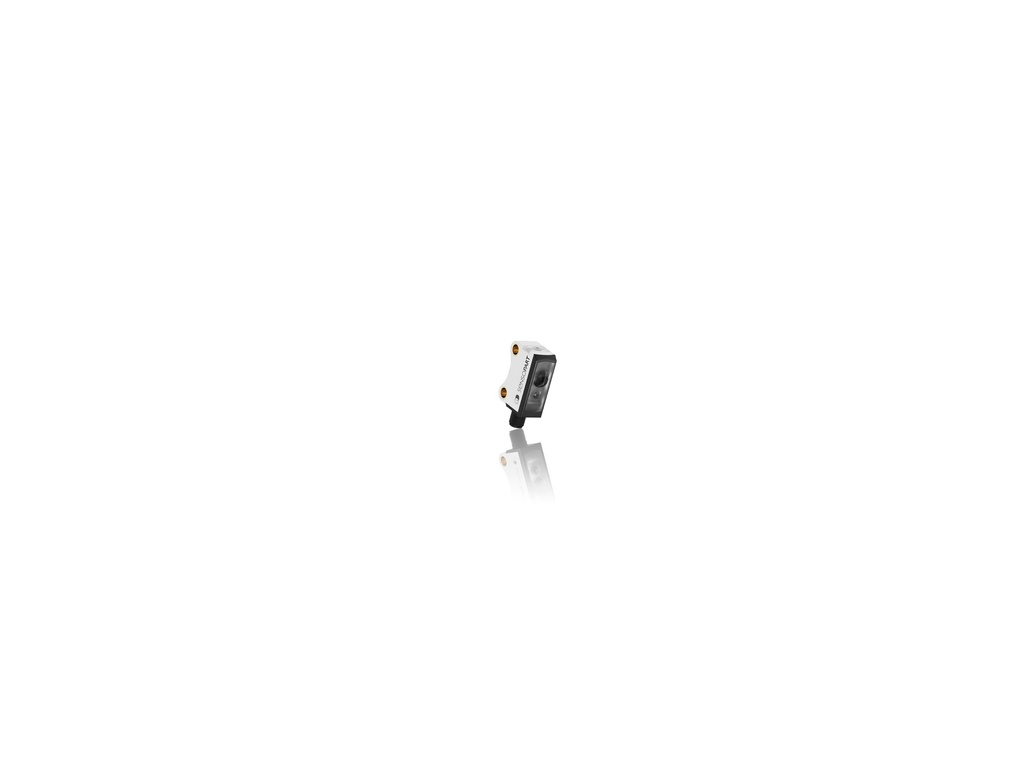

SENSOPART FE 10-RL-PS-E4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 601-61005] SENSOPART FS 10-RL-KM3](/web/image/product.product/18993/image_1024/%5BSENSOPART%20601-61005%5D%20SENSOPART%20FS%2010-RL-KM3?unique=c0b4e6f)
SENSOPART FS 10-RL-KM3
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 601-61004] SENSOPART FS 10-RL-KM4](/web/image/product.product/18992/image_1024/%5BSENSOPART%20601-61004%5D%20SENSOPART%20FS%2010-RL-KM4?unique=c0b4e6f)
SENSOPART FS 10-RL-KM4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 601-61002] SENSOPART FS 10-RL-K4](/web/image/product.product/18991/image_1024/%5BSENSOPART%20601-61002%5D%20SENSOPART%20FS%2010-RL-K4?unique=c0b4e6f)
SENSOPART FS 10-RL-K4
Laser through-beam sensor, emitter, red light, laser class 1, SN=3000mm, PNP, 4000Hz, IP67, cable 2m 4-wire
![[SENSOPART 601-61000] SENSOPART FS 10-RL-E4](/web/image/product.product/18990/image_1024/%5BSENSOPART%20601-61000%5D%20SENSOPART%20FS%2010-RL-E4?unique=c0b4e6f)
SENSOPART FS 10-RL-E4
Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• High switching frequency for detection in even the fastest processes
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• High switching frequency for detection in even the fastest processes
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 603-31007] SENSOPART FR 10-RL-NS-KM3](/web/image/product.product/18989/image_1024/%5BSENSOPART%20603-31007%5D%20SENSOPART%20FR%2010-RL-NS-KM3?unique=c0b4e6f)
SENSOPART FR 10-RL-NS-KM3
Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 603-31006] SENSOPART FR 10-RL-PS-KM3](/web/image/product.product/18988/image_1024/%5BSENSOPART%20603-31006%5D%20SENSOPART%20FR%2010-RL-PS-KM3?unique=c0b4e6f)
SENSOPART FR 10-RL-PS-KM3
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
Suitable for numerous different reflectors
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
Suitable for numerous different reflectors
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 603-31005] SENSOPART FR 10-RL-NS-KM4](/web/image/product.product/18987/image_1024/%5BSENSOPART%20603-31005%5D%20SENSOPART%20FR%2010-RL-NS-KM4?unique=c0b4e6f)
SENSOPART FR 10-RL-NS-KM4
Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 603-31004] SENSOPART FR 10-RL-PS-KM4](/web/image/product.product/18986/image_1024/%5BSENSOPART%20603-31004%5D%20SENSOPART%20FR%2010-RL-PS-KM4?unique=c0b4e6f)
SENSOPART FR 10-RL-PS-KM4
Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
![[SENSOPART 603-31003] SENSOPART FR 10-RL-NS-K4](/web/image/product.product/18985/image_1024/%5BSENSOPART%20603-31003%5D%20SENSOPART%20FR%2010-RL-NS-K4?unique=c0b4e6f)
SENSOPART FR 10-RL-NS-K4
Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
![[SENSOPART 603-31002] SENSOPART FR 10-RL-PS-K4](/web/image/product.product/18984/image_1024/%5BSENSOPART%20603-31002%5D%20SENSOPART%20FR%2010-RL-PS-K4?unique=c0b4e6f)
SENSOPART FR 10-RL-PS-K4
Description
* Sub-miniature sensor for installation in the smallest of spaces
* Bright, precise laser light spot for optimum small-part detection and simple alignment
* Suitable for numerous different reflectors
* User-friendly operation via electronic Teach-in button or control line
* Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
* Sub-miniature sensor for installation in the smallest of spaces
* Bright, precise laser light spot for optimum small-part detection and simple alignment
* Suitable for numerous different reflectors
* User-friendly operation via electronic Teach-in button or control line
* Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
