Photoelectric sensors

Sorter efter Sorter efter: Udvalgte

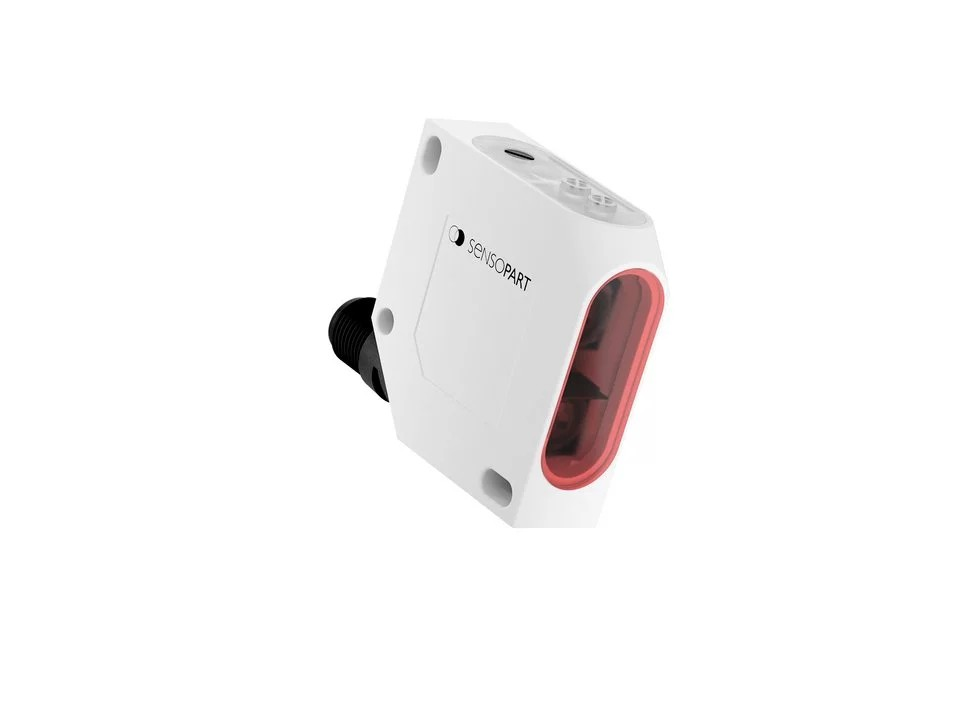

[SENSOPART 600-11176] SENSOPART FT 10-RLA-60-PNSL-K4

SENSOPART FT 10-RLA-60-PNSL-K4

Description
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety

Product data

Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
[SENSOPART 600-11175] SENSOPART FT 10-RLA-60-PNSL-KM4 FT 10-RLA-60-PNSL-KM4

SENSOPART FT 10-RLA-60-PNSL-KM4

Description
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety

Product data
Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
[SENSOPART 600-11167] SENSOPART FT 10-B-RLF1-PNSL-E4

SENSOPART FT 10-B-RLF1-PNSL-E4

Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, plug M5 4-pin, IP 67, IO-Link
[SENSOPART 600-11168] SENSOPART FT 10-B-RLF1-PNSL-K4

SENSOPART FT 10-B-RLF1-PNSL-K4

Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, cable 2m 4-wire, IP 67, IO-Lin
[SENSOPART 600-11169] SENSOPART FT 10-B-RLF1-PNSL-KM4

SENSOPART FT 10-B-RLF1-PNSL-KM4

Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, pigtail 200 mm with plug M8 4-
[SENSOPART 600-11170] SENSOPART FT 10-B-RLF1-PNSL-KM3

SENSOPART FT 10-B-RLF1-PNSL-KM3

Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, pigtail 200 mm with plug M8 3-
[SENSOPART 600-11171] SENSOPART FT 10-B-RLF2-PNSL-E4

SENSOPART FT 10-B-RLF2-PNSL-E4

Photoelectric diffuse sensor with background suppression (fix focus), 30 mm, Laser, Auto-Detect, plug M5 4-pin, IP 67, IO-Link
[SENSOPART 600-11172] SENSOPART FT 10-B-RLF2-PNSL-K4

SENSOPART FT 10-B-RLF2-PNSL-K4

Photoelectric diffuse sensor with background suppression (fix focus), 30 mm, Laser, Auto-Detect, cable 2m 4-wire, IP 67, IO-Lin
[SENSOPART 600-11173] SENSOPART FT 10-B-RLF2-PNSL-KM4

SENSOPART FT 10-B-RLF2-PNSL-KM4

Photoelectric diffuse sensor with background suppression (fix focus), 30 mm, Laser, Auto-Detect, pigtail 200 mm with plug M8 4-
[SENSOPART 600-11174] SENSOPART FT 10-B-RLF2-PNSL-KM3

SENSOPART FT 10-B-RLF2-PNSL-KM3

Photoelectric diffuse sensor with background suppression (fix focus), 30 mm, Laser, Auto-Detect, pigtail 200 mm with plug M8 3-

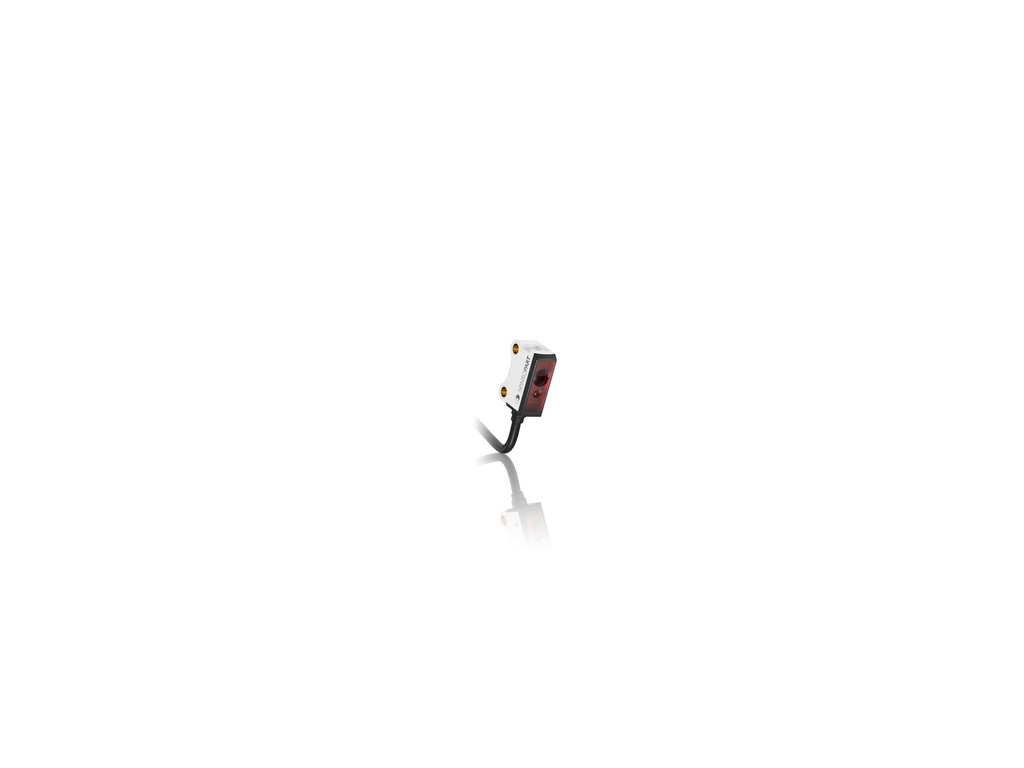

[SENSOPART 600-11052] SENSOPART FT 10-RF1-PNSL-K4

SENSOPART FT 10-RF1-PNSL-K4

Photoelectric proximity sensor with background supression (fix focus), 15 mm, red light LED, Auto-Detect, cable 2m 4-wire, IP 6
[SENSOPART 600-11053] SENSOPART FT 10-RF1-PNSL-KM4

SENSOPART FT 10-RF1-PNSL-KM4

Photoelectric proximity sensor with background supression (fix focus), 15 mm, red light LED, Auto-Detect, pigtail 200 mm with p

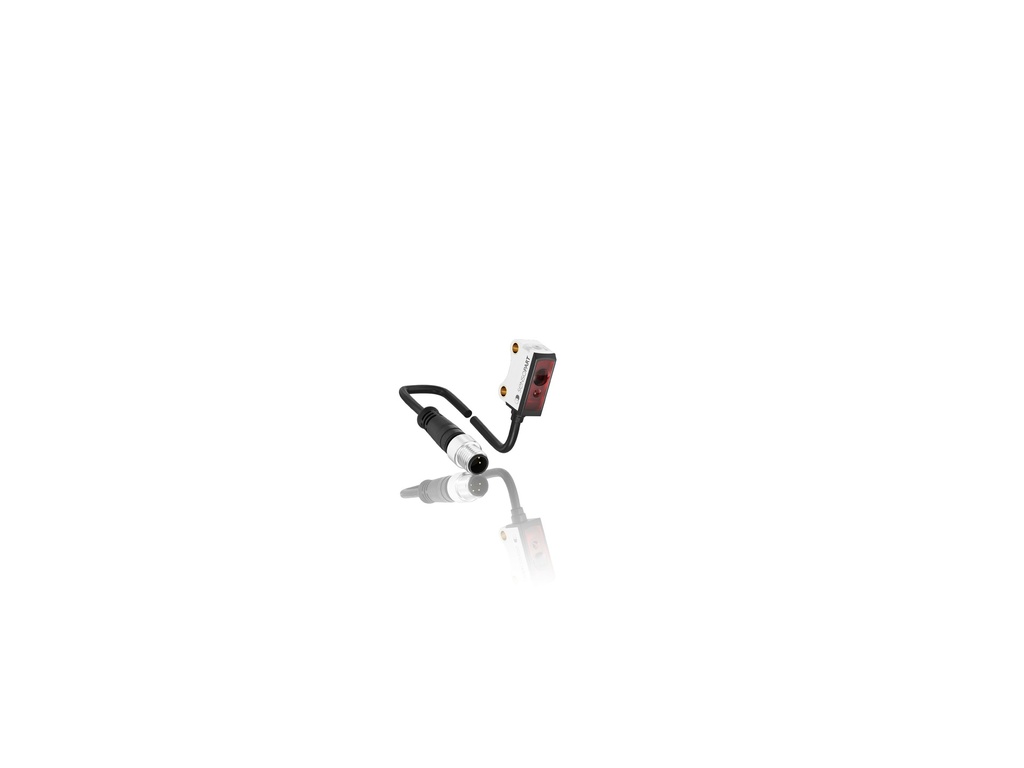

[SENSOPART 600-11054] SENSOPART FT 10-RF1-PNSL-KM3

SENSOPART FT 10-RF1-PNSL-KM3

Photoelectric proximity sensor with background supression (fix focus), 15 mm, red light LED, Auto-Detect, pigtail 200 mm with p
[SENSOPART 600-11055] SENSOPART FT 10-RF2-PNSL-K4

SENSOPART FT 10-RF2-PNSL-K4

Photoelectric proximity sensor with background supression (fix focus), 30 mm, red light LED, Auto-Detect, cable 2m 4-wire, IP 6
