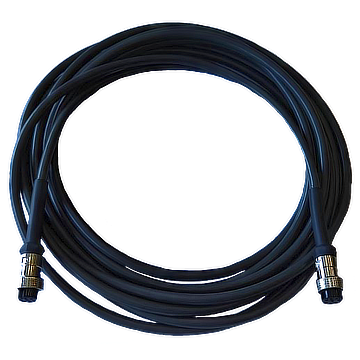

Hikrobot MV-LW-H-030-1-19M8A

Light Source Accessories

Order code
MV-LW-H-030-1-19M8A
Order number
101517864

Genuine Hikrobot Light Cables — cable for connecting machine-vision lighting.

Key features

✓Provides high-quality cable(s) for drag chain use scenarios.
✓MV-LW-H-0**-1-19M8A series light source extension cable(s) should be used together with MV-LTDS-H series line scan lights.
✓Various lengths can be selected to meet the installation mode of different distances of the light sources (it should be noted that there is a certain voltage drop under a long distance).

Specifications

Physical specification
Channel1
End A connector19M-8A
End B connector19M-8A
Length30 m
Cable diameterΦ8.75 mm
Cable jacketPVC
Max. ±90° bending cycles2 million times
Min. bending radiusCable: 105 mm; Cable plus connector tail: 130 mm
Connector durability500 times
Flame resistance ratingVW-1
Electrical specification
Insulation≥ 10 MΩ/KM
Withstand voltage capability300 V
Mechanical
TemperatureWorking temperature: 0 °C to 80 °C (32 °F to 176 °F) Storage temperature: –20 °C to 80 °C (–4 °F to 176 °F)
Humidity20% RH to 90% RH (no condensation)
Ingress protectionIP55 (under correct installation)
General
CertificationRoHS 2.0
