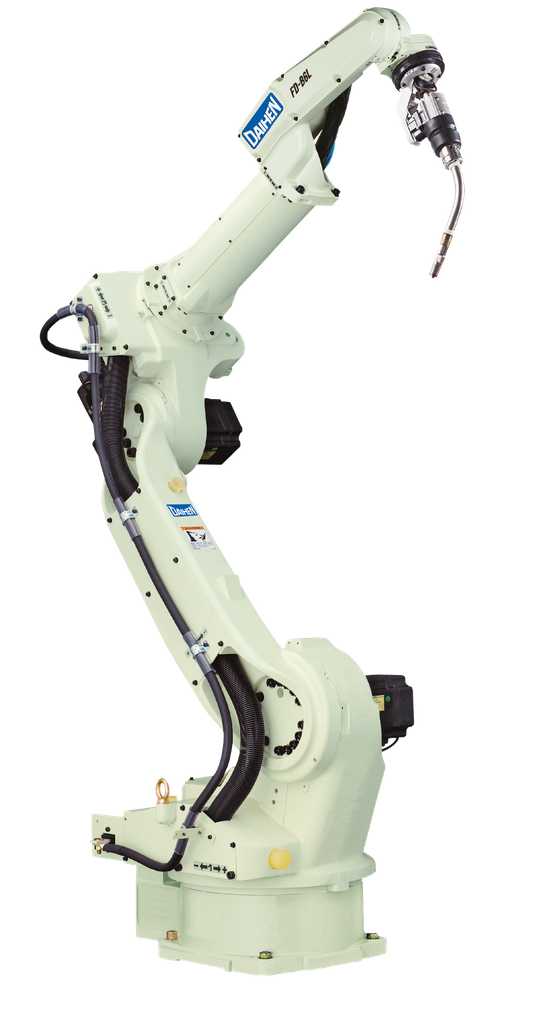

OTC - RMFD19-B6L-SET
FD19 B6L Robot Base Module
• Simple and slim design only 278 kg weight
• Optimized payload capacity of 6 kg
• Advanced operational performance by high accurate positional repeatability of 0.08 mm
• Ideal for offline teaching
• Extremely reliable
• Large working range of R 2008 mm
• Incl. APS Function (Advanced Parameter Selection)

The Basic Robot Module include:
① Robot Manipulator (NB6L2-CEFC(S2))
② Control Unit FD19 (FD19-CL0000)
③ Teach Pendand for FD19 (FD19TP-DSJNW)
④ Point Mark Assy (L7096C00)
⑤ Transformer case & noise filter for FD19 (CE-KIT)
⑥ Teach Pendant 8m Cable for FD19
⑦ Control Cable 5m for B6, B6L, V8, V8L, V25(FD19)
⑧ Transformer 3kVA
⑨ Operation Box with 5m Cable for FD19
⑩-1 Printed Circuit Board Relay Unit for FD19 ( 1-32 IN/OUT)

For different configuration of the SET, contact us.


You need to login to see your price! 0.0 EUR
CUBE05
All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 05
2x 2-axis turn/tilt positioner in different payload classes (250, 500 and 1.000kg)
You need to login to see your price! 0.0 EUR
OTC-RMFD19-B6-SET
FD19-B6 Robot Base Module

• Simple and slim design only 145 kg weight
• Optimized payload capacity of 6 kg
• Advanced operational performance by high accurate positional repeatability of 0.08 mm
• Easy handling (Teach in)
• Extremely reliable
• Working range of R 1445 mm
• Incl. APS Function (Advanced Parameter Selection)
• Incl. IFC Function (Intuitive Function Control)

This kit incl.
116000009: Basic Robot Module RMFD19-B6
116003003: Transformer case & noise filter for FD19 (CE-KIT)
116007019: Teach Pendant 8m Cable for FD19
116072015: Control Cable 5m for B6, B6L, V8, V8L, V25(FD19)
214003002: Transformer 3kVA
116072003: Operation Box with 5m Cable for FD19
116006028: Printed Circuit Board Relay Unit for FD19 ( 1-32 IN/OUT)
You need to login to see your price! 0.0 EUR
CUBE04
All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 04
2-station horizontal rotary positioner in different payload classes (250, 500 and 1.000kg) and different center distances
You need to login to see your price! 0.0 EUR
CUBE03
All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 03
2x horizontal rotary positioners in different payload classes (250, 500 and 1.000kg) incl. counter bearing unit
You need to login to see your price! 0.0 EUR
CUBE02
All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 02
Motorized reversing 180° cycle table for holding clamping tools
You need to login to see your price! 0.0 EUR
CUBE01
All CUBES include the following equipment as standard:

Industrial robot
Welding power source
Welding equipment
Positioning technology
Control cabinet
Safety engineering

The CUBEs are available with 5 different positioning techniques:

CUBE 01
Two fixed tables for holding clamping tools
You need to login to see your price! 0.0 EUR
MV-CU050-60UM(O-STD)
Key Feature

Adopts brand new design to reduce power consumption.

Supports increasing frame rate via ROI, and supports binning, horizontal and vertical reverse image output.

Supports hardware trigger, software trigger, and free run.

Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
You need to login to see your price! 0.0 EUR
MV-CU050-60GM(O-STD)
Key Feature

Adopts low power consumption design with stable performance.

Supports auto and manual adjustment of gain, exposure time, etc.

Supports hardware trigger, software trigger, free run, etc.

Adopts GigE interface and max. transmission distance of 100 meters without relay.

Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
You need to login to see your price! 0.0 EUR
You need to login to see your price! 0.0 EUR
FT 55-BH-NS-L4
Description
Long scanning distance of 1.2 m
BlueLight technology with precisely adjustable background suppression – reliable operation even with highly reflective and glossy backgrounds
Precise scanning distance adjustment by means of potentiometer • Reliable detection of highly transparent or strongly light absorbing objects
Reliable detection even with angles of up to 90°

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 3
Working distance max. [mm]: 1200
Velocity [Hz] 600
Adjustment: Potentiometer
Light source: LED, blue
Switching output :NPN
Temperature range [°C] :-20 ... +60
Connection type: Plug M12, 4-pin
Enclosure rating : IP69K, IP 67
You need to login to see your price! 0.0 EUR
Mech-MSR 3D Measurement and Inspection Software
Mech-MSR 3D Measurement and Inspection Software
Mech-MSR is an all-new AI software designed for 3D measurement and inspection applications. Running on Mech-Eye LNX 3D laser profilers, Mech-MSR can quickly create end-to-end inspection solutions and offer an excellent user experience like never before.

Easy-to-use GUI design
Graphical and easy-to-navigate UI design allows you to create measurement solutions intuitively.

No expertise required
Build and deploy measurement tasks fast and easily with our streamlined configuration tools, accessible to users of all levels of 3D vision.

End-to-end deployment
Experience effortless deployment using Mech-MSR, encompassing scanning, alignment, measurement, result evaluation, and factory communication

Out-of-the-box performance:
Leverage a suite of algorithms
Utilize our built-in algorithms for efficient 3D measurement applications, including dimensional measurement, defect detection, object counting, height & flatness measurement, etc.

Easy sensor setup
Easily connect to and run on the Mech-Eye LNX 3D laser profilers for easy setup and real-time data collection.

Multi-dimensional (2D/3D) measurement capabilities
Perform measurements on 3D (surfaces & profiles) and 2D (intensity) data for accurate inspection.
You need to login to see your price! 0.0 EUR
EASY ARC
Medium-sized companies have to face the issues of the shortage of skilled workers. With the various standard solutions EASY ARC, COMPACT SERIES and CUBE SOLUTIONS, OTC DAIHEN provides three innovative answers to today's challenges - from workshop operations to industrial companies.

Footprint: 2,2m x 1,2m
Two basic versions: MIG/MAG und TIG
Options: Welding equipment, fume extraction, positioner, sensoric, JoyPen and Offline Programming
You need to login to see your price! 0.0 EUR
WIREFEED UNIT CM-0401-D
The CM-0401-D wire feed unit is a component that has been specially developed for ARXIS welding power sources.

Wire feeders are used to supply filler metal to the weld joint and are essential for MIG/MAG and TIG cold wire welding. External wire feeder can provide significant advantages over internal wire feeders and are a popular choice for professional welders looking to improve the quality and efficiency of their welding process.
You need to login to see your price! 0.0 EUR
You need to login to see your price! 0.0 EUR
RCS 2000 (Robotic Control System) which support up 5 AGV
RCS is responsible for task scheduling, robot dispatching, operation and maintenance management. Based on various scheduling algorithms, RCS can realize optimal task allocation, multi-robots path planning, traffic management, etc. Scheduling multiple types of robots to work together, maximize efficiency is achievable in different scenarios.
