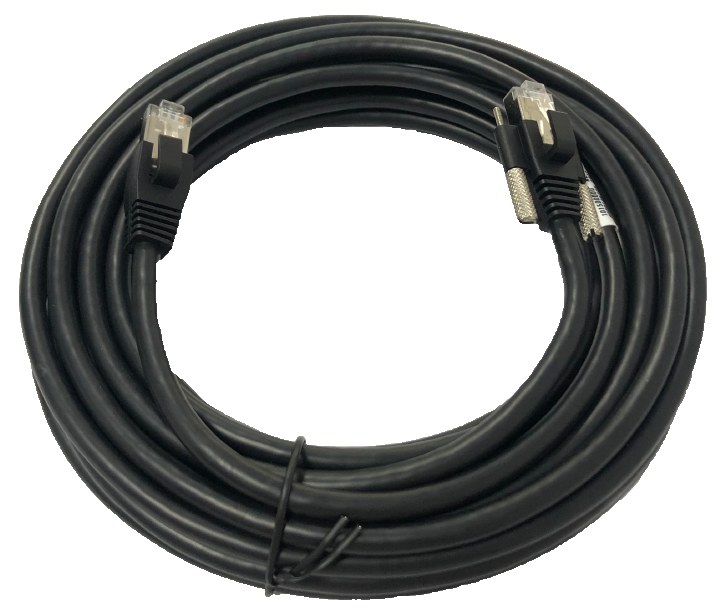

Hikrobot MV-ACG-RJ45s-RJ45-ST-1m

Cable

Order code
MV-ACG-RJ45s-RJ45-ST-1m
Order number
Hikrobot 310101132

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The RJ45 Standard Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorRJ45 (with locking stud)
End B connectorRJ45
Cable diameter6.2 mm
Length1 m
Cable mechanical4P*26#+AB
JacketPVC
Cable colorBlack
Connector durability≥750 cycles
Min. bending radius74.4 mm
Applicable scenarioStatic scenes
Max. voltage30 VDC
Working temperature-20°C~ 75°C
CertificationRoHS2.0,UL
PackagingIndividual package

Downloads

Datasheets, drawings and manuals — all in one place.

MV-ACG-RJ45s-RJ45-ST-1m - Datasheet.pdfPDF · 883.8 KB
