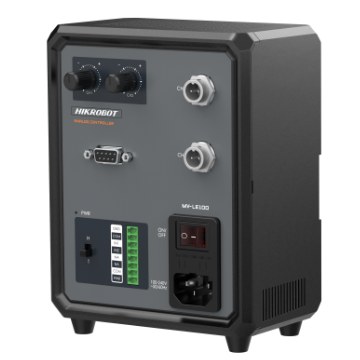

Hikrobot MV-LE100-200W24-2BD(O-STD)

Hikrobot MV-LE100-200W24-2BD — MV-LE100 analog light controller supports infinitely variable brightness and outputting multichannel light sources. It provides trigger input connectors, device management interface, etc. The analog light controller helps users realize fast and convenient deployment of vision light source on site.. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-LE100-200W24-2BD - Datasheet.pdf MV-LE100-200W24-2BD - Drawing.pdf MV-LE100-200W24-2BD - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-LE100-200W24-2BD

Hik Light Controller

Order code
MV-LE100-200W24-2BD
Order number
310101767
Interface
C13 220 VAC interface

Genuine Hikrobot Light Controller — light controller for driving and dimming machine-vision illumination.

Key features

✓Adopts constant voltage control and supports infinitely variable brightness.
✓Adopts knob control on control panel, and plug and play.
✓Provides multichannel opto-isolated inputs.
✓Supports installation via slide rail or screw hole.
✓Supports overcurrent, overload, short circuit protection.

Specifications

Performance
Channel2-channel
Dimming modeControl panel (knob), software (serial port)
Trigger modeExternal trigger
Electrical feature
Output current for each channelMax. 6 A
Mechanical
Power supply interfaceC13 220 VAC interface
Digital I/OOpto-isolated input × 2
Dimension130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7")
Shell materialPlastic
WeightApprox. 820 g (1.8 lb.)
TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 85% RH (no condensation)
Ingress protectionIP30
General
CertificationCE, KC
