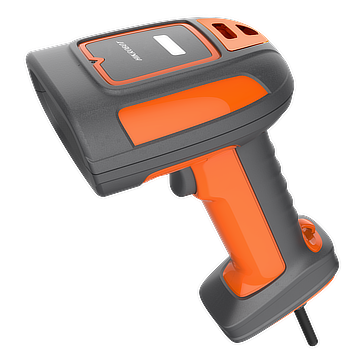

Hikrobot MV-IDH7000P/10NR/07RN/L

IDH

Order code
MV-IDH7000P/10NR/07RN/L
Order number
313200884

Hikrobot MV-IDH7000P/10NR/07RN/L is a handheld code reader for robust scanning of barcodes and 2D codes in industry and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417
Min. accuracy3 mil
Sensor typeCMOS
Resolution1280 × 800
Depth of field*Code 39 (3 mil): 15 mm to 60 mm Code 39 (5 mil): 5 mm to 80 mm Data Matrix (5 mil): 10 mm to 70 mm Data Matrix (10 mil): 0 mm to 110 mm1 QR Code (5 mil): 10 mm to 70 mm
Field of viewHorizontal 31°, vertical 20°
Detection angleTilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast20%
Communication protocolNetwork interface: SmartSDK, TCP Client, TCP Server, FTP, Profinet, Ethernet/IP, Modbus, UDP, Serial, FINS, Melsec/SLMP USB interface: SmartSDK, USB (HID/CDC), Serial
Electrical feature
Data interfaceNetwork interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0, DC terminal, RS-232
Power supplyNetwork interface: 12 VDC USB interface: USB 2.0: 5 VDC; DC terminal: 12 VDC
Current consumptionUSB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical)
Mechanical
Focal length6.7 mm
Ambient illumination0 lux to 100000 lux
Light sourceDirect lighting: white LED Diffused reflection lighting: red LED
Aiming systemCross laser aiming
Dimension73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0")
WeightApprox. 460 g (1.0 lb.)
Ingress protectionIP65
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 95% RH (no condensation)
Drop height2.0 m
General
Client softwareIDMVS
CertificationCE, KC
Laser Information of IDH7000P Series Product
Laser safety classLaser 2
Wavelength650 nm
Pulse width8 ms
Maximum power1 mW
