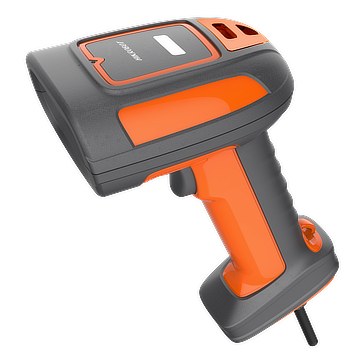

Hikrobot MV-IDH7000P_10HHD_07RN_L

IDH7000 Series

Key features

Key Feature

  • Built-in code reading algorithm for decoding different types of codes.

  • Provides good robustness to read codes with spots, defects and low contrast ratio.

  • Supports continuous code reading, batch code reading for improving code reading efficiency.

  • Adopts illumination system to provide direct lighting and diffused reflection lighting.

  • Easy to replace components.

  • IP65 and drop height of 2.0 m.



Available Model

MV-IDH7000P/10HHD/07RN/L


Dimension

Technical specifications

Product ModelMV-IDH7000P/10HHD/07RN/L
TypeUltra-Rugged Wired Handheld Code Reader（Lan Base）
Symbologies1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked code: PDF417
Min. accuracy0.8 mil (1D codes) 2 mil (2D codes)
Sensor typeCMOS
Resolution1280 × 800
Depth of fieldCode 39 (5 mil): 0 mm to 29 mm1 Data Matrix (2 mil): 0 mm to 11 mm1 Data Matrix (5 mil): 0 mm to 20 mm1 QR Code (10 mil): 0 mm to 40 mm1
Field of viewHorizontal 31°, vertical 20°
Detection angleTilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast20%
Communication protocolSmartSDK, TCP Client, TCP Server, FTP, Profinet, Ethernet/IP, Modbus, UDP, Serial, FINS, Melsec/SLMP
Data interfaceFast Ethernet (100 Mbit/s), RS-232, DC terminal
Power supply12 VDC
Current consumption0.5 A (max.), 0.28 A (typical)
Focal length6.7 mm
Ambient illumination0 lux to 100000 lux
Light sourceDirect lighting: white LED Diffused reflection lighting: red LED
Aiming systemCross laser aiming
Dimension73.4 mm × 104 mm × 229.5 mm (2.9" × 4.1" × 9.0")
WeightApprox. 460 g (1.0 lb.)
Ingress protectionIP65
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 95% RH (no condensation)
Drop height2.0 m
Laser safety classLaser 2
Wavelength650 nm
Pulse width8 ms
Maximum power1 mW
Client softwareIDMVS
CertificationCE, KC
