OTC-RMFD19-B6-SET

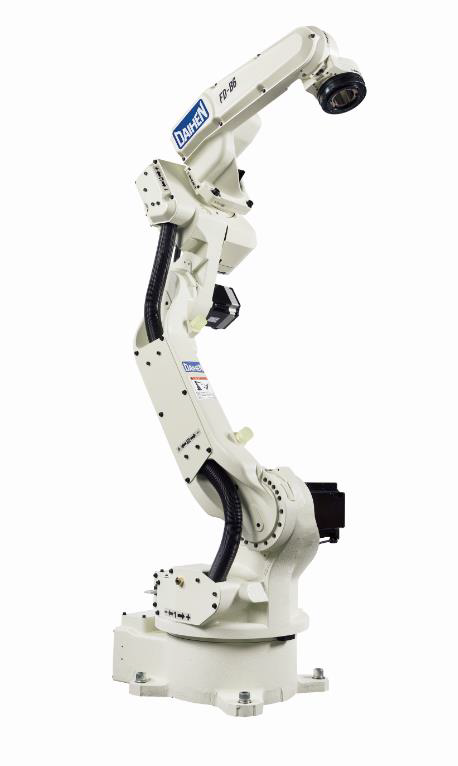

FD19-B6 Robot Base Module

• Simple and slim design only 145 kg weight
• Optimized payload capacity of 6 kg
• Advanced operational performance by high accurate positional repeatability of 0.08 mm
• Easy handling (Teach in)
• Extremely reliable

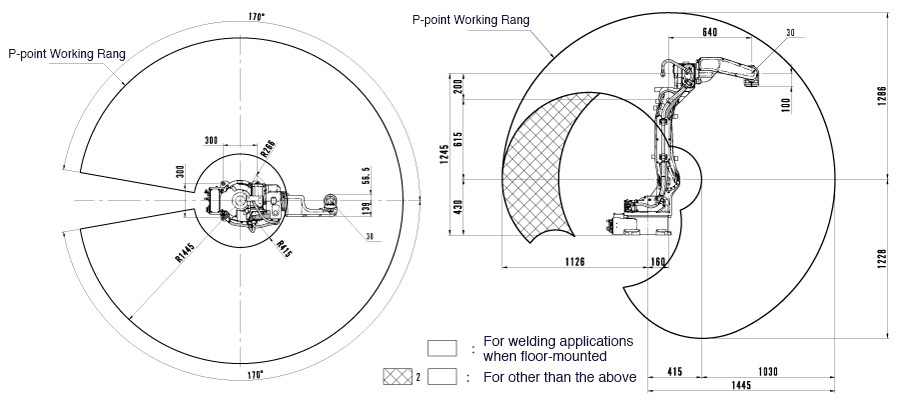

• Working range of R 1445 mm
• Incl. APS Function (Advanced Parameter Selection)
• Incl. IFC Function (Intuitive Function Control)

This kit incl.
116000009: Basic Robot Module RMFD19-B6

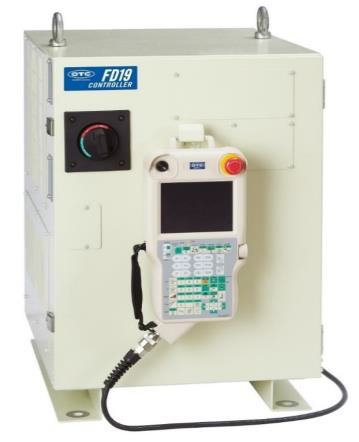

116003003: Transformer case & noise filter for FD19 (CE-KIT)
116007019: Teach Pendant 8m Cable for FD19
116072015: Control Cable 5m for B6, B6L, V8, V8L, V25(FD19)
214003002: Transformer 3kVA
116072003: Operation Box with 5m Cable for FD19
116006028: Printed Circuit Board Relay Unit for FD19 ( 1-32 IN/OUT)
