OTC - RMFD19-B6L-SET

FD19 B6L Robot Base Module
• Simple and slim design only 278 kg weight
• Optimized payload capacity of 6 kg
• Advanced operational performance by high accurate positional repeatability of 0.08 mm
• Ideal for offline teaching
• Extremely reliable
• Large working range of R 2008 mm
• Incl. APS Function (Advanced Parameter Selection)

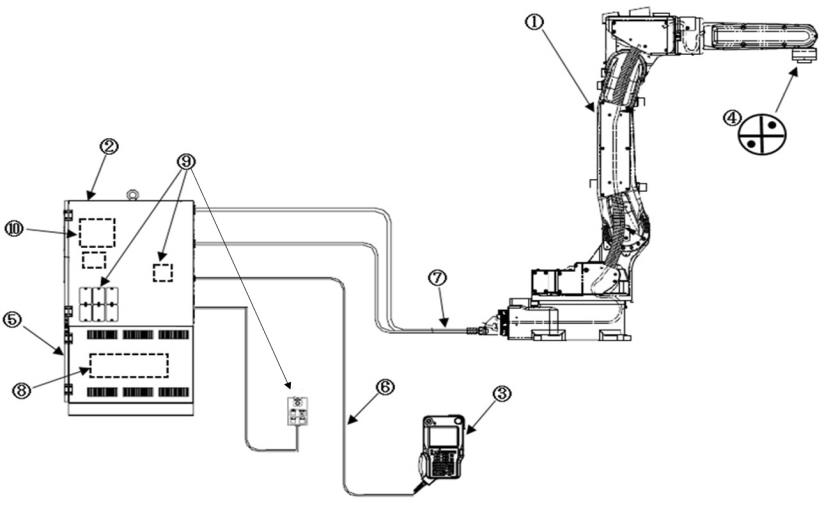

The Basic Robot Module include:
① Robot Manipulator (NB6L2-CEFC(S2))
② Control Unit FD19 (FD19-CL0000)
③ Teach Pendand for FD19 (FD19TP-DSJNW)
④ Point Mark Assy (L7096C00)
⑤ Transformer case & noise filter for FD19 (CE-KIT)
⑥ Teach Pendant 8m Cable for FD19
⑦ Control Cable 5m for B6, B6L, V8, V8L, V25(FD19)
⑧ Transformer 3kVA
⑨ Operation Box with 5m Cable for FD19
⑩-1 Printed Circuit Board Relay Unit for FD19 ( 1-32 IN/OUT)

For different configuration of the SET, contact us.
