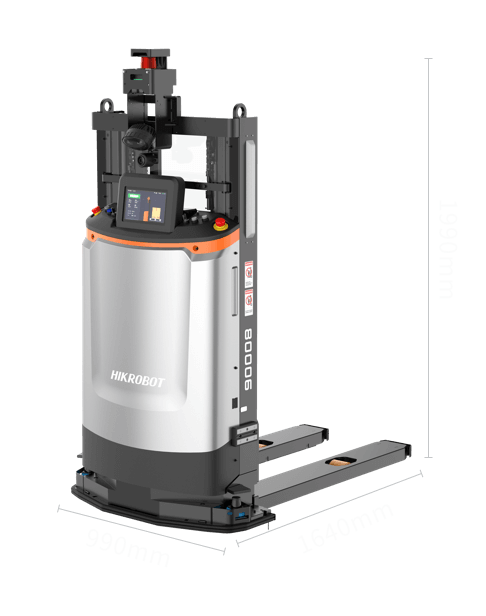

Hikrobot F4-1000

Hikrobot F4-1000

Hikrobot F4-1000 — A mobile robot (AMR) for autonomous material transport and intralogistics. Genuine product, supplied by ZTEC.

139,393.81 € 139,393.81 €
kr 1,042,010.55
(Tax excluded)
Contact Us
Documents
MR-F4-1000-C(HI)_datasheet_20240407.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot F4-1000

HIKROBOT - AMR

Order code
F4-1000
Order number
HIK-F4-1000

Hikrobot F4-1000 is a mobile robot (AMR) for autonomous material transport and intralogistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Pallet, tote and material transport across the plant
Pallet, tote and material transport across the plant
Automated intralogistics and line feeding
Automated intralogistics and line feeding
24/7 production logistics with autonomous navigation
24/7 production logistics with autonomous navigation
Robot-fleet automation and warehouse material flow
Robot-fleet automation and warehouse material flow

Specifications

Basic Parameter
Dimension (l1*b1*h1)1746 mm × 1073 mm × 1915 mm (68.74" × 42.24" × 75.39")
Weight (with Battery)746 kg (1644.65 lb.)
Rated Load (Q)1000 kg (2204.62 lb.)
Load Center Distance (C)600 mm (23.62")
Wheelbase (y)990.3 mm (38.99")
Lifting Height (h3+h13)2081 mm (81.93")
Max. Mast Height (h4)2666 mm (104.96")
Fork Above Ground After Lowering (h13)81 mm (3.19")
Fork Height/Width/Length (s/e/l)65 mm/160 mm/1279 mm (2.56"/6.30"/50.35")
Fork Distance (b5)630 mm (24.80")
Min. Ground Clearance (m2)11 mm (0.43")
Laser Scanning Height (h15)1896 mm (74.65")
Min. Rotation Radius (Wa)1180 mm (46.46")
Aisle Width (Ast)2120 mm (83.46") (with pallet 1200 × 800)
Motion Performance
Running Speed (Full/Empty)1000 mm/s / 1200 mm/s
Positioning Accuracy± 10 mm (0.39")
Positioning Angle Accuracy± 1°
Repeated Positioning Accuracy± 10 mm (0.39")
Max. Gradeability (Full/Empty)3%/5%
Lifting Fork Speed (Full/Empty)100 mm/s / 135 mm/s
Lowering Fork Speed (Full/Empty)130 mm/s / 100 mm/s
Motion MethodSteering wheel drive; support forward, backward, arc motion and rotation on site.
Battery Performance
Rated Voltage48 V
Capacity70 Ah
Charging Cycle1500 times (for fully charging and discharging)
Run Time6 h to 8 h
Charging Time≤ 2 h (for fully charging and discharging)
Charging PositionSide
Safety Protection
Laser Obstacle AvoidanceSupport
RecorderOptional
Bumper StripSupport
Pallet In-Position DetectionSupport
Fork Collision DetectionSupport
Emergency Stop ButtonSupport
Sound and Light AlarmSupport
1 h 5 1 h
5 1 h3 h c

Downloads

Datasheets, drawings and manuals — all in one place.

MR-F4-1000-C(HI)_datasheet_20240407.pdfPDF · 697.3 KB
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items
