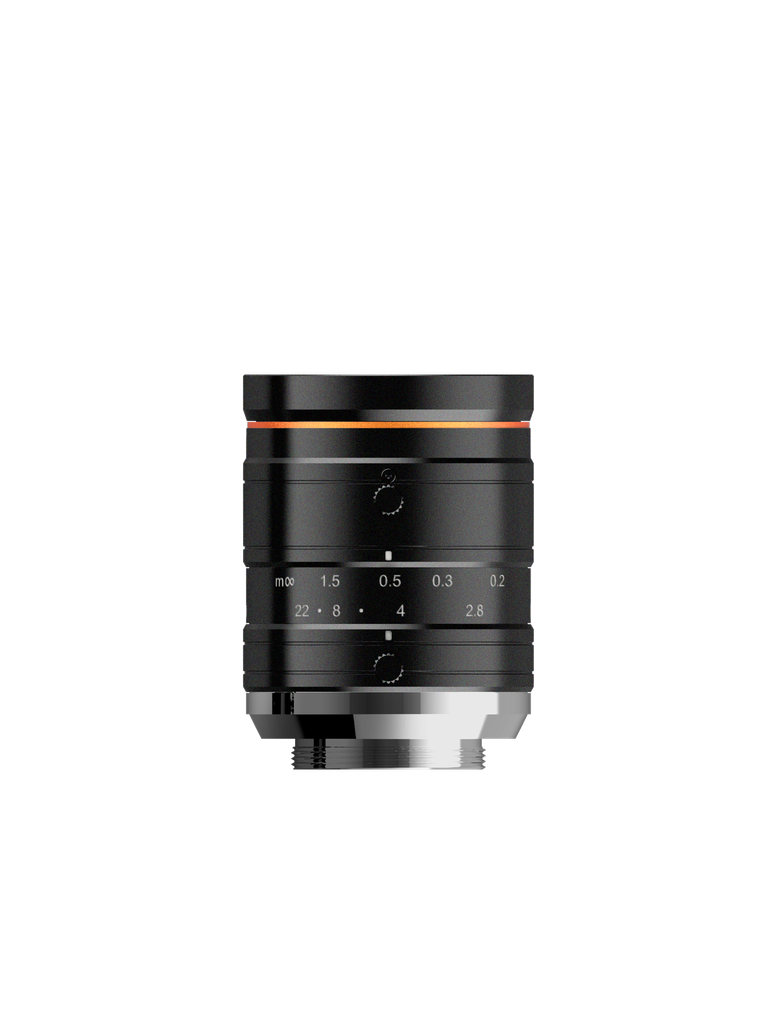

Hikrobot MVL-KF3528M-12MPE
346.25 €
346.25 €
kr 2,588.13
(Tax excluded)
OFFICIAL HIKROBOT PARTNERCE · EU compliant
Hikrobot MVL-KF3528M-12MPE
FA Lens
Order code
MVL-KF3528M-12MPE
Order number
102203063
Field of view
D (17.52 mm): 28.3° H (14.14 mm): 22.6° V (10.35 mm): 17°
Focal length
35 mm
Hikrobot MVL-KF3528M-12MPE is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement.
Key features
✓Ultra high resolution and consistency of image clarity
✓Super high image peripheral brightness ratio
✓Lower distortion
✓Excellent optical properties are maintained at different object distances
Applications & Industries
What you can solve with this product:
Specifications
Performance
Focal length35 mm
F-numberF2.8 to F22
Image sizeØ17.6 mm (1.1")
Distortion0.02%
Minimum object distance0.2 m
Field of viewD (17.52 mm): 28.3° H (14.14 mm): 22.6° V (10.35 mm): 17°
Mechanical
Iris controlManual
Focus controlManual
Filter threadM35.5 × 0.5
MountC-mount
Flange back length17.526 mm
DimensionØ38 mm × 47.6 mm (Ø1.5" x 1.9")
Weight107 g (0.2 lb.)
Temperature–10°C to 50°C (14 °F to 122 °F)
General
CertificationRoHS 2.0
