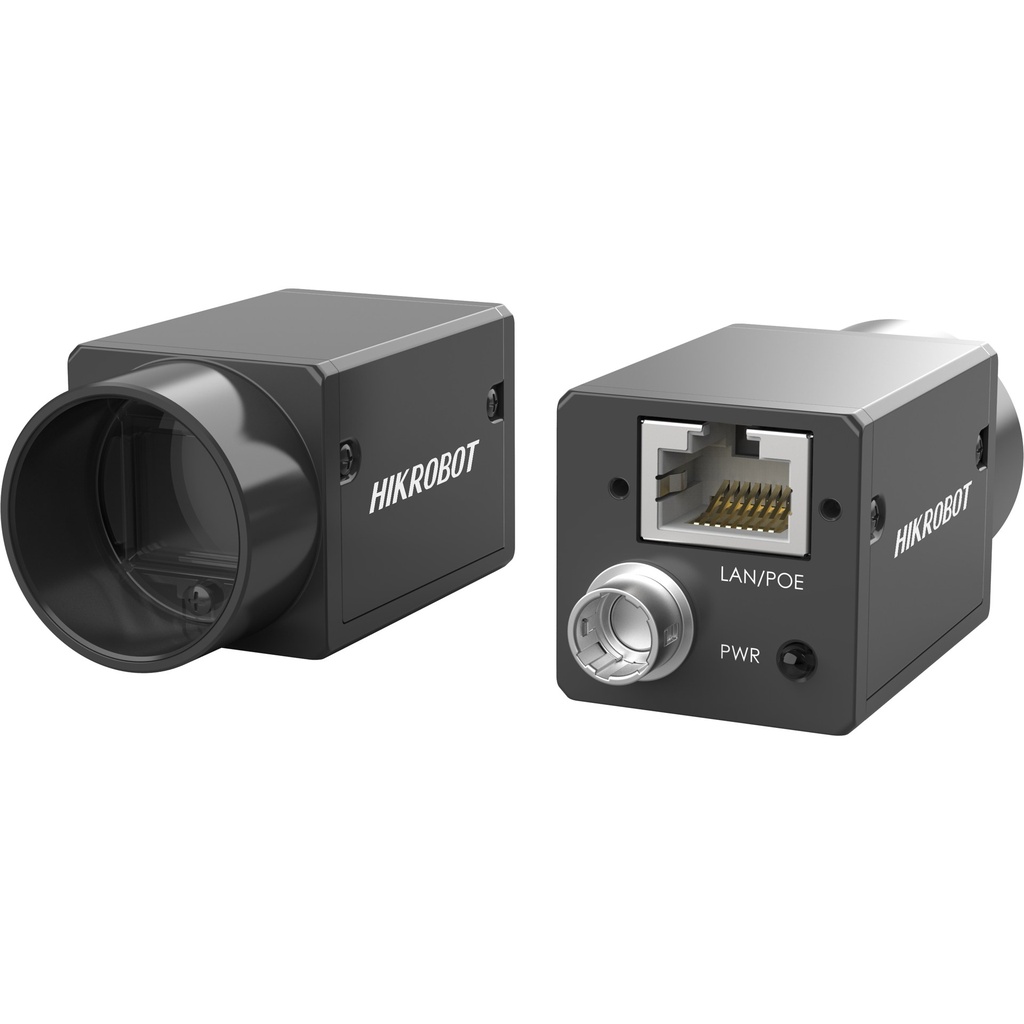

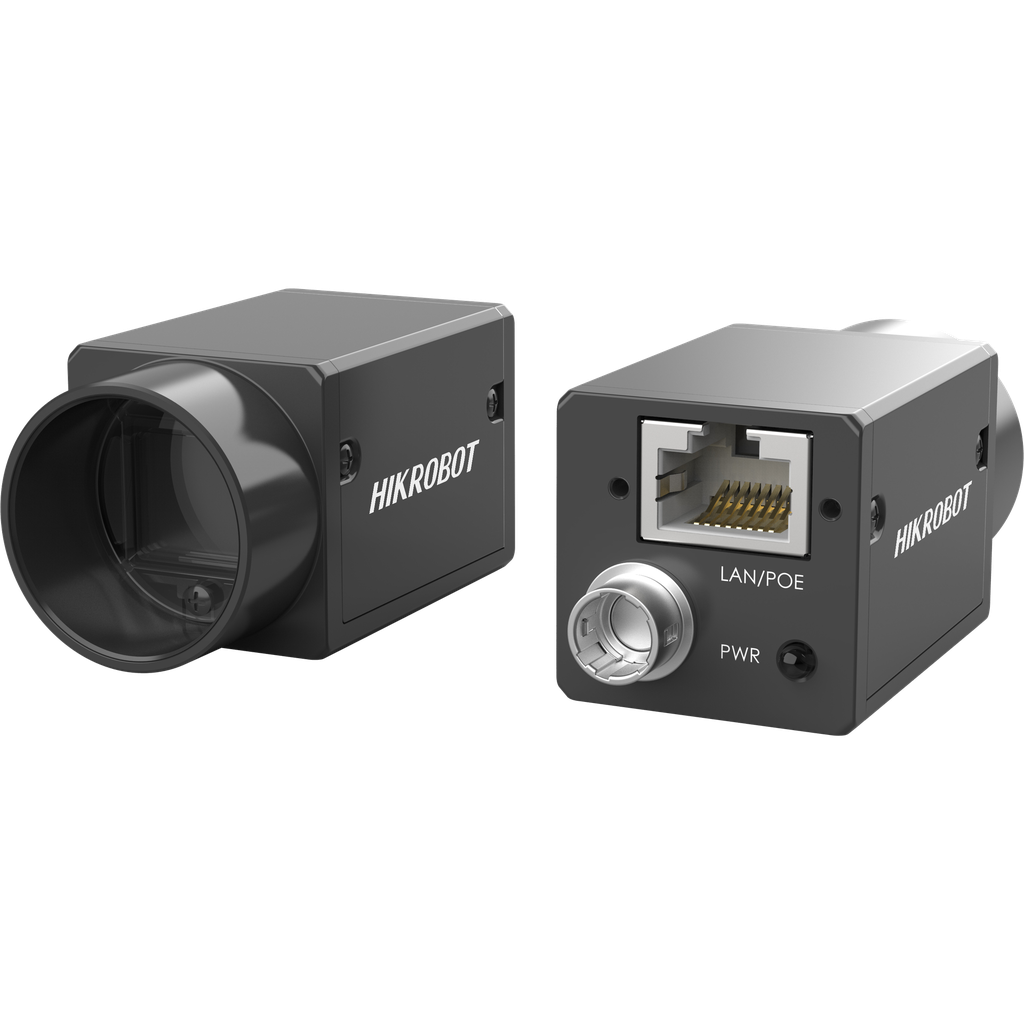

Hikrobot MV-CA013-20GC

Hikrobot MV-CA013-20GC — MV-CA013-20GM/GC/GN camera adopts OnSemi  Mono camera: MV-CA013-20GM PYTHON1300 sensor to provide high-quality image. It uses  Color camera: MV-CA013-20GC GigE interface to transmit non-compressed images in real  Near-infrared camera: MV-CA013-20GN time with max. frame rate reaching 90 fps. Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CA013-20GC - Datasheet.pdf MV-CA013-20GC - Drawing.pdf MV-CA013-20GC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA013-20GC

CA Area Scan Camera

Order code
MV-CA013-20GC
Order number
306300064
Resolution
1280 × 1024
Frame rate
90 fps @ 1280 × 1024
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
4.8 μm × 4.8 μm

Hikrobot MV-CA013-20GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
✓Up to 128 MB local memory for burst transmission and retransmission.
✓Supports hardware trigger, software trigger, etc.
✓Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackagingMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelOnSemi PYTHON1300
Pixel size4.8 μm × 4.8 μm
Sensor size1/2"
Resolution1280 × 1024
Max. frame rate90 fps @ 1280 × 1024
Dynamic range59.6 dB
SNR39.8 dB
Gain0 dB to 15 dB
Exposure time62 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8
BinningSupports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Image buffer128 MB
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply12 VDC, supports PoE
Power consumptionTyp. 2.7 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 68 g (0.15 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
