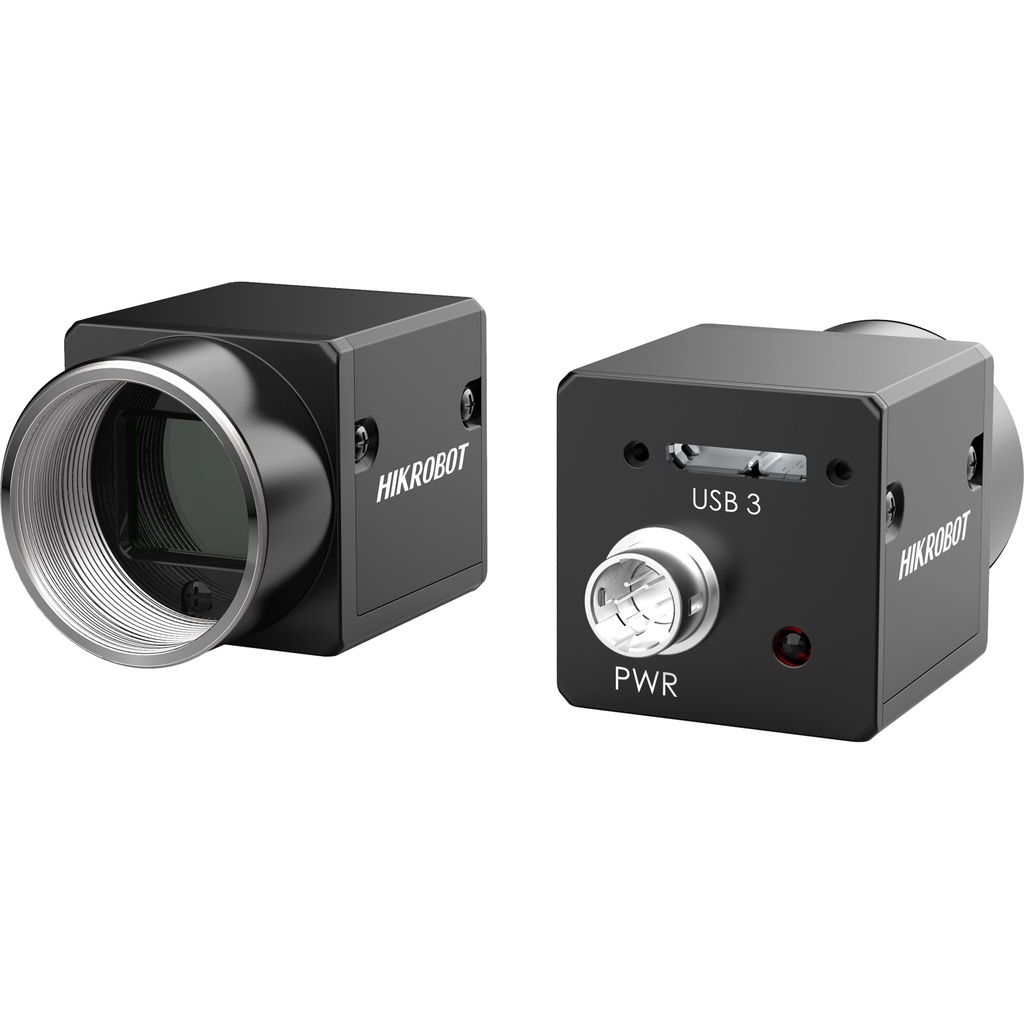

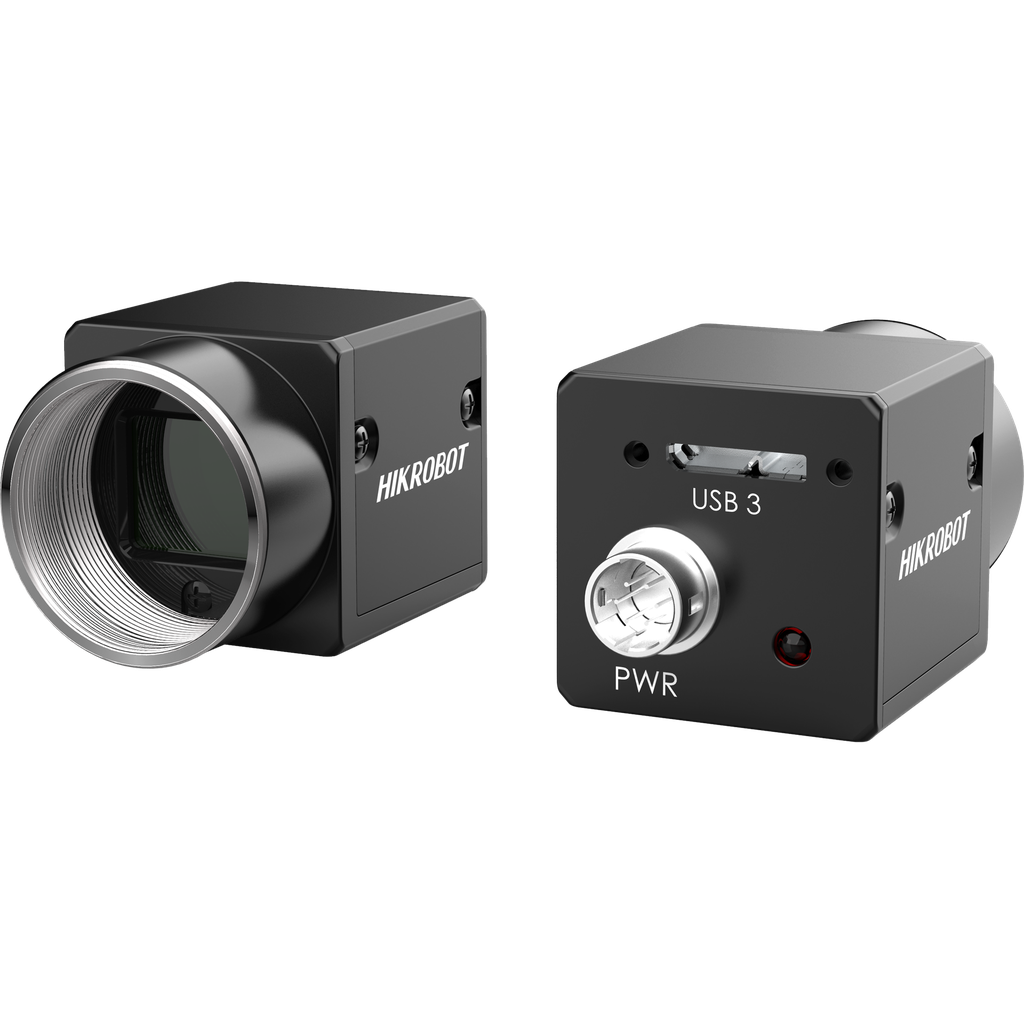

Hikrobot MV-CA003-21UC

Hikrobot MV-CA003-21UC — MV-CA003-21UM/UC camera adopts PYTHON300 sensor  Mono camera : MV-CA003-21UM to provide high-quality image. It uses USB3.0 interface to  Color camera: MV-CA003-21UC transmit non-compressed images in real time, and its max. Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CA003-21UC - Datasheet.pdf MV-CA003-21UC - Drawing.pdf MV-CA003-21UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA003-21UC

CA Area Scan Camera

Order code
MV-CA003-21UC
Order number
306300239
Resolution
640 × 480
Frame rate
814.5 fps @ 640 × 480
Interface
USB3.0, compatible with USB2.0
Pixel size
4.8 μm × 4.8 μm

Hikrobot MV-CA003-21UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
✓Supports hardware triggering, software triggering and free run mode.
✓Adopts M2 screw holes for securing cable that connects USB3.0 interface.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogisticsPackagingMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelPYTHON300
Pixel size4.8 μm × 4.8 μm
Sensor size1/4"
Resolution640 × 480
Max. frame rate814.5 fps @ 640 × 480
Dynamic range59 dB
SNR39.9 dB
Gain0 dB to 15 dB
Exposure time40 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422_YUYV_Packed, YUV 422 Packed, RGB8, BGR8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Image buffer128 MB
Electrical feature
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Power supply12 VDC, supports USB3.0 power supply
Power consumptionTyp. 3.3 W @ 5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 56 g (0.12 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software compatible with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
