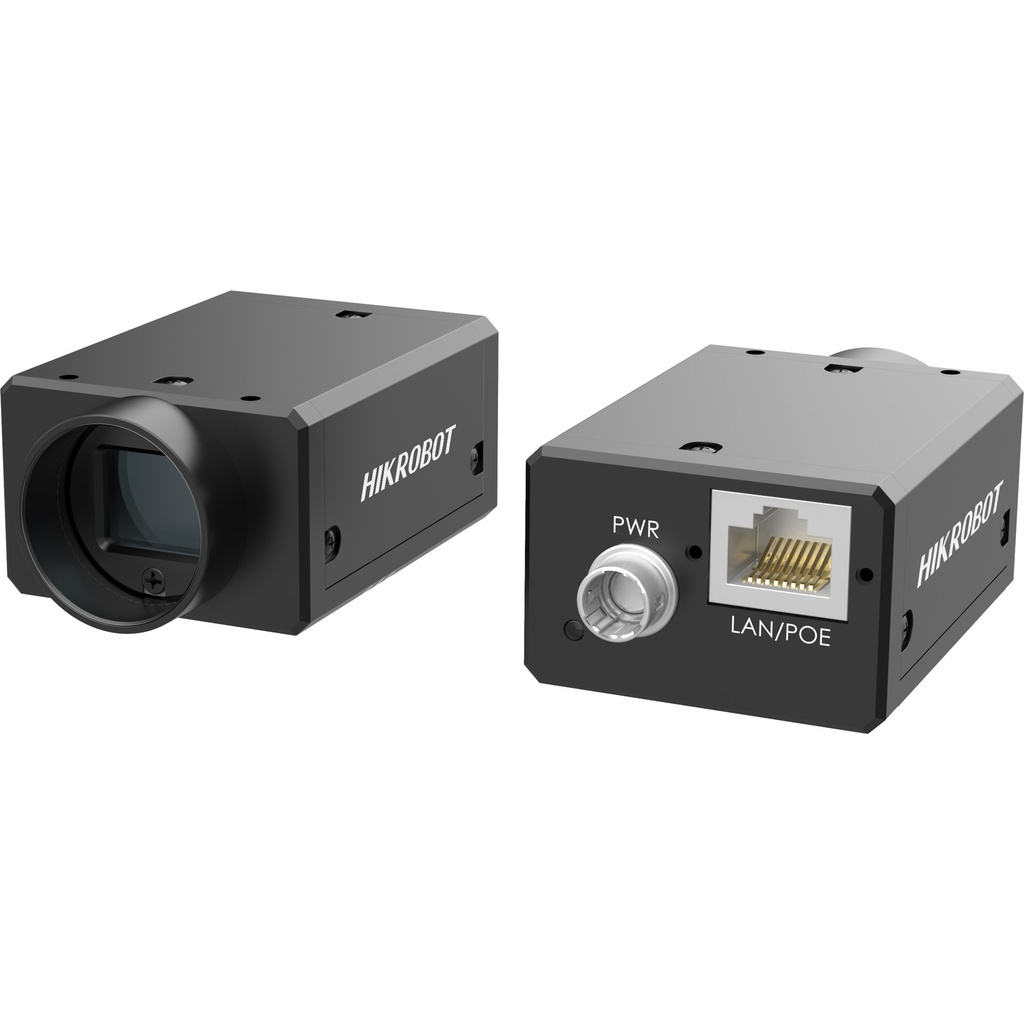

Hikrobot MV-CE200-10GM

CE Area Scan Camera

Order code
MV-CE200-10GM
Order number
306300247
Resolution
5472 × 3648
Frame rate
5.9 fps @ 5472 × 3648
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
2.4 μm × 2.4 μm

Hikrobot MV-CE200-10GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Up to 128 MB local memory for burst transmission and retransmission.
✓Supports auto exposure control, LUT, Gamma correction, etc.
✓Supports hardware trigger, software trigger, etc.
✓Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorPackagingMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX183
Pixel size2.4 μm × 2.4 μm
Sensor size1"
Resolution5472 × 3648
Max. frame rate5.9 fps @ 5472 × 3648
Dynamic range65.5 dB
SNR41.5 dB
Gain0 dB to 20 dB
Exposure time46 μs to 2 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset
MonoMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationNot support
Reverse imageSupports horizontal reverse image output
Image buffer128 MB
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply12 VDC, supports PoE
Power consumptionTyp. 3.1 W@12 VDC
Mechanical
Dimension44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
