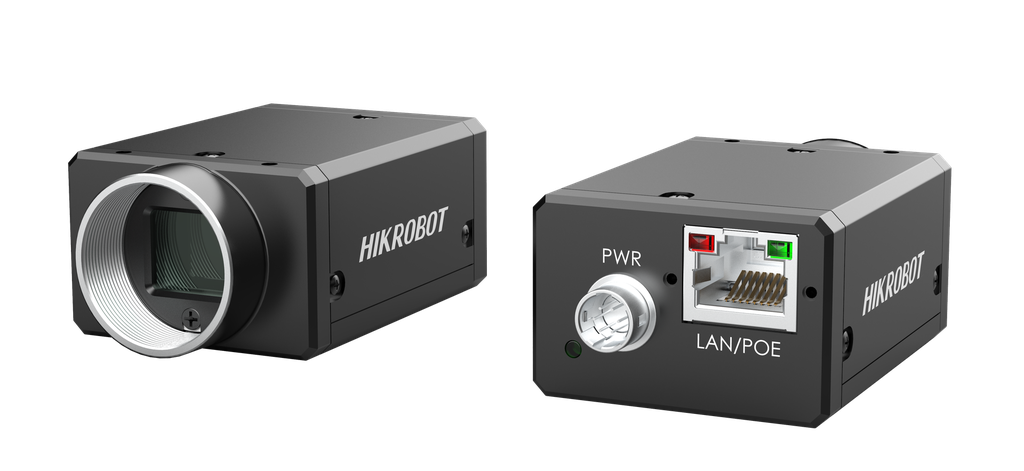

Hikrobot MV-CH089-10GM

Hikrobot MV-CH089-10GM

Hikrobot MV-CH089-10GM — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine product, supplied by ZTEC.

2,762.15 € 2,762.15 €
kr 20,647.93
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH089-10GM

CH

Resolution
4096 × 2160
Frame rate
13 fps @4096 × 2160
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
3.45 µm × 3.45 µm

Hikrobot MV-CH089-10GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, global shutter
Sensor modelSony® IMX267
Sensor size1"
Pixel size3.45 µm × 3.45 µm
Resolution4096 × 2160
Max. frame rate13 fps @4096 × 2160
Mono/colorMono
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Lens mountC-Mount
Dimension44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
CertificationCE-RoHS;FCC-SDoC;CE-EMC;WEEE;REACH SVHC;KC
SAP Code of Substitute Product306302548
