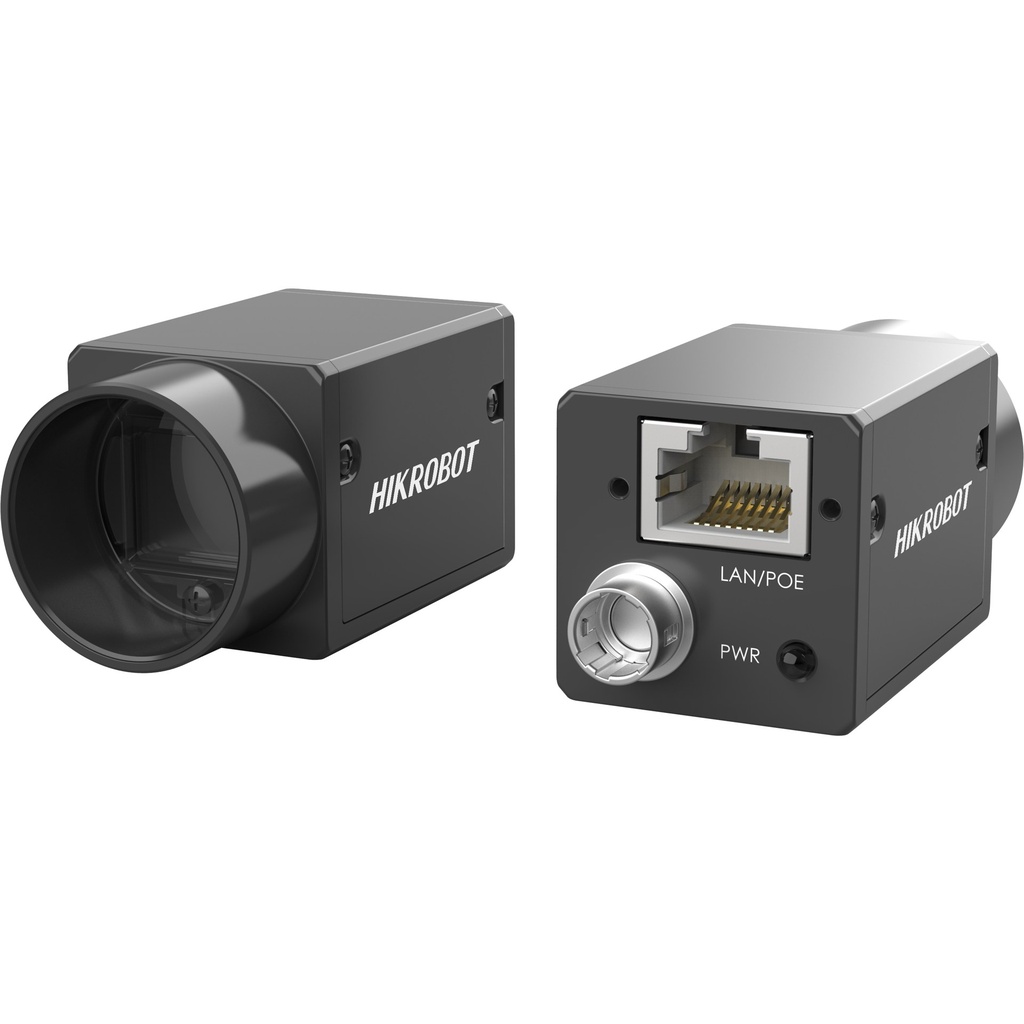

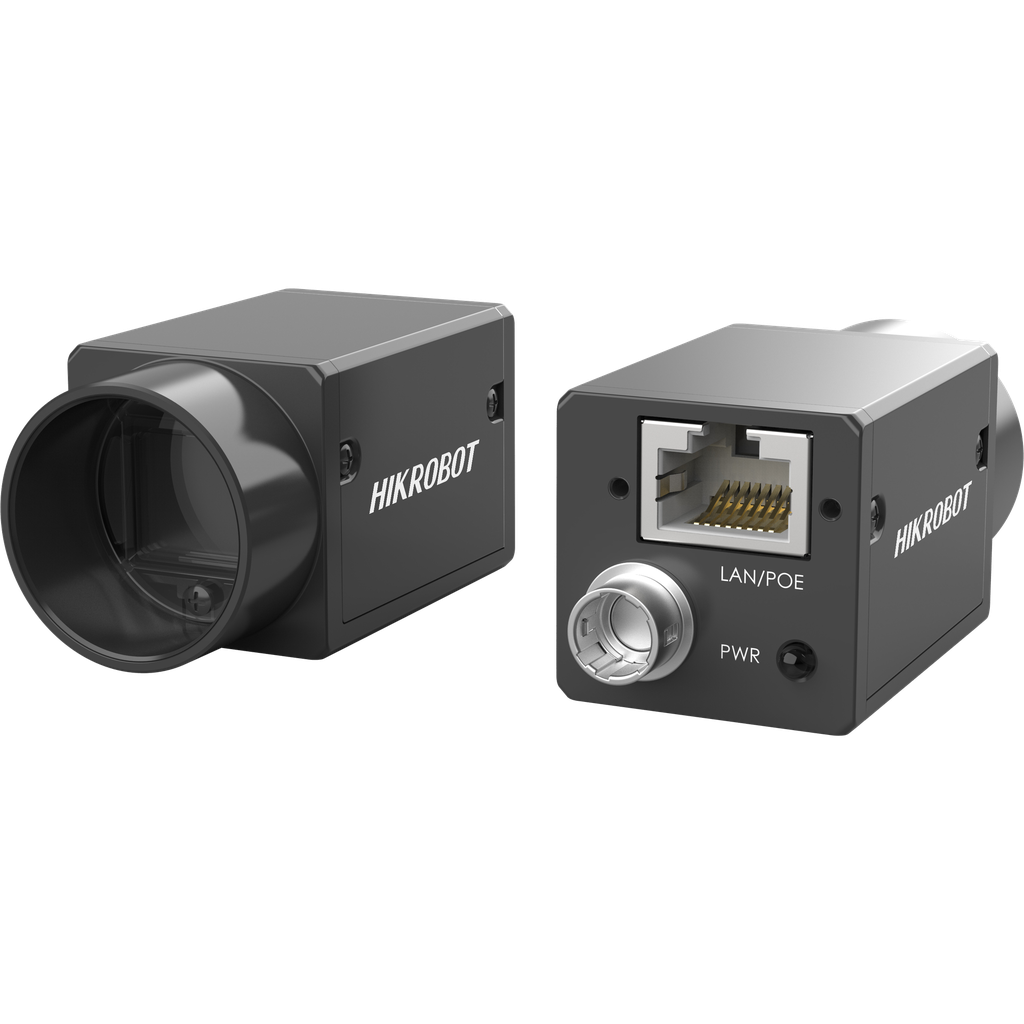

Hikrobot MV-CA032-10GC

CA Area Scan Camera

Order code
MV-CA032-10GC
Order number
306300311
Resolution
2048 × 1536
Frame rate
37.5 fps @ 2048 × 1536
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
3.45 μm x 3.45 μm

Hikrobot MV-CA032-10GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
✓Up to 128 MB local memory for burst transmission and retransmission.
✓Supports hardware trigger, software trigger, etc.
✓Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackagingMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony IMX265
Pixel size3.45 μm x 3.45 μm
Sensor size1/1.8"
Resolution2048 × 1536
Max. frame rate37.5 fps @ 2048 × 1536
Dynamic range73 dB
SNR40 dB
Gain0 dB to 20 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 2 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Image buffer128 MB
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input x 1 (Line0), opto-isolated output x 1(Line1), and bi-directional non-isolated I/O x 1 (Line2)
Power supply12 VDC, supports PoE
Power consumptionTyp. 3.5 W@12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 68 g (0.15 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
