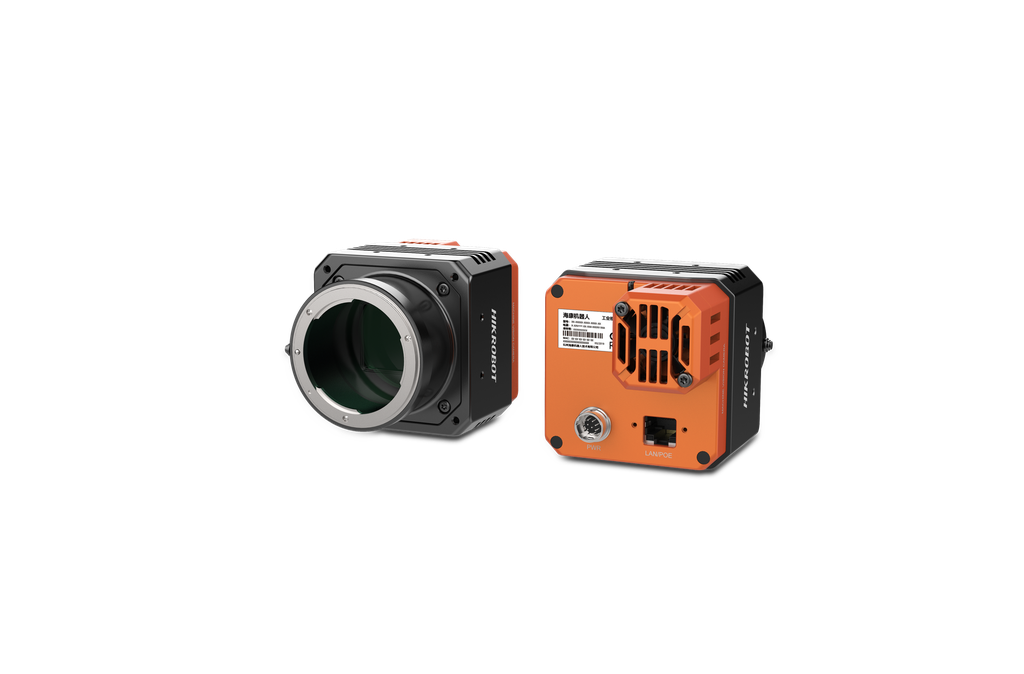

Hikrobot MV-CH250-21GM-F-NF

Hikrobot MV-CH250-21GM-F-NF — MV-CH250-21GM/GC camera adopts OnSemi PYTHON25K  M58-mount with fan, mono camera: MV- sensor to provide high-quality image. It uses GigE interface CH250-21GM-M58S-NF to transmit non-compressed images in real time with max.  F-mount with fan, mono camera: MV-CH250- frame rate reaching 4.64 fps. 21GM-F-NF  M58-mount with fan, color camera: MV-. Genuine product, supplied by ZTEC.

11,442.75 € 11,442.75 €
kr 85,541.40
(Tax excluded)
Contact Us
Documents
MV-CH250-21GM-F-NF - Datasheet.pdf MV-CH250-21GM-F-NF - Drawing.pdf MV-CH250-21GM-F-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH250-21GM-F-NF

CH Area Scan Camera

Order code
MV-CH250-21GM-F-NF
Order number
306300866
Resolution
5120 × 5120
Frame rate
4.64 fps @5120 × 5120
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
4.5 μm × 4.5 μm

Hikrobot MV-CH250-21GM-F-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
✓Adopts GigE interface providing max. transmission distance of 100 meters without relay.
✓Adopts local memory for burst transmission and retransmission.
✓Compact design with mounting holes on the up and bottom panels for flexible mounting.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelOnSemi PYTHON25K
Pixel size4.5 μm × 4.5 μm
Sensor size23 mm × 23 mm
Resolution5120 × 5120
Max. frame rate4.64 fps @5120 × 5120
Dynamic range58 dB
SNR41 dB
Gain0 dB to 15 dB
Exposure time80 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1, and RS-485 × 1
Power supply12 VDC
Power consumptionTyp. 6.7 W@12 VDC
Mechanical
Lens mountF-mount, optical back focal length 46.5 mm (1.8")
DimensionF-mount with fan: 74 mm × 74 mm × 78.7 mm (2.9" × 2.9" × 3.1")
WeightF-mount with fan: < 600 g (1.3 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
