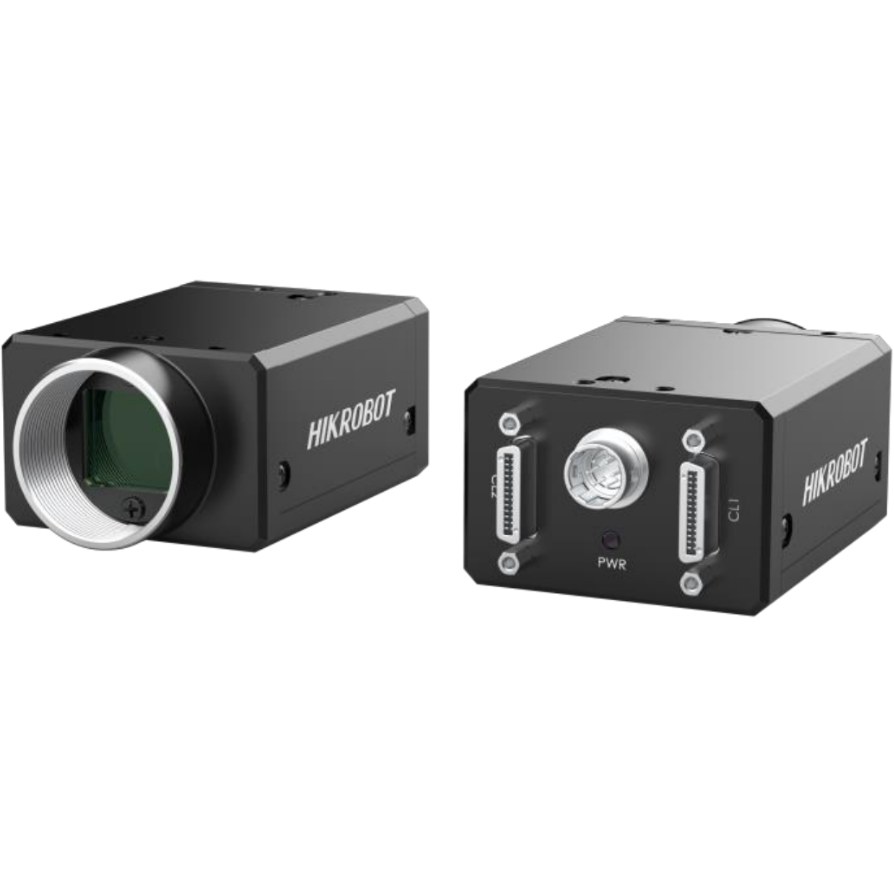

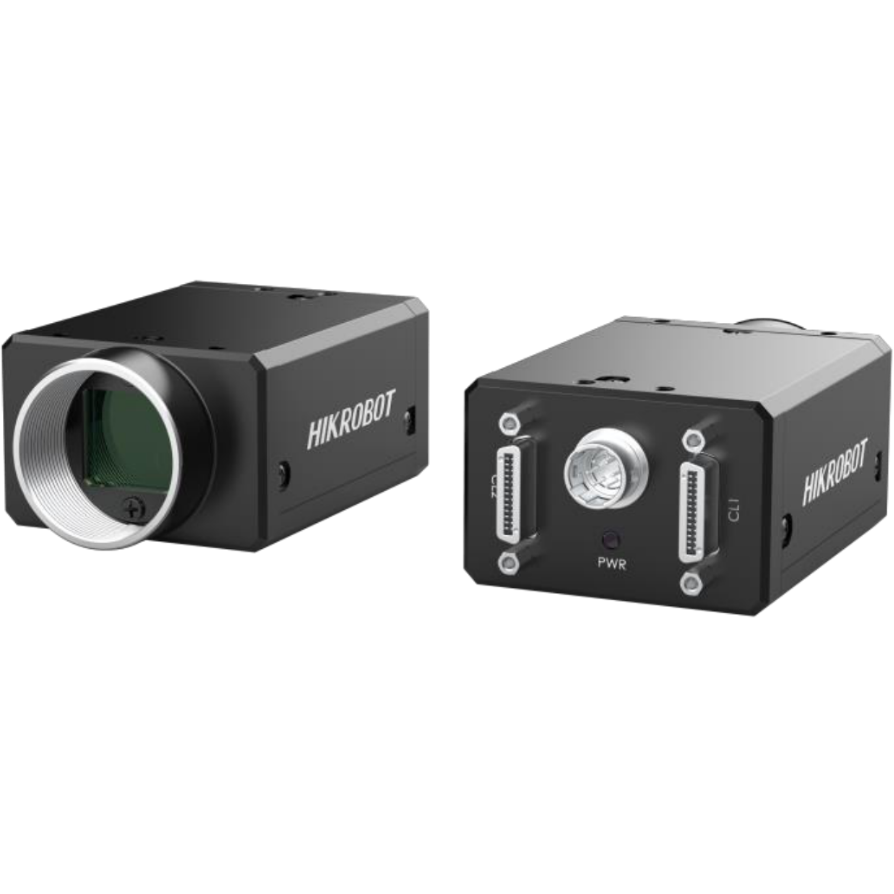

Hikrobot MV-CH050-10CC

Hikrobot MV-CH050-10CC — MV-CH050-10CM/CC camera adopts Sony® IMX250 sensor to  Mono camera: MV-CH050-10CM provide high-quality image. It uses Camera Link interface to  Color camera: MV-CH050-10CC transmit non-compressed images in real time with max. frame rate Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH050-10CC - Datasheet.pdf MV-CH050-10CC - Drawing.pdf MV-CH050-10CC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH050-10CC

CH Area Scan Camera

Order code
MV-CH050-10CC
Order number
306300884
Resolution
2432 × 2048
Frame rate
140 fps @2432 × 2048
Interface
Camera Link with SDR interface
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CH050-10CC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range, and high-quality image.
✓Resolution of 2432 × 2048 and pixel size of 3.45 μm × 3.45 μm.
✓Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
✓Adopts compact design with mounting holes for flexible mounting.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX250
Pixel size3.45 μm × 3.45 μm
Sensor size2/3"
Resolution2432 × 2048
Max. frame rate140 fps @2432 × 2048
Configuration modeBase, Medium, Full, 80-bit
Tap geometry1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y
Tap number2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock60 MHz, 70 MHz, 85 MHz
Dynamic range75.4 dB
SNR40 dB
Gain0 dB to 17 dB
Exposure time15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer RG 8/10/12, RGB 8
BinningNot support
DecimationNot support
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceCamera Link with SDR interface
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC
Power consumptionTyp. 3.41 W@12 VDC
Mechanical
Dimension44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
General
Client softwareMVS or frame grabber software meeting with GenlCam Protocol
Operating system32/64-bit Windows XP/7/10
CompatibilityCamera Link V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
