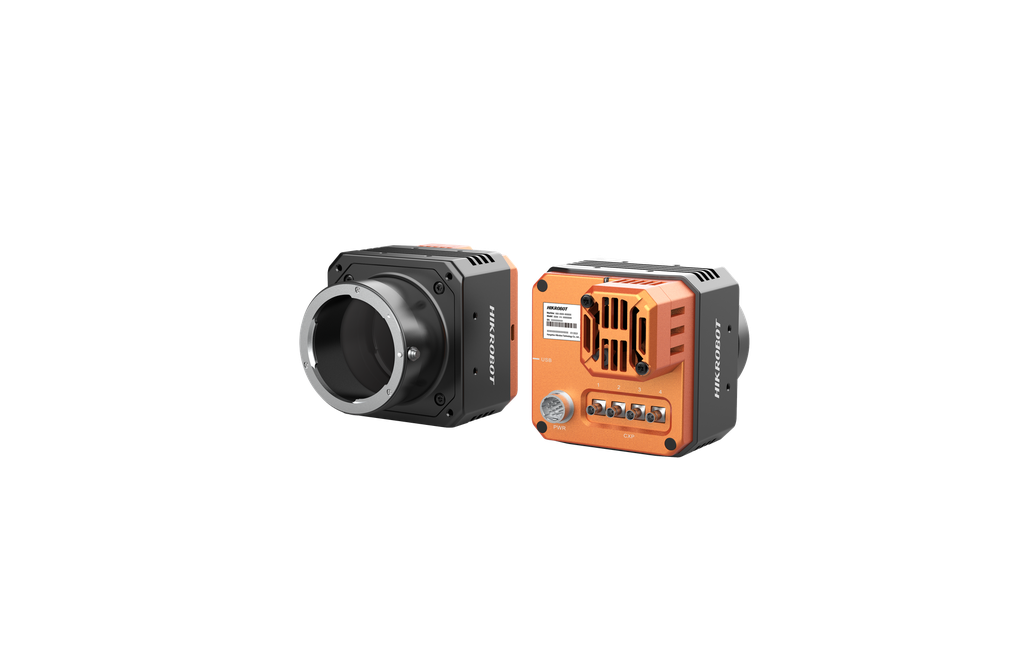

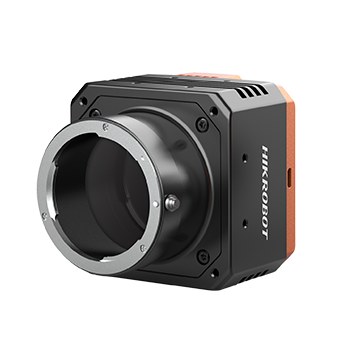

Hikrobot MV-CH650-90XM-F-NF

Hikrobot MV-CH650-90XM-F-NF — MV-CH650-90XM/XC camera adopts Gpixel GMAX3265  M58-mount with fan, mono: MV-CH650-90XM- sensor and CXP-6 interface to provide high-quality and M58S-NF non-compressed images in real time. Its max. frame  F-mount with fan, mono: MV-CH650-90XM-F-NF rate reaches up to 31.5 fps in full resolution.  M58-mount with fan, color: MV-CH650-90XC- M58S-NF. Genuine product, supplied by ZTEC.

18,939.72 € 18,939.72 €
kr 141,585.77
(Tax excluded)
Contact Us
Documents
MV-CH650-90XM-F-NF - Datasheet.pdf MV-CH650-90XM-F-NF - Drawing.pdf MV-CH650-90XM-F-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH650-90XM-F-NF

CH Area Scan Camera

Order code
MV-CH650-90XM-F-NF
Order number
306301118
Resolution
9344 × 7000
Frame rate
31.5 fps @ 9216 × 7000
Interface
CoaXPress with DIN interface
Pixel size
3.2 μm × 3.2 μm

Hikrobot MV-CH650-90XM-F-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 9344 × 7000, and pixel size of 3.2 µm × 3.2 µm.
✓Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality image.
✓Adopts CXP-6 interface to transmit data.
✓Compatible with CoaXPress Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3265
Pixel size3.2 μm × 3.2 μm
Sensor size29.9 mm × 22.4 mm
Resolution9344 × 7000
Max. frame rate31.5 fps @ 9216 × 7000
Dynamic range66 dB
SNR40 dB
Gain1.25x to 6x
Exposure time14 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 ×1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceCoaXPress with DIN interface
Digital I/O12-pin P10 connector provides I/O: opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply9 VDC to 24 VDC
Power consumptionTyp. 10.5 W @ 24 VDC
Mechanical
Lens mountF-mount, flange focal length 46.5 mm
DimensionF-mount with fan: 74 mm × 74 mm × 76.4 mm (2.9" × 2.9" × 3.0")
WeightF-mount with fan: approx. 500 g (1.1 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareFrame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
