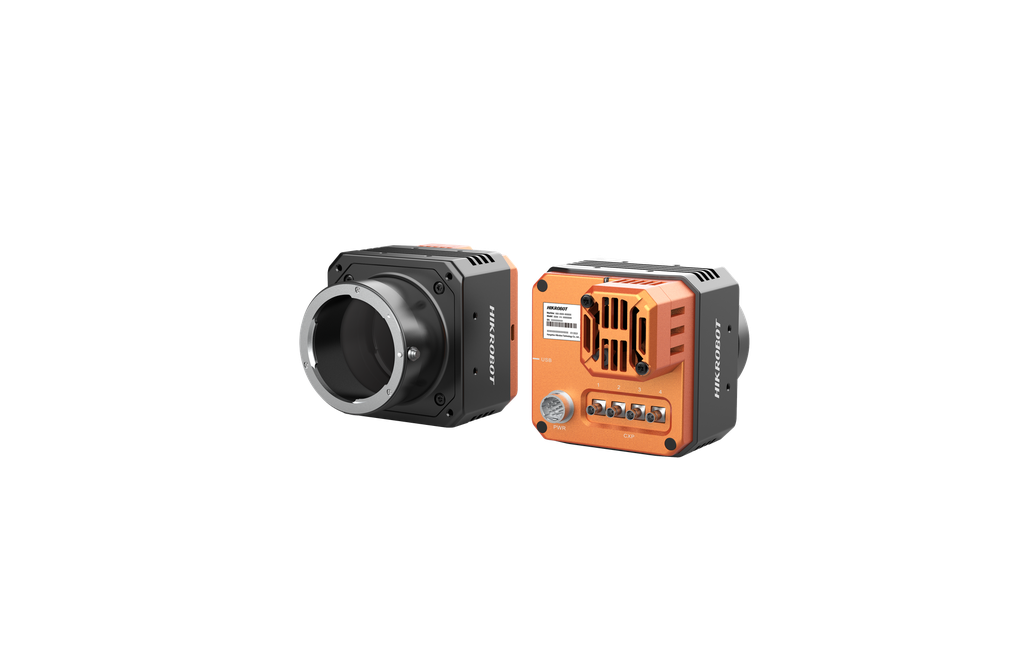

Hikrobot MV-CH650-90XM-M58S-NF

Hikrobot MV-CH650-90XM-M58S-NF

Hikrobot MV-CH650-90XM-M58S-NF — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine product, supplied by ZTEC.

18,940.48 € 18,940.48 €
kr 141,585.77
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH650-90XM-M58S-NF

CH

Resolution
9344 × 7000
Frame rate
31.5 fps @9344 × 7000
Interface
CoaXPress with DIN interface
Pixel size
3.2 µm × 3.2 µm

Hikrobot MV-CH650-90XM-M58S-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3265
Sensor size29.9 mm × 22.4 mm
Pixel size3.2 µm × 3.2 µm
Resolution9344 × 7000
Max. frame rate31.5 fps @9344 × 7000
Mono/colorMono
Data interfaceCoaXPress with DIN interface
Lens mountM58-mount: optical back focal length: 11.48 mm (0.5")
DimensionM58-mount with fan: 74 mm × 74 mm × 70.4 mm (2.9" × 2.9" × 2.8")
CertificationCE-RoHS;FCC-SDoC;CE-EMC;UL;KC
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.
