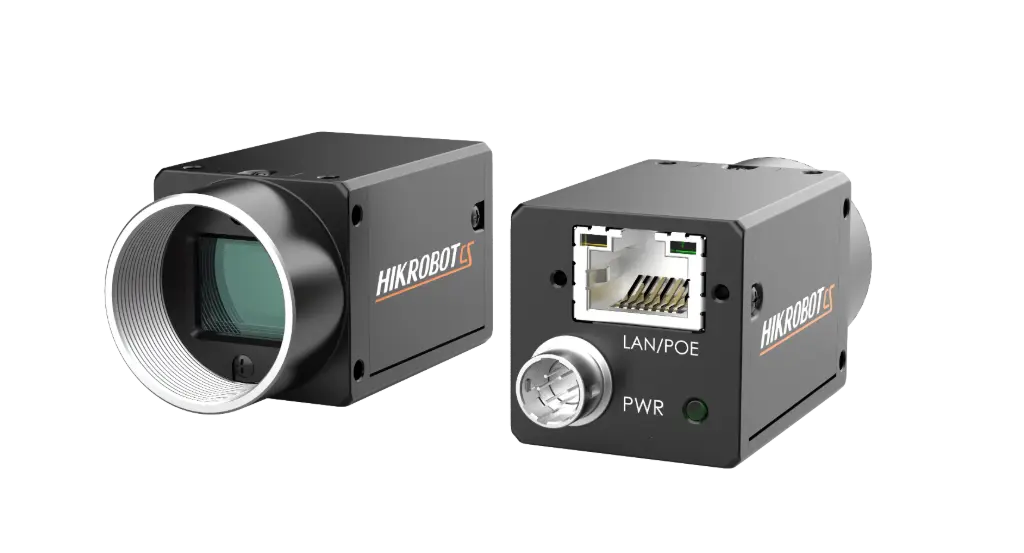

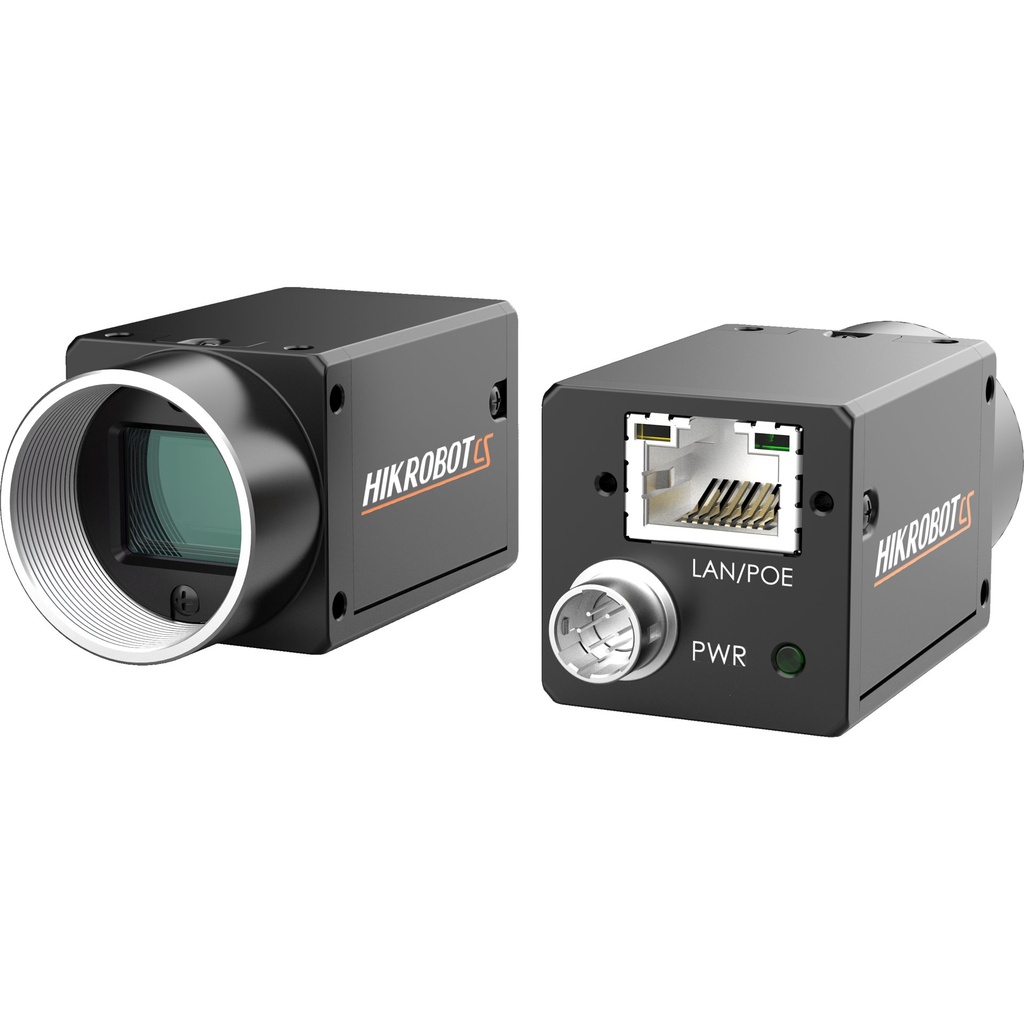

Hikrobot MV-CS050-10GM-PRO

Hikrobot MV-CS050-10GM-PRO — With GigE interface, MV-CS050-10GM/GC-PRO camera adopts Sony®  Mono camera: MV-CS050-10GM-PRO IMX264 sensor to provide high-quality image and transmit images in  Color camera: MV-CS050-10GC-PRO real time. Its max. frame rate can reach 24.2 fps in full resolution, and Applicable. Genuine product, supplied by ZTEC.

1,144.35 € 1,144.35 €
kr 8,554.14
(Tax excluded)
Contact Us
Documents
MV-CS050-10GM-PRO - Datasheet.pdf MV-CS050-10GM-PRO - Drawing.pdf MV-CS050-10GM-PRO - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS050-10GM-PRO

CS Area Scan Camera

Order code
MV-CS050-10GM-PRO
Order number
306301224
Resolution
2448 × 2048
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
3.45 μm × 3.45 μm
Sensor
Sony® IMX264

Hikrobot MV-CS050-10GM-PRO is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports image compression mode and noise reduction function.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX264
Pixel size3.45 μm × 3.45 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate24.2 fps @ 2448 × 2048 35.6 fps @ 2448 × 2048 (image compression mode enabled)
Dynamic range71.0 dB
SNR40 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.6 W@12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Additional specifications
Quantum efficiency64.6%
Dark noise2.1e-@10-bit
Signal-to-noise ratio39.8 dB
Saturation capacity9.6 ke-
