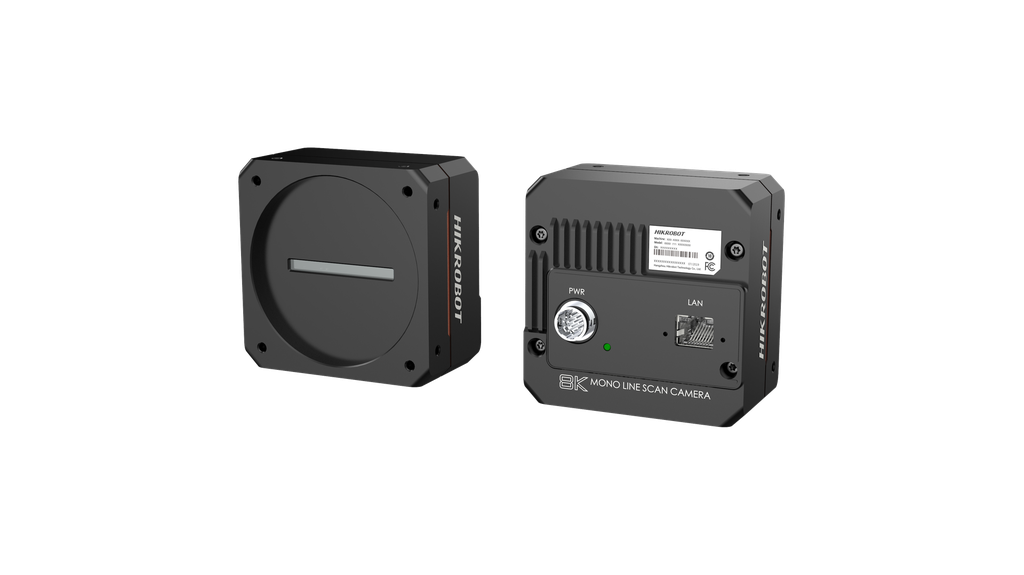

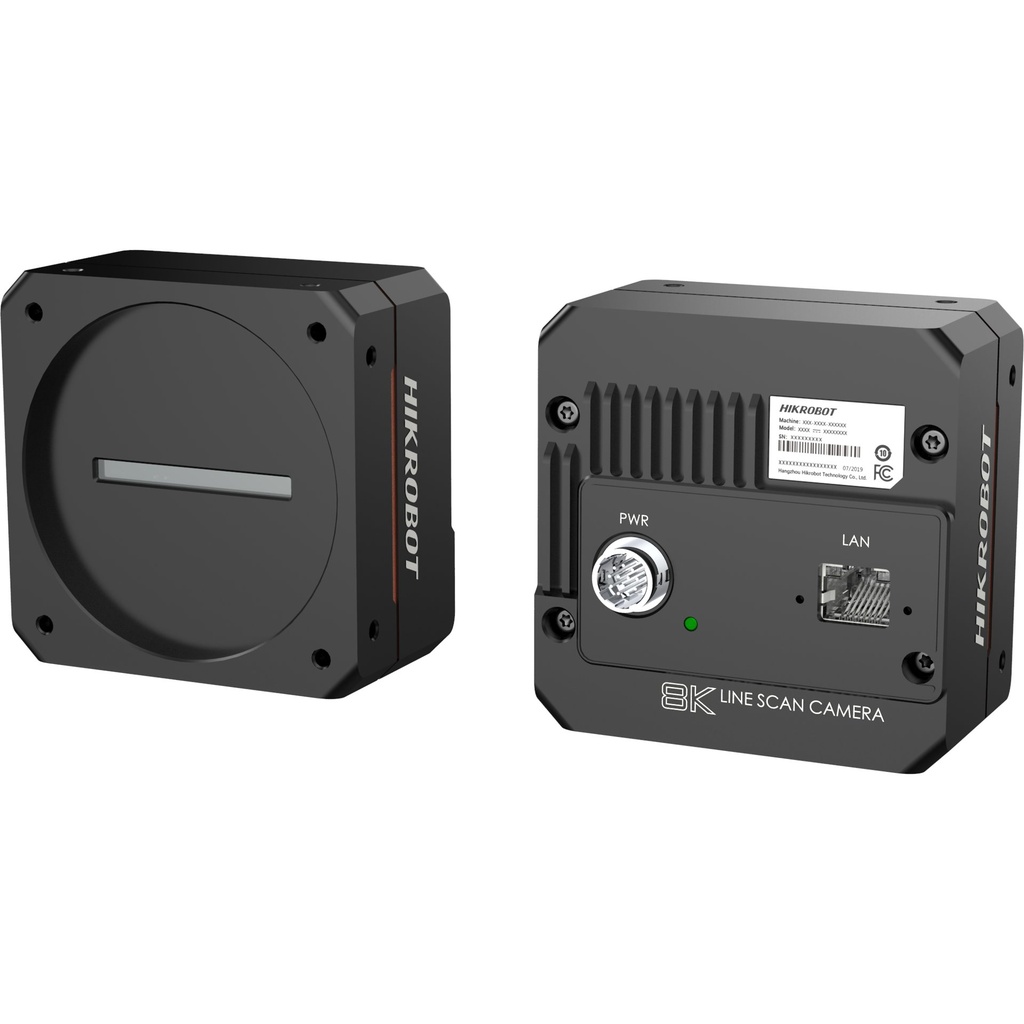

Hikrobot MV-CL086-91GC

CL Line Scan Camera

Order code
MV-CL086-91GC
Order number
306301233
Resolution
8192 × 6
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
5 μm

Hikrobot MV-CL086-91GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Supports image compression mode, TDI, trigger-width exposure, RGB true color etc.
✓Supports manual adjustment for Gamma correction, white balance, PRNUC correction, LUT, black level, space correction, etc.
✓Adopts bi-directional I/O hardware design.
✓Compact design and flexible installation.
✓Compatible with GigE Vision V2.0 and GenlCam standard.

Applications & Industries

What you can solve with this product:

Typical industries: LogisticsFood & beveragePharmaceuticalMetalworkingTextile
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS
Pixel size5 μm
Resolution8192 × 6
Image modeSupports 1-line, 2-TDI
Max. line rateStandard mode: 14 kHz @Bayer 8/Mono 8, 7 kHz @Bayer 10/Mono 10, 4.7 kHz @RGB 8/BGR 8 High-bandwidth mode: 40 kHz @Bayer 8, 20 kHz @Bayer 10, 14 kHz @RGB 8
Dynamic range54.8 dB
SNR40.3 dB
GainSupports 1.2 ×, 2.7 ×, 4.6 ×
Exposure time3 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode, and supports trigger-width exposure
MonoColor
Pixel formatMono 8/10, Bayer RG 8/10, RGB 8, BGR 8
BinningNot support
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O12-pin Hirose connector provides power and I/O: configurable input or output × 4 (Line 0/1/3/4) and support single-ended/differential
Power supply12 VDC to 24 VDC
Power consumptionTyp. 13.0 W@12 VDC
Mechanical
Lens mountM72*0.75, flange focal length 12 mm
Dimension80 mm × 80 mm × 46.3 mm (3.1" × 3.1" × 1.8")
WeightApprox. 465 g (1.0 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: -20 °C to 55 °C (-4 °F to 131 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
Humidity5% to 90% RH, non-condensing
General
Client softwareMVS or the third-party software meeting with GigE Vision protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, FCC, RoHS, KC
