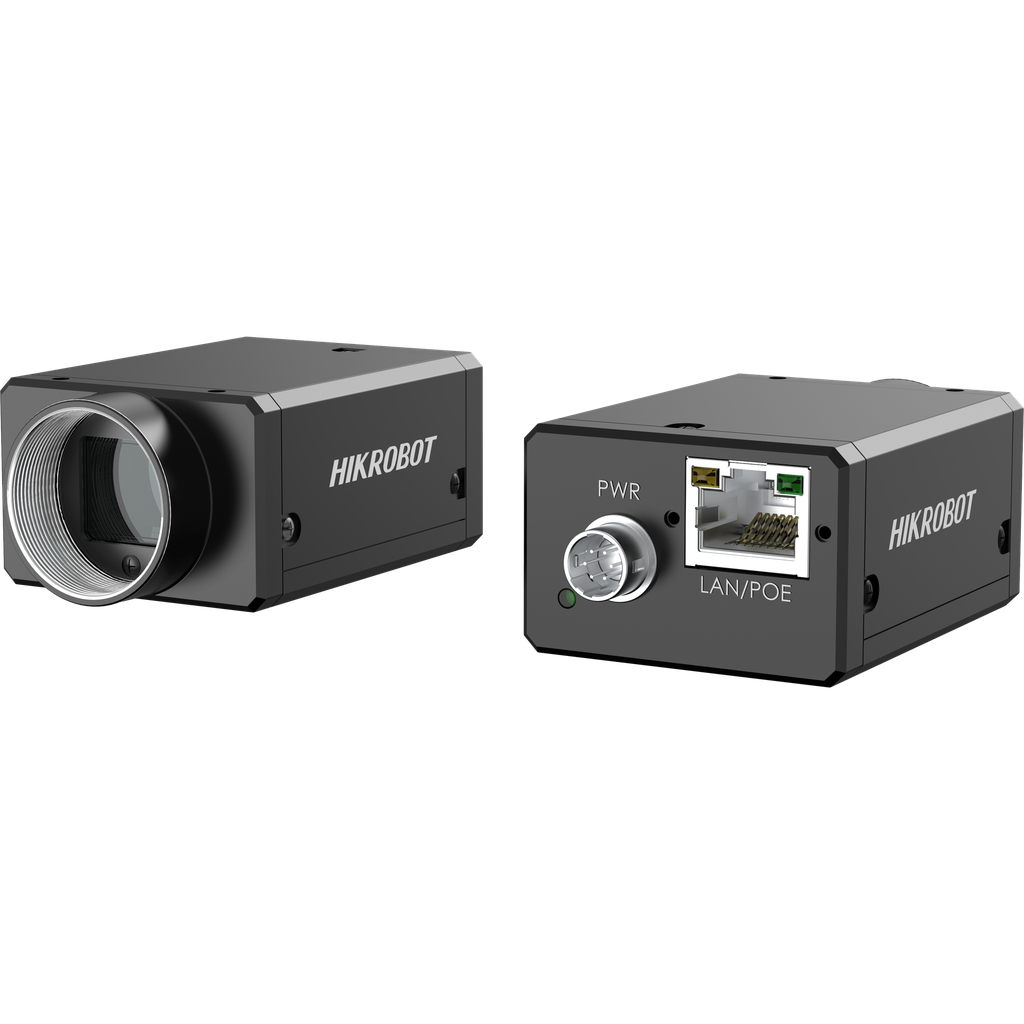

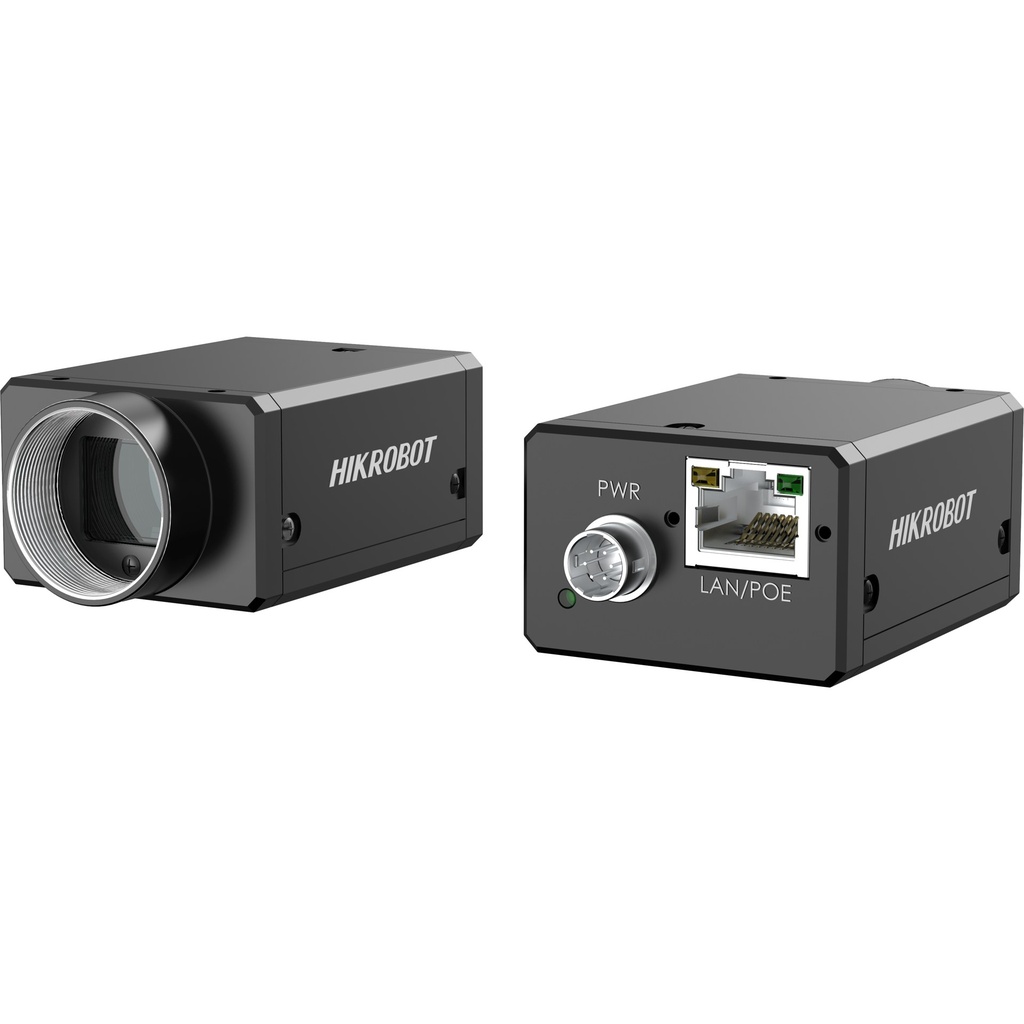

Hikrobot MV-CA017-10GM

Hikrobot MV-CA017-10GM — MV-CA017-10GM/GC camera adopts Sony® IMX432 sensor to  Mono camera: MV-CA017-10GM provide high-quality image. It uses GigE interface to transmit  Color camera: MV-CA017-10GC non-compressed images in real time, and its max. frame rate Applicable. Genuine product, supplied by ZTEC.

2,281.47 € 2,281.47 €
kr 17,054.65
(Tax excluded)
Contact Us
Documents
MV-CA017-10GM - Datasheet.pdf MV-CA017-10GM - Drawing.pdf MV-CA017-10GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA017-10GM

CA Area Scan Camera

Order code
MV-CA017-10GM
Order number
306301251
Resolution
1608 × 1104
Frame rate
68.5 fps @ 1608 × 1104
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
9 μm × 9 μm

Hikrobot MV-CA017-10GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
✓Supports 2D noise reduction function.
✓Supports high sensitivity mode and high full well mode.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX432
Pixel size9 μm × 9 μm
Sensor size1.1"
Resolution1608 × 1104
Max. frame rate68.5 fps @ 1608 × 1104
Dynamic range72.44 dB
SNR40 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 5 μs Standard exposure mode: 6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply12 VDC, supports PoE
Power consumptionTyp. 4.2 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
