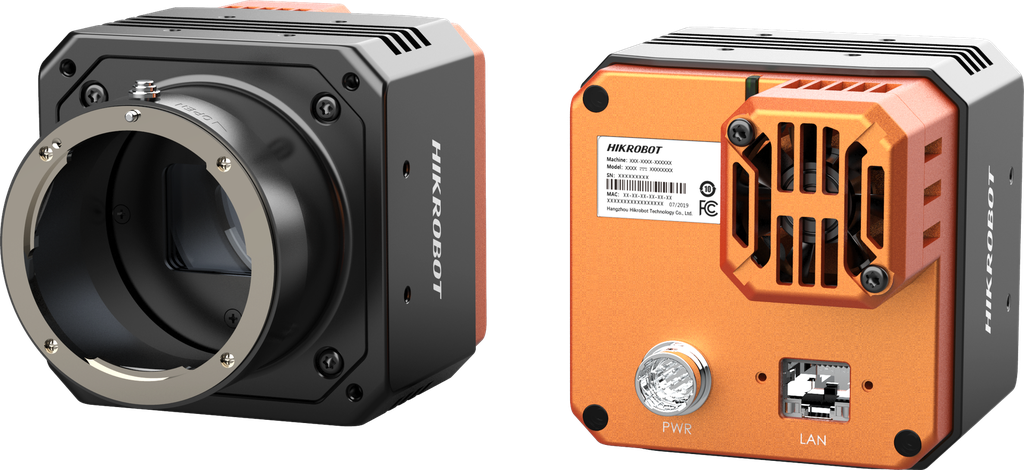

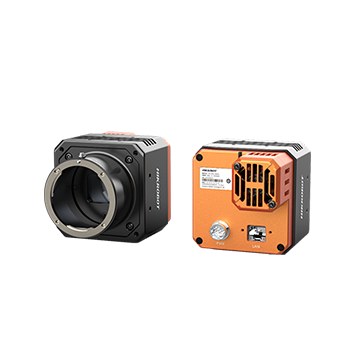

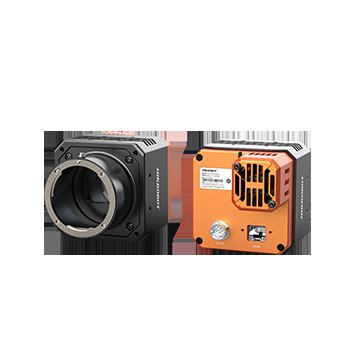

Hikrobot MV-CH650-90TM-F-NF

Hikrobot MV-CH650-90TM-F-NF — MV-CH650-90TM/TC camera adopts Gpixel GMAX3265 sensor  M58-mount with fan, mono: MV-CH650-90TM- to provide high-quality image. It uses 10 GigE interface to M58S-NF transmit non-compressed image in real time, and its max. frame  F-mount with fan, mono: MV-CH650-90TM-F-NF rate can reach 17.2 fps in full resolution.  M58-mount with fan, color: MV-CH650-90TC- M58S-NF. Genuine product, supplied by ZTEC.

18,939.47 € 18,939.47 €
kr 141,585.77
(Tax excluded)
Contact Us
Documents
MV-CH650-90TM-F-NF - CAD (RAR).rar MV-CH650-90TM-F-NF - Datasheet.pdf MV-CH650-90TM-F-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH650-90TM-F-NF

CH Area Scan Camera

Order code
MV-CH650-90TM-F-NF
Order number
306301256
Resolution
9344 × 7000
Frame rate
17.2 fps @ 9344 × 7000 Mono 8
Pixel size
3.2 μm × 3.2 μm
Sensor
Gpixel GMAX3265

Hikrobot MV-CH650-90TM-F-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 9344 × 7000, and pixel size of 3.2 μm × 3.2 μm.
✓Adopts 10 GigE interface providing max. transmission distance of 100 meters without relay.
✓Supports auto or manual adjustment for gain, exposure time, and manual adjustment for Look-Up Table (LUT), Gamma correction, etc.
✓Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3265
Pixel size3.2 μm × 3.2 μm
Sensor size29.9 mm × 22.4 mm
Resolution9344 × 7000
Max. frame rate17.2 fps @ 9344 × 7000 Mono 8
Dynamic range66 dB
SNR40 dB
Gain1.25× to 6×
Exposure time18 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply9 VDC to 24 VDC
Power consumptionTyp. 10.2 W @ 12 VDC
Mechanical
Lens mountF-mount, flange back length 46.5 mm
DimensionF-mount with fan: 74 mm × 74 mm × 84.8 mm (2.9" × 2.9" × 3.3")
WeightF-mount with fan: approx. 600 g (1.3 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
