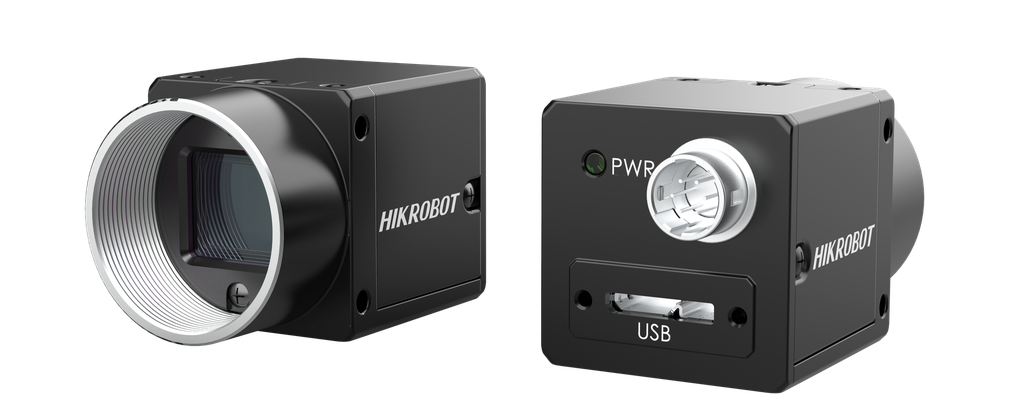

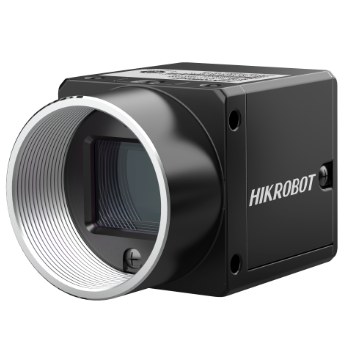

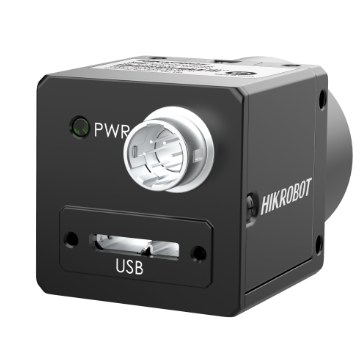

Hikrobot MV-CS060-10UC-PRO

Hikrobot MV-CS060-10UC-PRO — MV-CS060-10UM/UC-PRO camera adopts Sony® IMX178 sensor to  Mono camera: MV-CS060-10UM-PRO provide high-quality images. It uses USB3.0 interface to transmit  Color camera: MV-CS060-10UC-PRO images in real time, and its max. frame rate can reach 59.6 fps in full Applicable. Genuine product, supplied by ZTEC.

552.44 € 552.44 €
kr 4,129.58
(Tax excluded)
Contact Us
Documents
MV-CS060-10UC - CAD (RAR).rar MV-CS060-10UC - Datasheet.pdf MV-CS060-10UC - User Manual.pdf MV-CS060-10UC-PRO - Datasheet.pdf MV-CS060-10UC-PRO - Drawing.pdf MV-CS060-10UC-PRO - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS060-10UC-PRO

CS Area Scan Camera

Order code
MV-CS060-10UC-PRO
Order number
306301300
Resolution
3072 × 2048
Frame rate
59.6fps @ 3072 × 2048
Interface
USB3.0, compatible with USB2.0
Pixel size
2.4 μm × 2.4 μm

Hikrobot MV-CS060-10UC-PRO is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts Sony® IMX178 sensor to provide high sensitivity, wide dynamic range, and low noise.
✓Supports image compression mode and noise reduction function.
✓Adopts active alignment techniques for assembling.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX178
Pixel size2.4 μm × 2.4 μm
Sensor size1/1.8"
Resolution3072 × 2048
Max. frame rate59.6fps @ 3072 × 2048
Dynamic range/
SNR41.3 dB
Gain0 dB to 24 dB
Exposure time32 us to 1 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling
MonoMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Power consumptionTyp. 2.5 W@5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.18 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3.0 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Quantum efficiency/
Dark noise/
Signal-to-noise ratio/
Saturation capacity/
