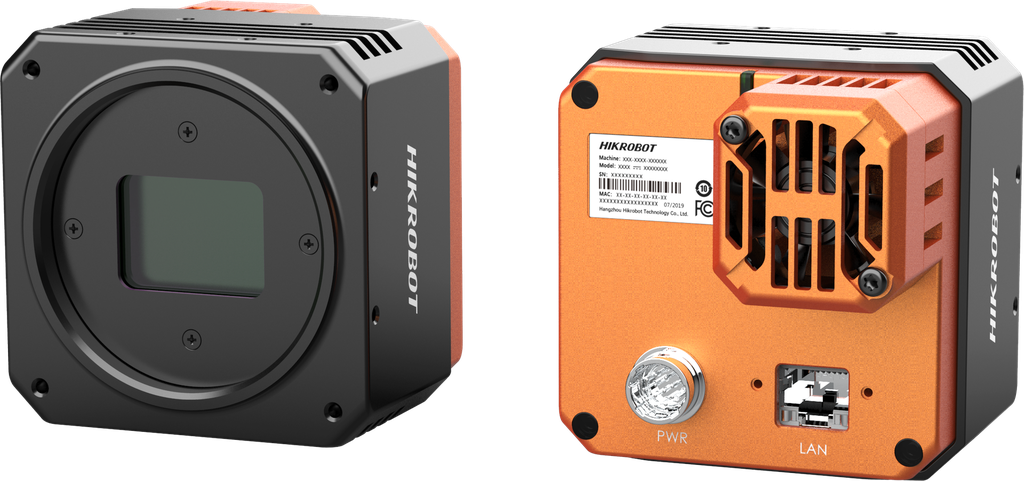

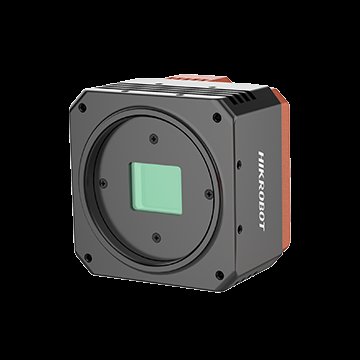

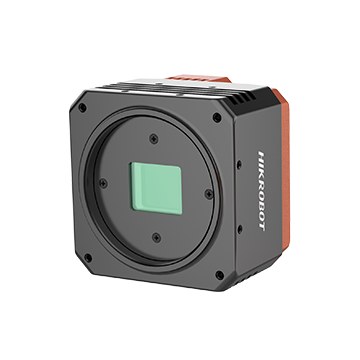

Hikrobot MV-CH250-90TM-M58S-NF

Hikrobot MV-CH250-90TM-M58S-NF — MV-CH250-90TM/TC camera adopts Gpixel GMAX0505  C-mount with fan, mono: MV-CH250-90TM- sensor to provide high-quality image. It uses 10 GigE C-NF interface to transmit non-compressed image in real time, and  M58-mount with fan, mono: MV-CH250- its max. frame rate can reach 41.5 fps in full resolution. 90TM-M58S-NF  C-mount with fan, color: MV-CH250-90TC-C-. Genuine product, supplied by ZTEC.

4,261.44 € 4,261.44 €
kr 31,856.79
(Tax excluded)
Contact Us
Documents
MV-CH250-90TM-M58S-NF - Datasheet.pdf MV-CH250-90TM-M58S-NF - Drawing.pdf MV-CH250-90TM-M58S-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH250-90TM-M58S-NF

CH Area Scan Camera

Order code
MV-CH250-90TM-M58S-NF
Order number
306301335
Resolution
5120 × 5120
Frame rate
41.5 fps @ 5120 × 5120 Mono 8
Pixel size
2.5 μm × 2.5 μm
Sensor
Gpixel GMAX0505

Hikrobot MV-CH250-90TM-M58S-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5120 × 5120, pixel size of 2.5 μm × 2.5 μm.
✓Adopts 10 GigE interface providing maximum transmission distance of 100 meters.
✓Supports adjustment for exposure time, gain, Look-Up Table (LUT), Gamma correction, etc.
✓Mounting holes on panels for flexible installation.
✓Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on protocols.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX0505
Pixel size2.5 μm × 2.5 μm
Sensor size1.1"
Resolution5120 × 5120
Max. frame rate41.5 fps @ 5120 × 5120 Mono 8
Dynamic range63 dB
SNR36 dB
Gain2.0x to 5.0x
Exposure timeUltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 9 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply9 VDC to 24 VDC
Power consumptionTyp. 9.7 W @ 12 VDC
Mechanical
Lens mountM58*0.75, flange back length 11.48 mm
Dimension74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
WeightApprox. 550 g (1.2 lb.)
Ingress protectionIP40 ( under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
