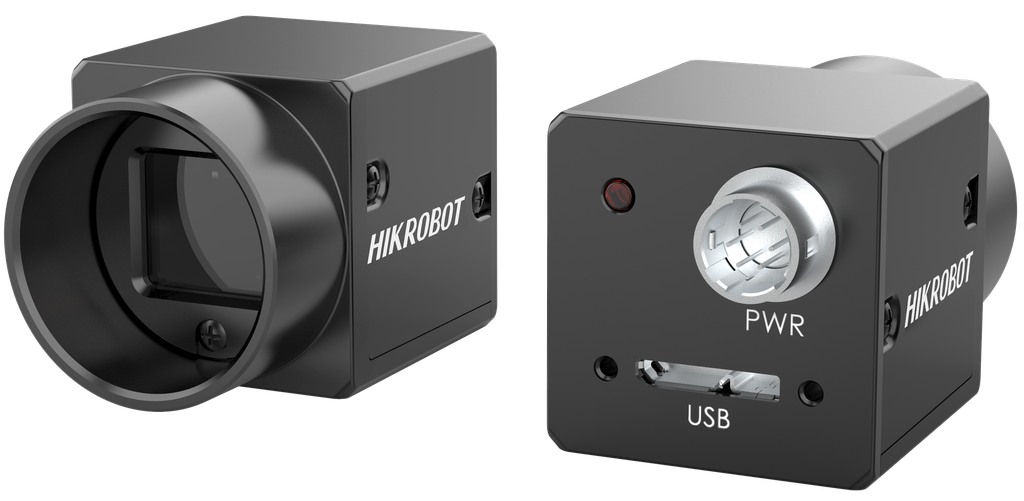

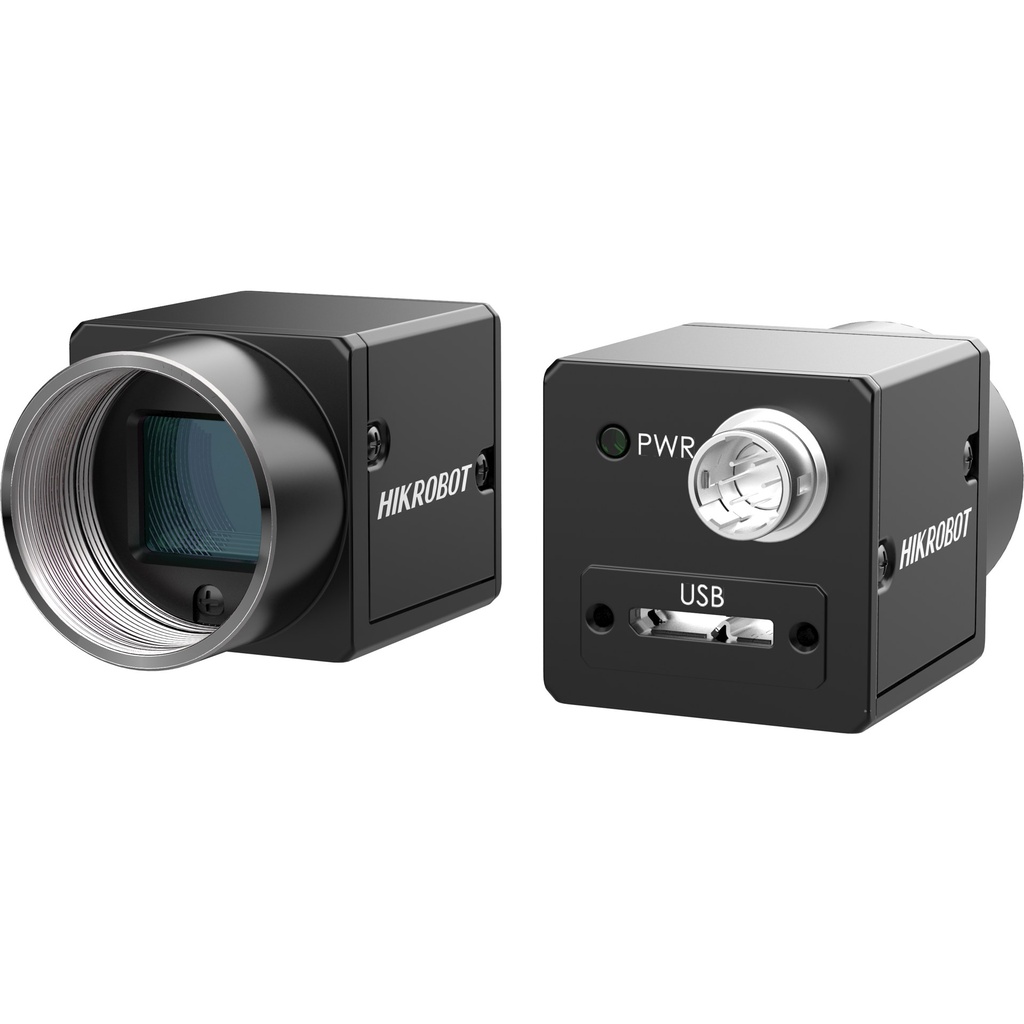

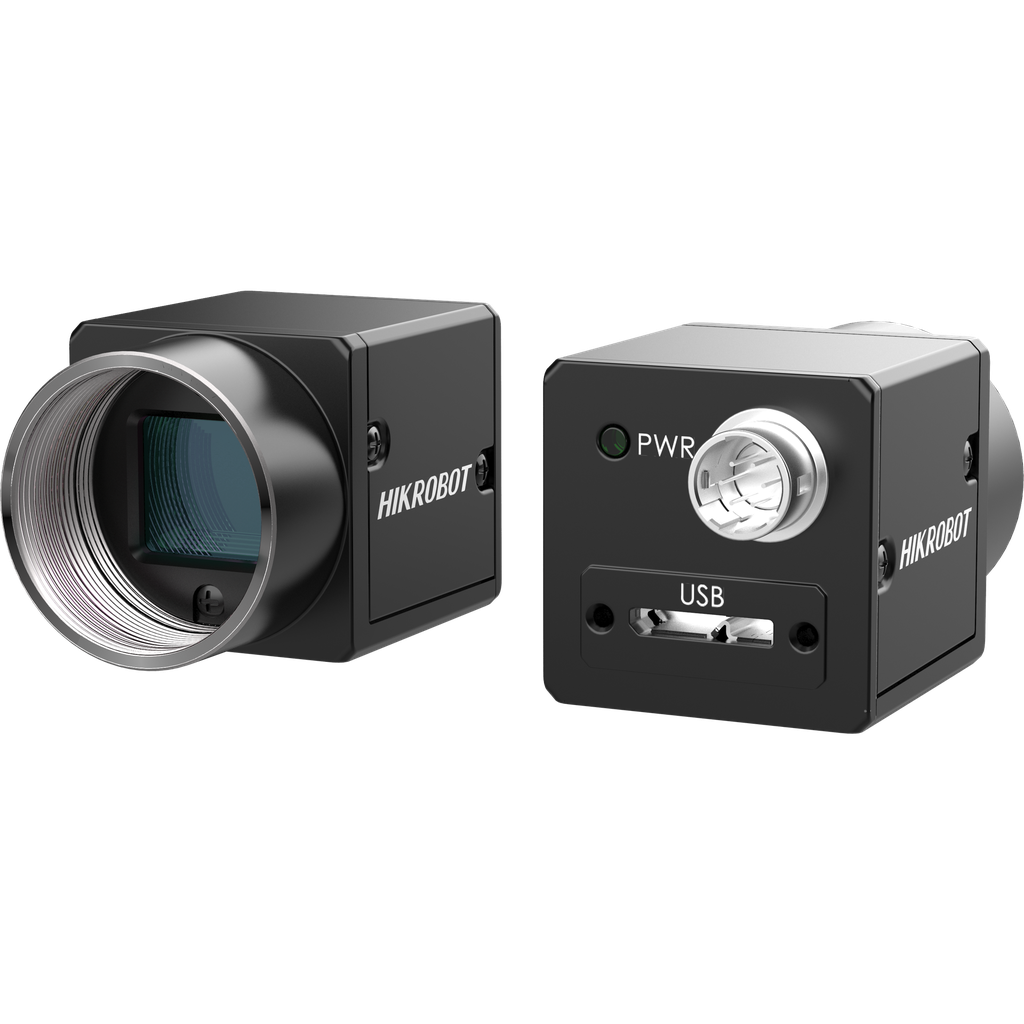

Hikrobot MV-CA050-12UC

Hikrobot MV-CA050-12UC — MV-CA050-12UM/UC camera adopts Sony® IMX264 sensor to  Mono camera: MV-CA050-12UM provide high-quality image. It uses USB3.0 interface to transmit  Color camera: MV-CA050-12UC non-compressed images in real time, and its max. frame rate Applicable. Genuine product, supplied by ZTEC.

1,381.02 € 1,381.02 €
kr 10,323.96
(Tax excluded)
Contact Us
Documents
MV-CA050-12UC - CAD (RAR).rar MV-CA050-12UC - Datasheet.pdf MV-CA050-12UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA050-12UC

CA Area Scan Camera

Order code
MV-CA050-12UC
Order number
306301349
Resolution
2448 × 2048
Frame rate
60 fps @2448 × 2048
Interface
USB3.0, compatible with USB2.0
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CA050-12UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto and manual adjustment for gain, exposure control, white balance, etc.
✓Supports hardware trigger, software trigger, free run, etc.
✓Adopts M2 screw holes for securing cable that connects USB3.0 interface.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX264
Pixel size3.45 μm × 3.45 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate60 fps @2448 × 2048
Dynamic range72 dB
SNR40.2 dB
Gain0 dB to 20 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Power consumptionTyp. 3.3 W @5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.18 lb.)
Ingress protectionIP30 (under correct lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Image buffer128 MB
