Image modeSupports 1-line
Max. line rate40 kHz @ Mono 8 (Base), 50 kHz @ RGB 8 (80-bit), 100 kHz @ Bayer RGBG 8 (Full)
Configuration modeMono 8: Base RGB 8: Base, Medium, 80-bit Bayer RGBG 8: Base, Medium, Full
Tap geometryMono 8: 1 × RGB 8: 1 ×, 1 × 2, 1 × 10 Bayer RGBG 8: 1 × 2, 1 × 4, 1 × 8
Tap numberMono 8: 2 Taps RGB 8: 1/2/10 Taps Bayer RGBG 8: 2/4/8 Taps
Pixel clock40 MHz, 60 MHz, 70 MHz, 85 MHz
GainSupports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
Exposure time5 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
Pixel formatMono 8, RGB 8, Bayer RGBG 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger

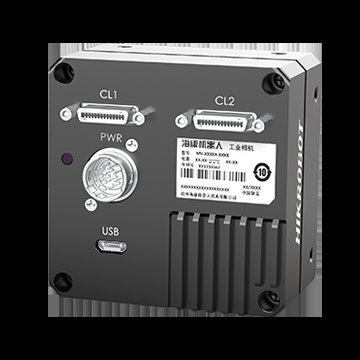

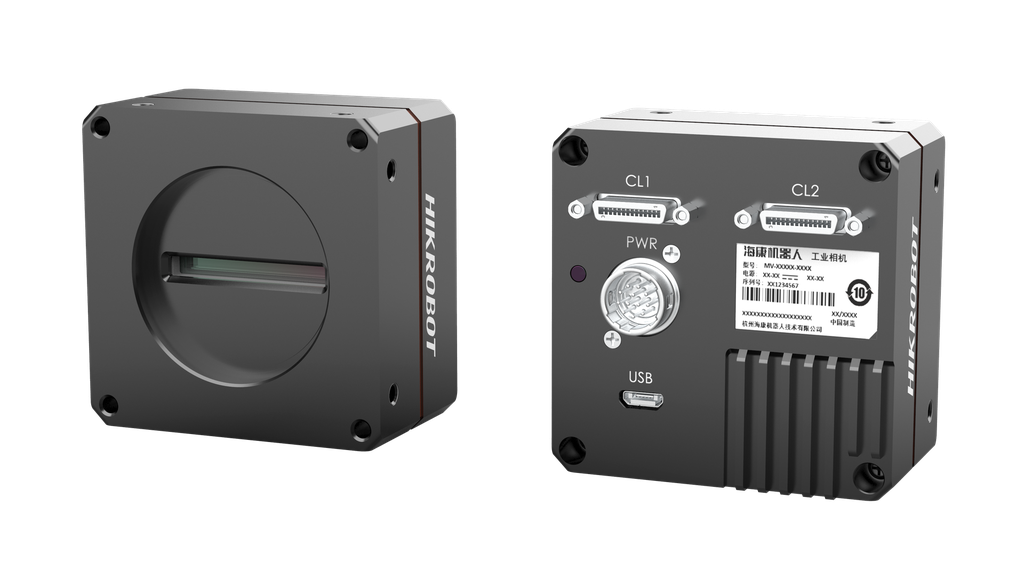

Data interfaceCamera Link (SDR connector); USB interface for updating firmware
Digital I/O12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply12 VDC to 24 VDC
Power consumptionTyp. 6.1 W @ 12 VDC
Lens mountM42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and lens of other types via lens adapter
Dimension62 mm × 62 mm × 36.9 mm (2.4" × 2.4" × 1.5")
WeightApprox. 238 g (0.5 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature : –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 95% RH (no condensation)
Client softwareMVS and frame grabber software meeting with Camera Link Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCamera Link V2.1, GenICam
CertificationCE, RoHS, KC
