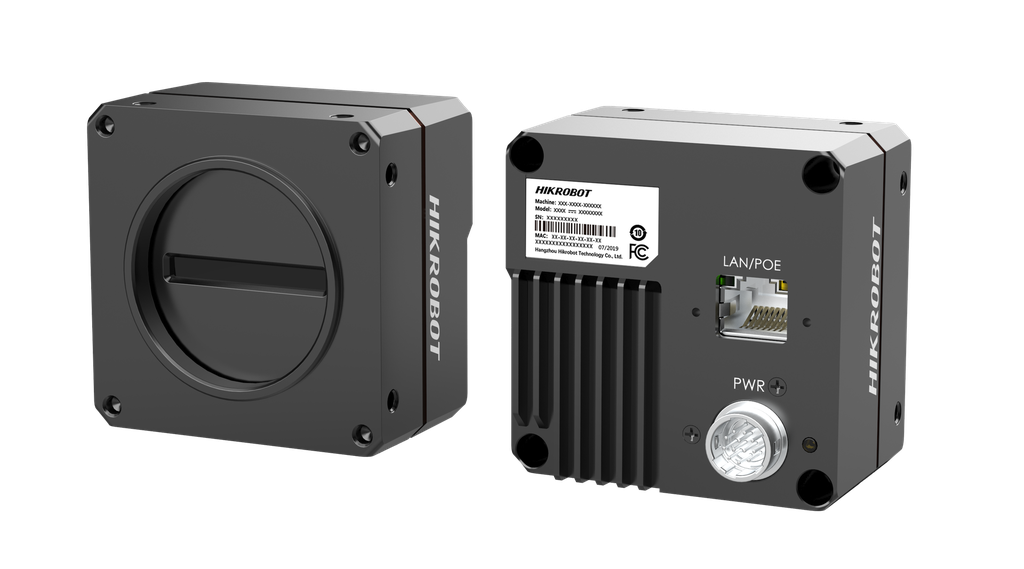

Hikrobot MV-CL042-91GM

CL Line Scan Camera

Order code
MV-CL042-91GM
Order number
306301478
Resolution
4096 × 2
Pixel size
7 μm × 7 μm

Hikrobot MV-CL042-91GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports image high-bandwidth mode, trigger-width exposure.
✓Supports manual adjustment for Gamma correction, PRNU correction, LUT, black level offset, etc.
✓Adopts bi-directional I/O connection, flexible configuration for Input/Output.
✓Compact design and flexible installation.
✓Compatible with GigE Vision V2.0 and GenlCam standard.

Applications & Industries

What you can solve with this product:

Typical industries: LogisticsFood & beveragePharmaceuticalMetalworkingTextile
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution4096 × 2
Image modeSupports 1 Line/2 TDI
Max. line rateStandard mode: 28 kHz @ Mono 8, 14 kHz @ Mono 10/12 High-bandwidth mode: 80 kHz @ Mono 8/10/12
Dynamic range65.6 dB
SNR40 dB
GainSupports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
Exposure time5 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode, and supports trigger-width exposure
MonoMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O12-pin Hirose connector provides power and I/O: configurable output and input × 4 (Line 0/1/3/4), supports single-end/differential
Power supply12 VDC to 24 VDC, supports PoE
Power consumptionTyp. 5.8 W @ 12 VDC
Mechanical
Lens mountM42*1.0, flange back length 12 mm, applicable to F-mount, C-mount and others via lens adapter
Dimension62 mm × 62 mm × 41 mm (2.4" × 2.4" × 1.6")
WeightApprox. 280 g (0.6 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
General
Client softwareMVS or the third-party software meeting with GigE Vision protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
