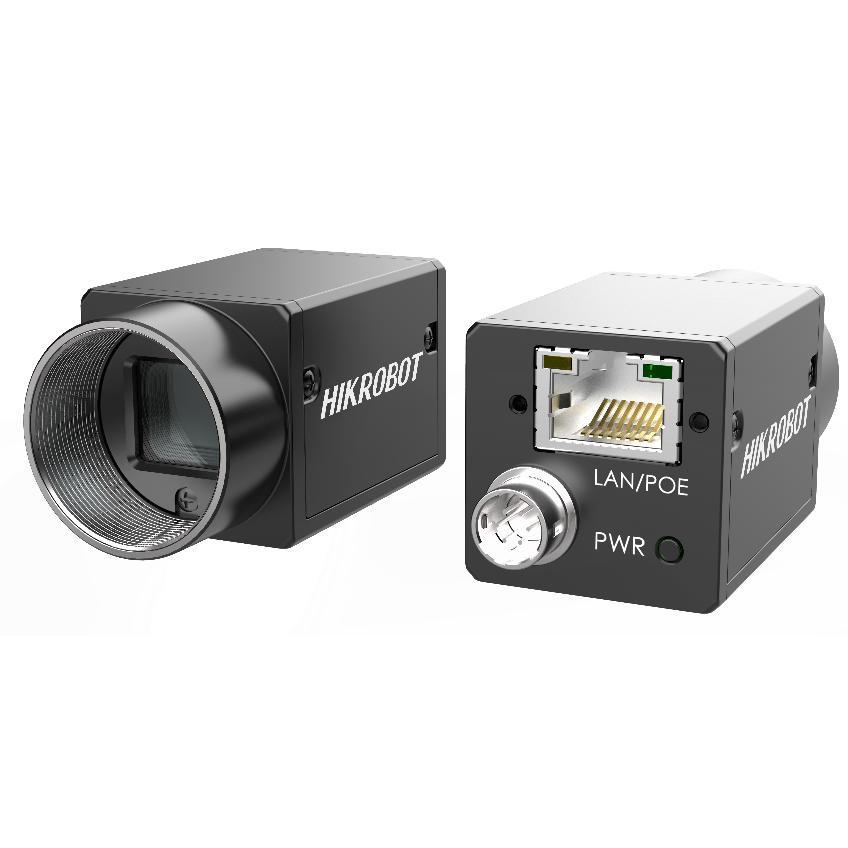

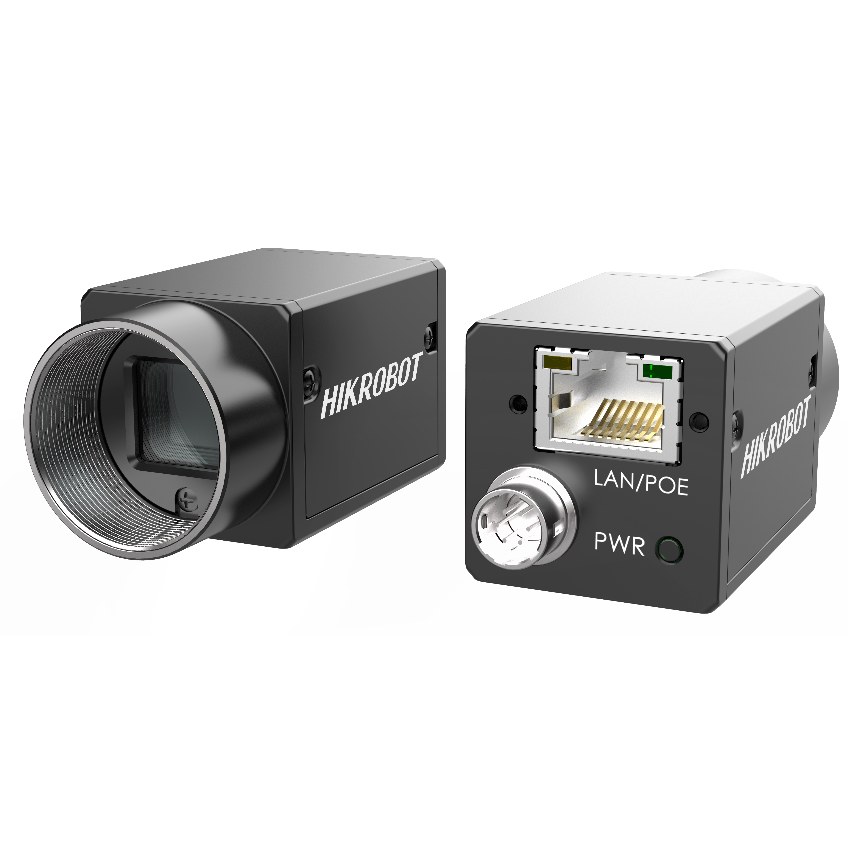

Hikrobot MV-CA013-A0GM

Hikrobot MV-CA013-A0GM — With GigE interface, MV-CA013-A0GMC camera adopts CMOS  Mono camera: MV-CA013-A0GM sensor to provide high-quality images and transmit images in  Color camera: MV-CA013-A0GC real time, and its max. frame rate can reach 92.8 fps in full Applicable. Genuine product, supplied by ZTEC.

416.13 € 416.13 €
kr 3,110.59
(Tax excluded)
Contact Us
Documents
MV-CA013-A0GM - CAD (RAR).rar MV-CA013-A0GM - Datasheet.pdf MV-CA013-A0GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA013-A0GM

CA Area Scan Camera

Order code
MV-CA013-A0GM
Order number
306301486
Resolution
1280 × 1024
Frame rate
92.8 fps @ 1280 × 1024
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
4.8 μm

Hikrobot MV-CA013-A0GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain and exposure time, manual adjustment of LUT and Gamma correction, etc.
✓Supports hardware trigger, software trigger and free run, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Pixel size4.8 μm
Sensor size1/2"
Resolution1280 × 1024
Max. frame rate92.8 fps @ 1280 × 1024
Dynamic range54 dB
SNR40.6 dB
Gain0 dB to 16 dB
Exposure time9 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.3 W@12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP30
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
