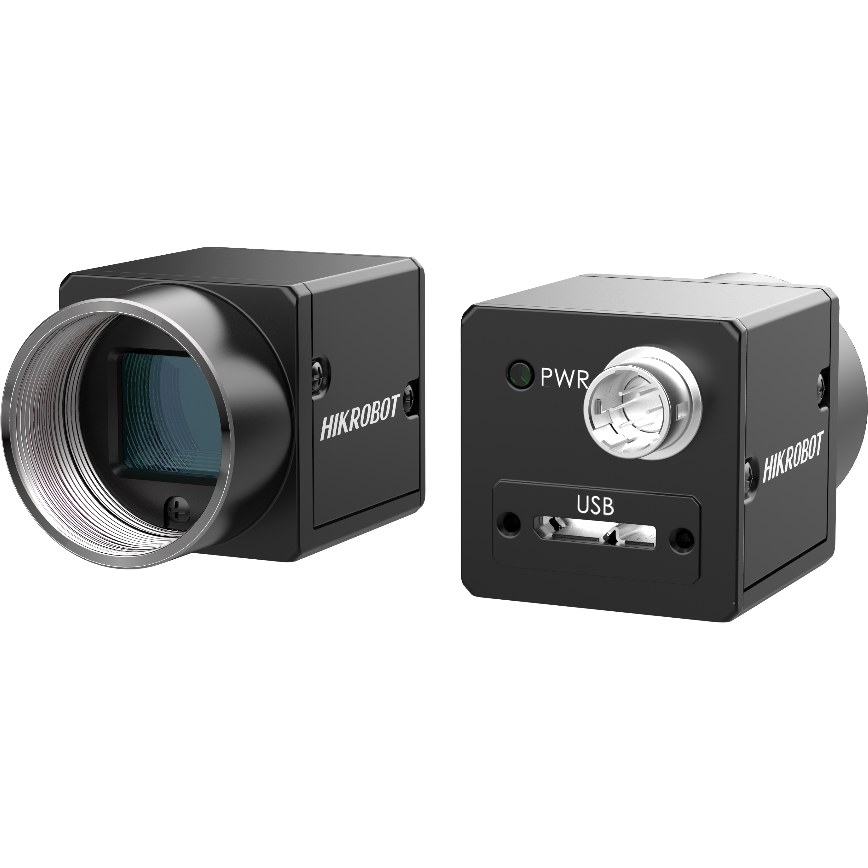

Hikrobot MV-CA013-A0UC

Hikrobot MV-CA013-A0UC — MV-CA013-A0UM/UC camera provides high-quality images.  Mono camera: MV-CA013-A0UM It uses USB3.0 interface to transmit images in real time, and  Color camera: MV-CA013-A0UC its max. frame rate can reach 201 fps in full resolution. Applicable. Genuine product, supplied by ZTEC.

495.07 € 495.07 €
kr 3,700.54
(Tax excluded)
Contact Us
Documents
MV-CA013-A0UC - CAD (RAR).rar MV-CA013-A0UC - Datasheet.pdf MV-CA013-A0UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA013-A0UC

CA Area Scan Camera

Order code
MV-CA013-A0UC
Order number
306301488
Resolution
1280 × 1024
Frame rate
201 fps @ 1280 × 1024
Interface
USB3.0, compatible with USB2.0
Pixel size
4.8 μm × 4.8 μm

Hikrobot MV-CA013-A0UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.
✓Supports customized ROI, horizontal and vertical reverse image output.
✓Adopts compact design for flexible installation.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Pixel size4.8 μm × 4.8 μm
Sensor size1/2"
Resolution1280 × 1024
Max. frame rate201 fps @ 1280 × 1024
Dynamic range53 dB
SNR40 dB
Gain0 dB to 16 dB
Exposure time9 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Pixel formatMono 8/10/12, Bayer GB 8/10/10Packed /12/1210Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC, supports USB3.0 power supply and PoE
Power consumptionTyp. 2.7 W@5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.18 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
