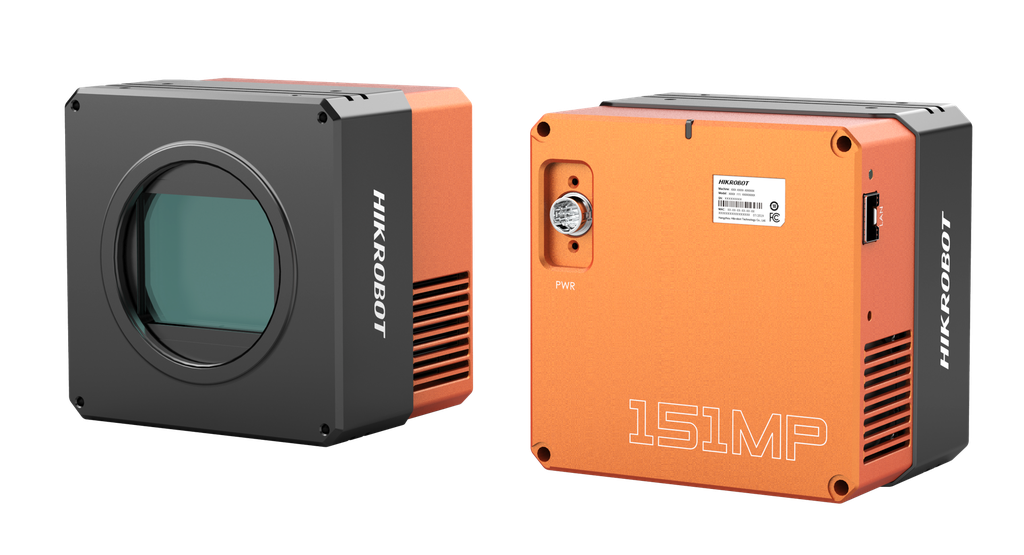

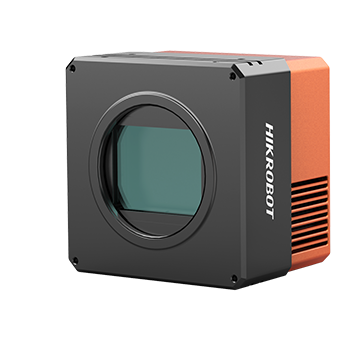

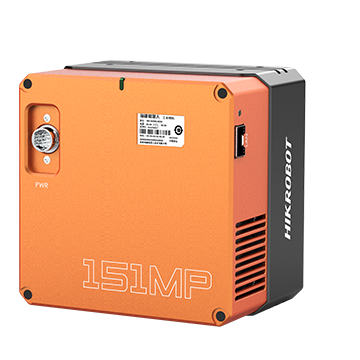

Hikrobot MV-CH1510-10FM-M72-TF

Hikrobot MV-CH1510-10FM-M72-TF — MV-CH1510-10FM/FC camera adopts Sony® IMX411 sensor to  Mono camera: MV-CH1510-10FM-M72-TF provide high-quality images. It uses 10 GigE interface to  Color camera: MV-CH1510-10FC-M72-TF transmit non-compressed data in real time, and its max. frame Applicable. Genuine Hikrobot product.

55,241.59 € 55,241.59 €
kr 412,958.50
(Tax excluded)
Contact Us
Documents
MV-CH1510-10FM-M72-TF - CAD (RAR).rar MV-CH1510-10FM-M72-TF - Datasheet.pdf MV-CH1510-10FM-M72-TF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

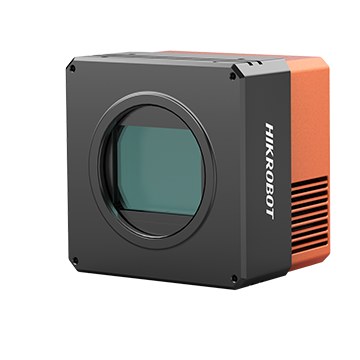

Hikrobot MV-CH1510-10FM-M72-TF

CH Area Scan Camera

Order code
MV-CH1510-10FM-M72-TF
Order number
306301499
Resolution
14208 × 10640
Frame rate
6.2 fps @ 14208 × 10640 Mono 8
Interface
10 Gigabit Ethernet (10000 Mbit/s)
Pixel size
3.76 μm × 3.76 μm

Hikrobot MV-CH1510-10FM-M72-TF is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Supports Binning, LSC Sequencer, FFC and other ISP functions.
✓Adopts 10GigE over Fiber interface to transmit data, and max. transmission distance reaches 300 m.
✓Adopts TEC technology to reduce sensor temperature and ensure high-quality images under long-time exposure condition.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX411
Pixel size3.76 μm × 3.76 μm
Sensor size66.7 mm
Resolution14208 × 10640
Max. frame rate6.2 fps @ 14208 × 10640 Mono 8
Dynamic range78.8 dB
SNR45 dB
Gain0 dB to 36 dB
Exposure time30 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Rolling mode and Global Reset
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed/16
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply24 VDC
Power consumptionTyp. 11.28 W @ 24 VDC (non-TEC mode) Typ. 48.96 W @ 24 VDC (TEC mode)
Mechanical
Lens mountM72*0.75, flange back length 19.55 mm
Dimension120 mm × 120 mm × 89 mm (4.7" × 4.7" × 3.5")
WeightApprox. 2.5 kg (5.5 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
