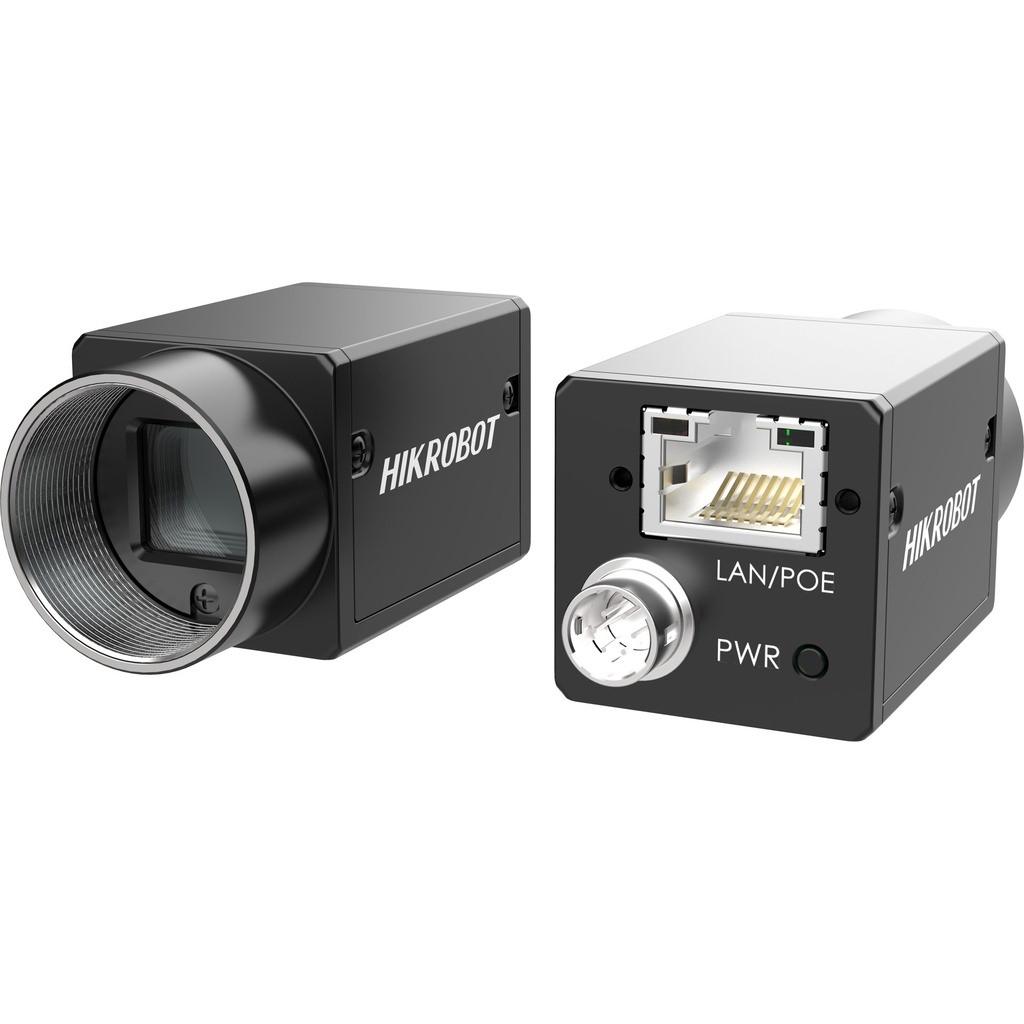

Hikrobot MV-CE013-80GM V3.0

Hikrobot MV-CE013-80GM — MV-CE013-80GM/GC camera adopts CMOS sensor to provide  Mono camera: MV-CE013-80GM high-quality images. It uses GigE interface to transmit non-  Color camera: MV-CE013-80GC compressed images in real time, and its max. frame rate can Applicable. Genuine product, supplied by ZTEC.

376.64 € 376.64 €
kr 2,815.63
(Tax excluded)
Contact Us
Documents
MV-CE013-80GM - CAD (RAR).rar MV-CE013-80GM - Datasheet.pdf MV-CE013-80GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CE013-80GM

CE Area Scan Camera

Order code
MV-CE013-80GM
Order number
306301521
Resolution
1280 × 1024
Frame rate
89.9 fps @ 1280 × 1024
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
4.0 μm × 4.0 μm

Hikrobot MV-CE013-80GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Supports auto and manual adjustment for exposure control, LUT, Gamma correction, etc.
✓Supports hardware trigger, software trigger, free run, etc.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogisticsMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSS
Pixel size4.0 μm × 4.0 μm
Sensor size1/2.7"
Resolution1280 × 1024
Max. frame rate89.9 fps @ 1280 × 1024
Dynamic range60 dB
SNR40 dB
Gain0 dB to 20 dB
Exposure time31 μs to 1 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.4 W@12 VDC
Mechanical
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 96 g (0.21 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
