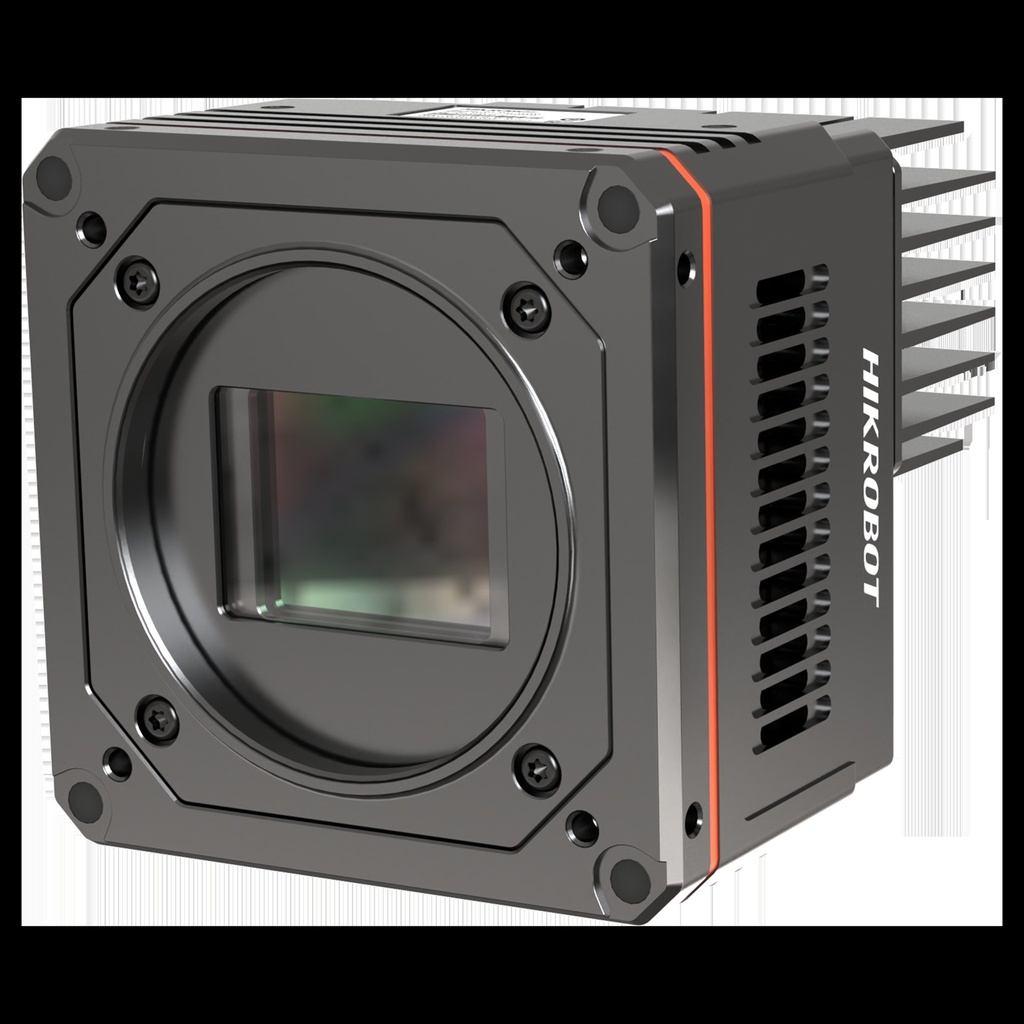

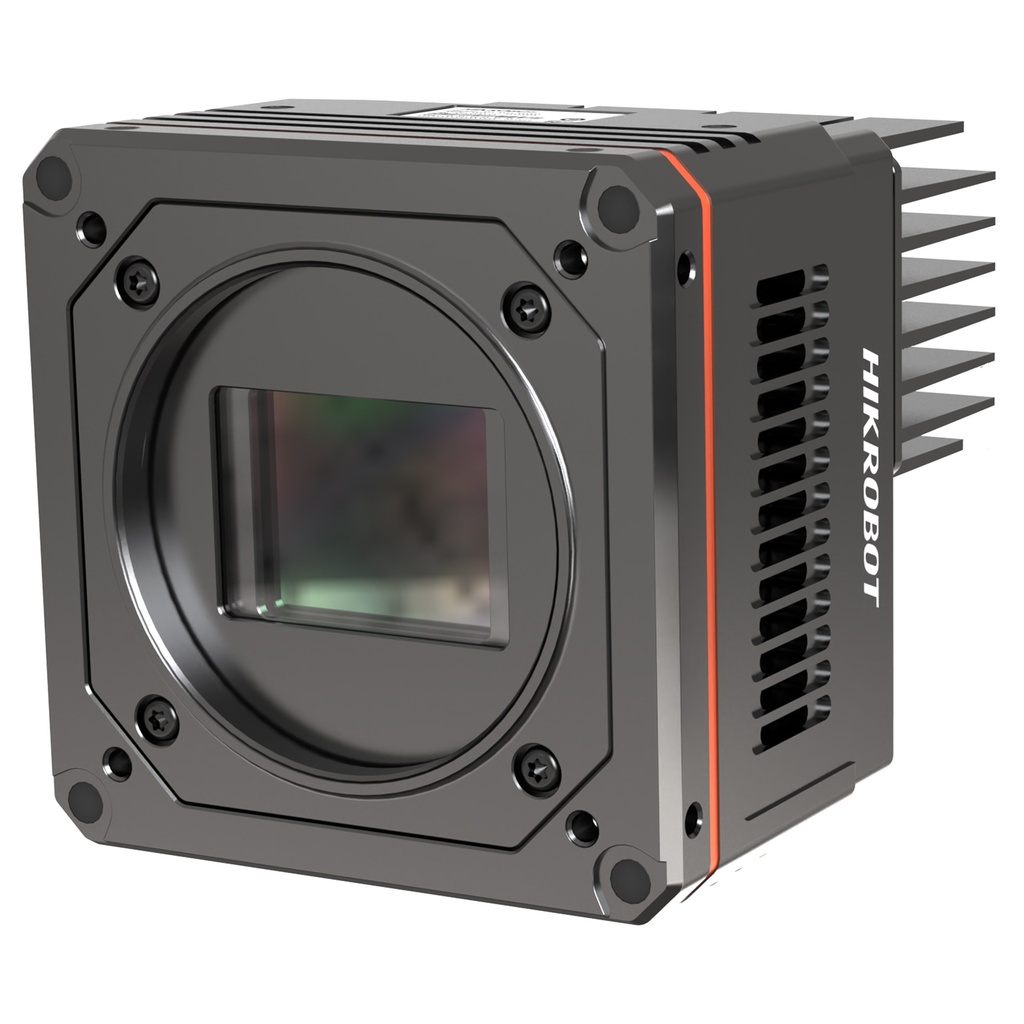

Hikrobot MV-CH250-20XM-M58S-NN

Hikrobot MV-CH250-20XM-M58S-NN — MV-CH250-20XM/XC camera adopts OnSemi Python25K sensor to  Mono camera: provide high-quality image. It uses CXP-6 interface to transmit non- MV-CH250-20XM-M58S-NN compressed images in real time, and its max. frame rate can reach  Color camera: 79.9 fps in full resolution. MV-CH250-20XC-M58S-NN. Genuine product, supplied by ZTEC.

15,782.68 € 15,782.68 €
kr 117,988.14
(Tax excluded)
Contact Us
Documents
MV-CH250-20XM-M58S-NN - CAD (RAR).rar MV-CH250-20XM-M58S-NN - Datasheet.pdf MV-CH250-20XM-M58S-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH250-20XM-M58S-NN

CH Area Scan Camera

Order code
MV-CH250-20XM-M58S-NN
Order number
306301523
Resolution
5120 × 5120
Frame rate
80 fps @ 5120 × 5120
Interface
CoaXPress with DIN interface
Pixel size
4.5 μm × 4.5 μm

Hikrobot MV-CH250-20XM-M58S-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5120 × 5120, and pixel size of 4.5 µm × 4.5 µm.
✓Supports binning, reversing image, etc.
✓Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
✓Adopts CXP-6 interface to transmit data.
✓Compatible with CoaXPress Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelOnSemi PYTHON25K
Pixel size4.5 μm × 4.5 μm
Sensor size23 mm × 23 mm
Resolution5120 × 5120
Max. frame rate80 fps @ 5120 × 5120
Dynamic range58 dB
SNR41 dB
Gain0 dB to 15 dB
Exposure time33 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceCoaXPress with DIN interface

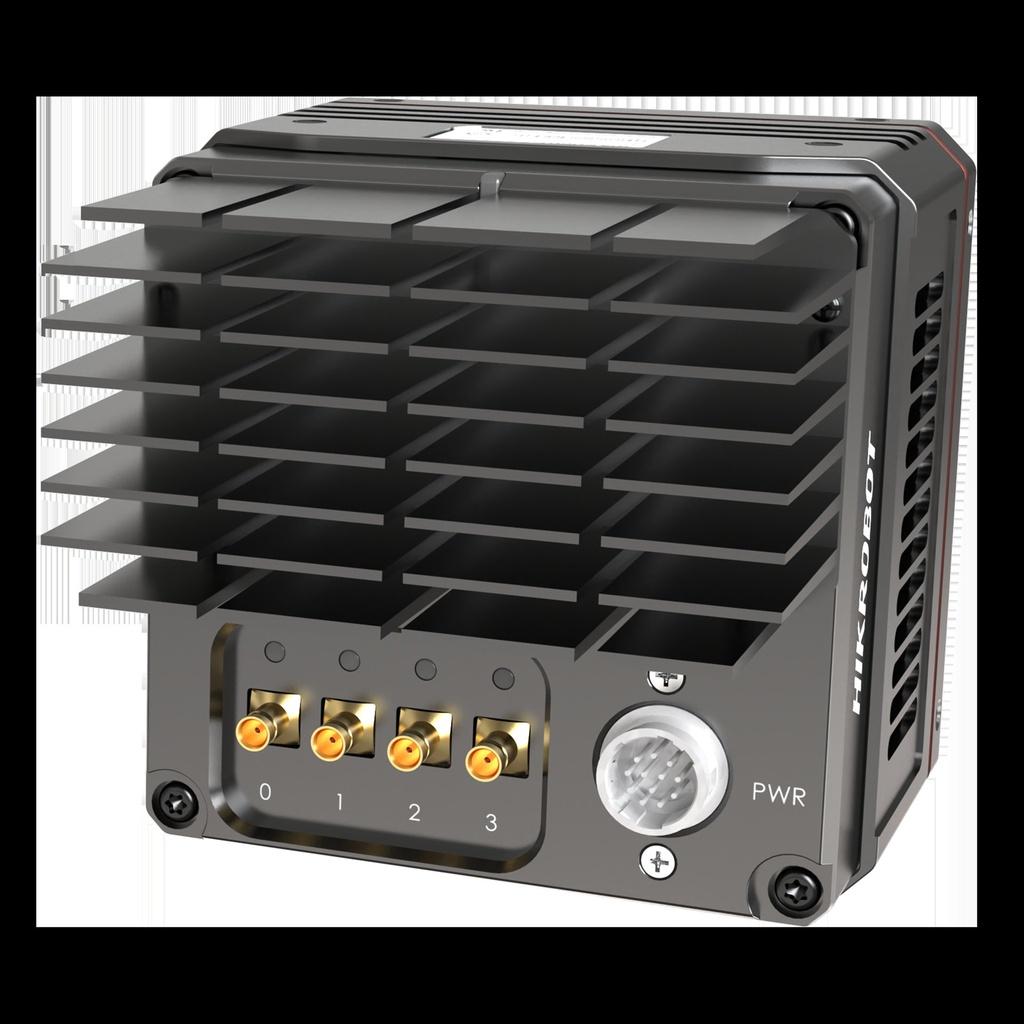

Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply9 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumptionTyp. 10.8 W @ 24 VDC
Mechanical
Dimension84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
WeightApprox. 730 g (1.6 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM58*0.75, flange back length 11.48 mm
