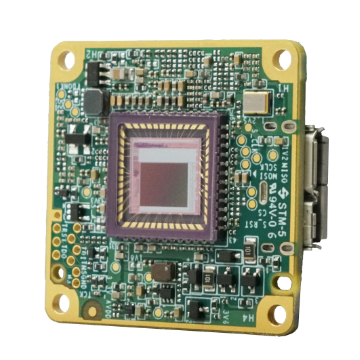

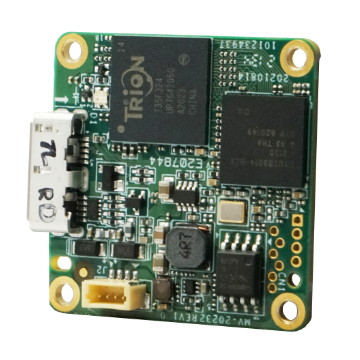

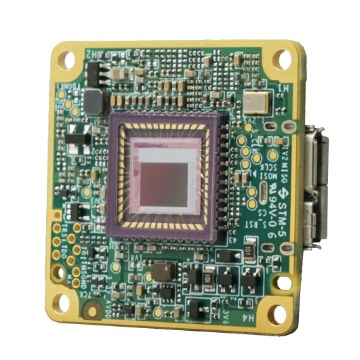

Hikrobot MV-CB013-A0UM-C

CB Board Level Camera

Order code
MV-CB013-A0UM-C
Order number
306301582
Resolution
1280 × 1024
Frame rate
201 fps @1280 × 1024
Interface
USB3.0
Pixel size
4.8 μm × 4.8 μm

Hikrobot MV-CB013-A0UM-C is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Compact design for flexible installation.
✓Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
✓Adopts image interpolation algorithm for color cameras to have better color correction.
✓Adopts USB3.0 interface to provide power supply and transmit data.
✓Compatible with USB3 Vision Protocol, GenlCam standard, and third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Pixel size4.8 μm × 4.8 μm
Sensor size1/2"
Resolution1280 × 1024
Max. frame rate201 fps @1280 × 1024
Dynamic range53 dB
SNR40 dB
Gain0 dB to 16 dB
Exposure time9 μs to 10 sec
Exposure modeOff/ Once/ Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10p/12/12p
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB3.0
Digital I/OBi-directional non-isolated I/O × 2 (Line 2, Line 5)
Power supplyUSB3.0 power supply
Power consumptionTyp. 1.6 W@5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
WeightApprox. 30 g (0.07 lb.)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
General
Client softwareMVS or third-party software compatible with USB3 Vision Protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS
CompatibilityUSB3 Vision, GenICam
CertificationCE, FCC, RoHS, KC
