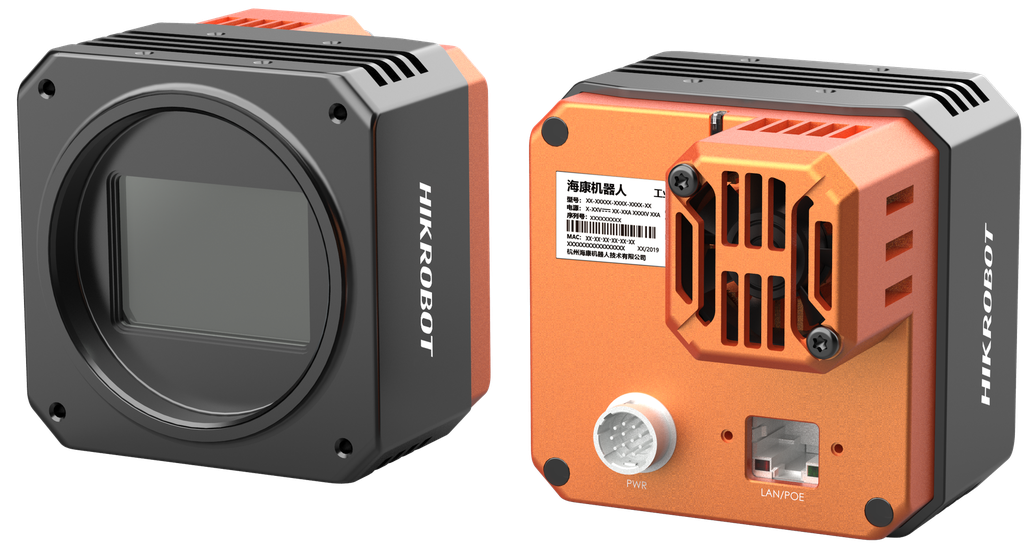

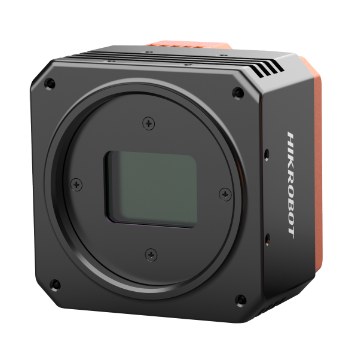

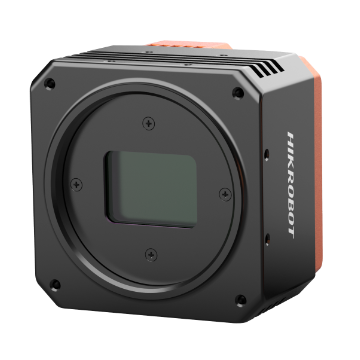

Hikrobot MV-CH120-15TC-M58S-NF

Hikrobot MV-CH120-15TC-M58S-NF — MV-CH120-15TM/TC camera adopts Sony® IMX253 sensor to  M58-mount with fan, mono: MV-CH120- provide high-quality images with high resolution and low noise. 15TM-M58S-NF It uses 10 GigE interface to transmit non-compressed data in  M58-mount with fan, color: MV-CH120- real time, and its max. frame rate can reach 68.3 fps in full 15TC-M58S-NF resolution. Sensor Quantum Efficiency. Genuine Hikrobot product.

7,102.59 € 7,102.59 €
kr 53,094.67
(Tax excluded)
Contact Us
Documents
MV-CH120-15TC-M58S-NF - Datasheet.pdf MV-CH120-15TC-M58S-NF - Drawing.pdf MV-CH120-15TC-M58S-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-15TC-M58S-NF

CH Area Scan Camera

Order code
MV-CH120-15TC-M58S-NF
Order number
306301706
Resolution
4096 × 3000
Frame rate
68.3 fps @ 4096 × 3000
Pixel size
3.45 μm × 3.45 μm
Sensor
Sony® IMX253

Hikrobot MV-CH120-15TC-M58S-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Resolution of 4096 × 3000, and pixel size of 3.45 μm × 3.45 μm.
✓Supports auto or manual adjustment for gain, exposure time, Gamma correction, LUT, etc.
✓Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
✓Compact design with mounting holes on panels for flexible mounting.
✓Compatible with GigE Vision Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX253
Pixel size3.45 μm × 3.45 μm
Sensor size1.1"
Resolution4096 × 3000
Max. frame rate68.3 fps @ 4096 × 3000
Dynamic range71.6 dB
SNR39.7 dB
Gain0 dB to 18 dB
Exposure timeUltraShort exposure mode: 2 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8, Bayer RG 8, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000Mbit/s), compatible with Gigabit Ethernet (1000Mbit/s)

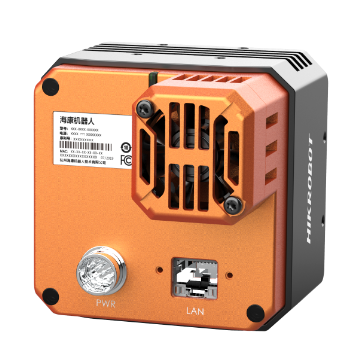

Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply9 VDC to 24 VDC
Power consumptionTyp. 10.1 W @ 24 VDC
Mechanical
Lens mountM58*0.75, flange back length 11.48 mm
Dimension74 mm × 74 mm × 72.4 mm (2.9" × 2.9" × 2.9")
WeightApprox. 550 g (1.2 lb)
Ingress protectionIP40 ( under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
