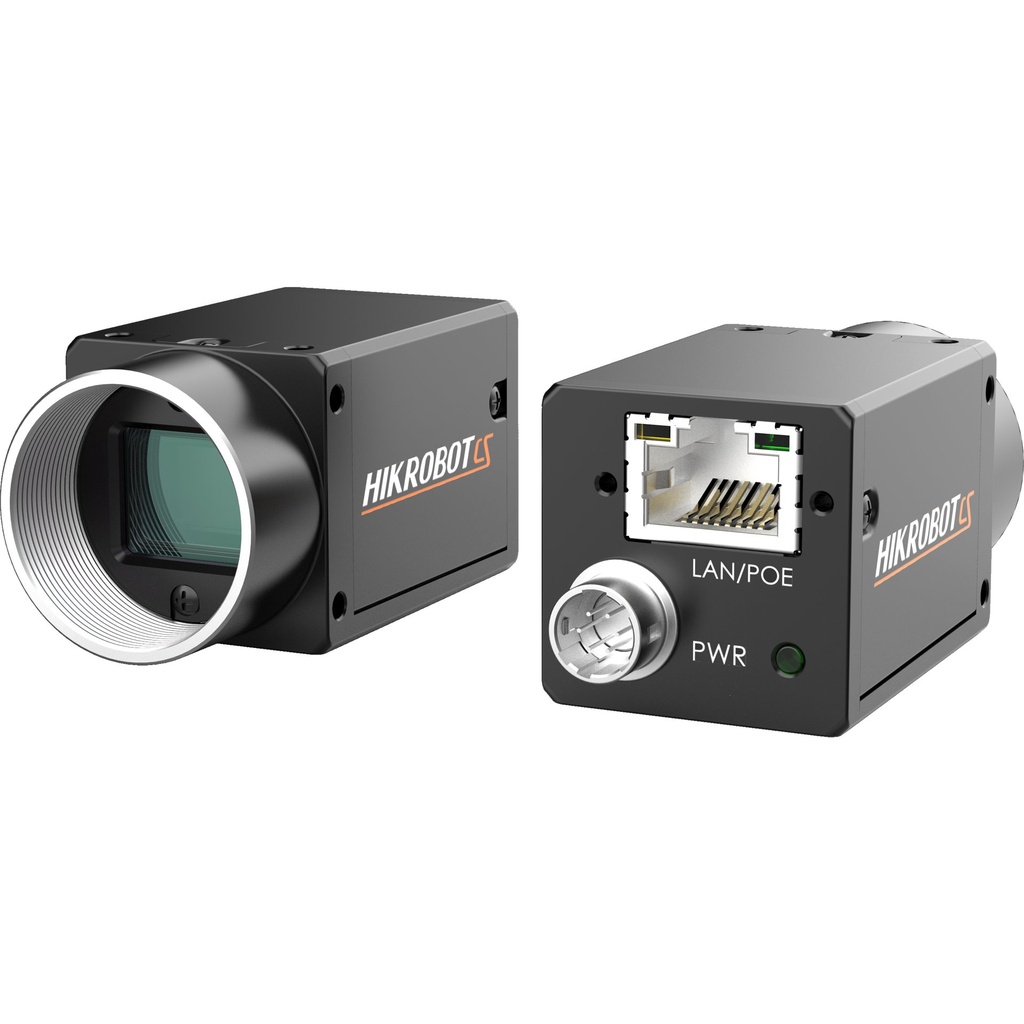

Hikrobot MV-CS050-20GM V2.0

Hikrobot MV-CS050-20GM — With GigE interface, MV-CS050-20GM/GC camera adopts OnSemi  Mono camera: MV-CS050-20GM XGS5000 sensor to provide high-quality images and transmit images  Color camera: MV-CS050-20GC in real time, and its max. frame rate can reach 22.7 fps in full Applicable. Genuine product, supplied by ZTEC.

947.02 € 947.02 €
kr 7,079.29
(Tax excluded)
Contact Us
Documents
MV-CS050-20GM - CAD (RAR).rar MV-CS050-20GM - Datasheet.pdf MV-CS050-20GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS050-20GM

CS Area Scan Camera

Order code
MV-CS050-20GM
Order number
306301724
Resolution
2592 × 2048
Frame rate
22.7 fps @ 2592 × 2048
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
3.2 μm × 3.2 μm

Hikrobot MV-CS050-20GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports contrast ratio function to adjust image clarity.
✓Supports auto or manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelOnSemi XGS5000
Pixel size3.2 μm × 3.2 μm
Sensor size2/3"
Resolution2592 × 2048
Max. frame rate22.7 fps @ 2592 × 2048
Dynamic range66 dB
SNR39.6 dB
Gain0 dB to 18 dB
Exposure timeUltraShort exposure mode: 23 μs to 99 μs Standard exposure mode: 100 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.5 W@12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
