Image modeSupports 1-line, 2-TDI, and 4-TDI Supports multiple lights control: 2-lamp/3-lamp/4-lamp
Max. line rateMultiple lights control disabled or 1-lamp: 20 kHz (Base), 40 kHz (Medium), 75 kHz (Full), 75 kHz (80-bit) 2-lamp: 10 kHz (Base), 20 kHz (Medium), 40 kHZ (Full), 50 kHz (80-bit) 3-lamp: 6 kHz (Base), 13 kHz (Medium), 27 kHZ (Full), 33 KHz (80-bit) 4-lamp: 5 kHz (Base), 10 kHz (Medium), 20 kHZ (Full), 25 kHz (80-bit)
Configuration modeBase, Medium, Full, 80-bit
Tap geometry1 × 2, 1 × 4, 1 × 8, 1 × 10
Tap number2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock40 MHz, 66 MHz, 80 MHz, 85 MHz
GainSupports 1.2 ×, 2.7 ×, and 4.6 ×
Exposure time3 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger

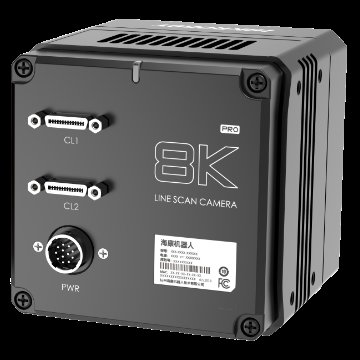

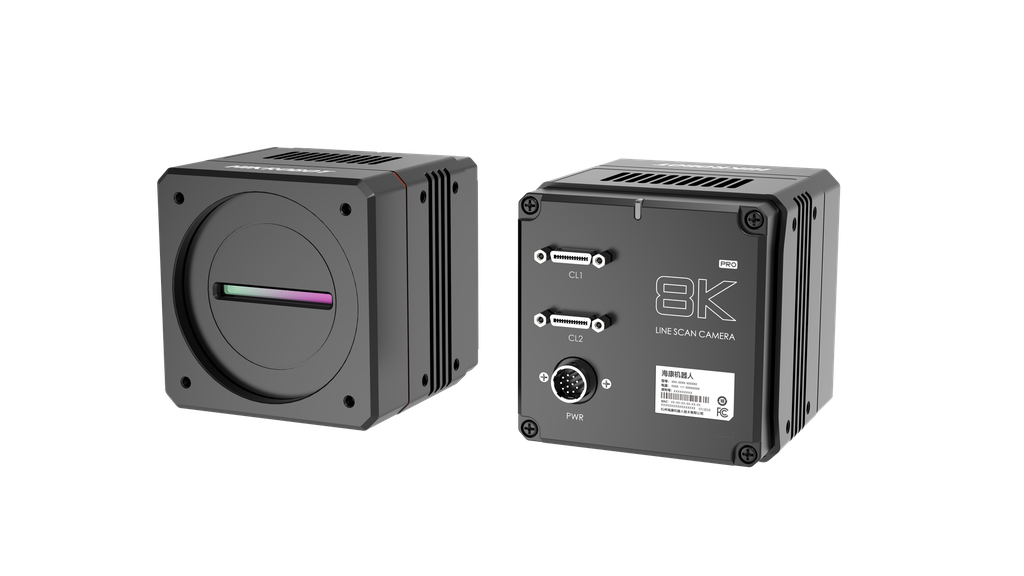

Data interfaceCamera Link (SDR connector); USB interface for updating firmware
Digital I/O12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power consumptionTyp. 22.9 W @ 24 VDC
Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension84 mm × 84 mm × 89 mm (3.3" × 3.3" × 3.5")
WeightApprox. 900 g (2.0 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 60 °C (–4 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
Client softwareMVS and frame grabber software meeting with Camera Link Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCamera Link V2.0, GenICam
CertificationCE, RoHS, KC
