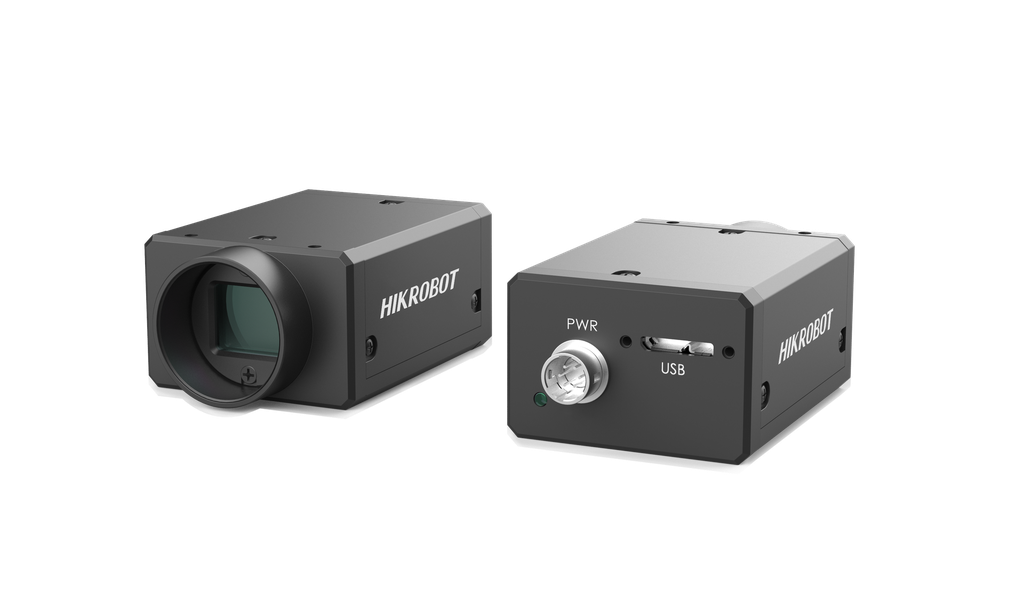

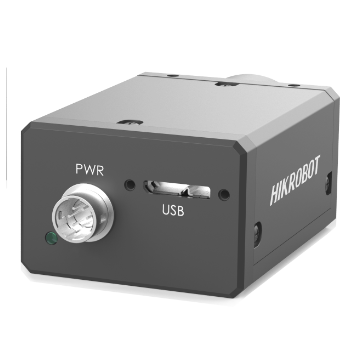

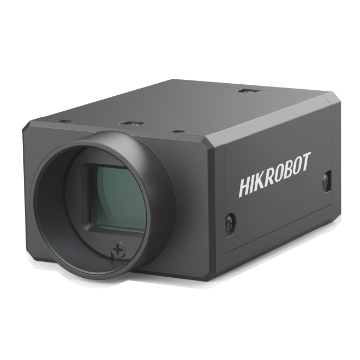

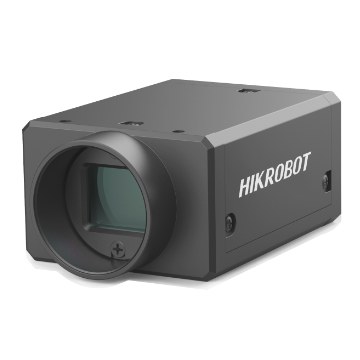

Hikrobot MV-CH120-11UC

Hikrobot MV-CH120-11UC — MV-CH120-11UM/UC camera adopts Sony® IMX304 sensor  Mono camera: MV-CH120-11UM to provide high-quality image. It uses USB 3.0 interface to  Color camera: MV-CH120-11UC transmit non-compressed images in real time, and its max. Applicable. Genuine product, supplied by ZTEC.

3,748.64 € 3,748.64 €
kr 28,022.19
(Tax excluded)
Contact Us
Documents
MV-CH120-11UC - Datasheet.pdf MV-CH120-11UC - Drawing.pdf MV-CH120-11UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-11UC

CH Area Scan Camera

Order code
MV-CH120-11UC
Order number
306301748
Resolution
4096 × 3000
Frame rate
30.3 fps @ 4096 × 3000 Bayer RG 8
Interface
USB 3.0, compatible with USB 2.0
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CH120-11UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
✓Supports hardware triggering, software triggering and free run mode.
✓Supports customized ROI, and horizontal and vertical reverse image output.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX304
Pixel size3.45 μm × 3.45 μm
Sensor size1.1"
Resolution4096 × 3000
Max. frame rate30.3 fps @ 4096 × 3000 Bayer RG 8
Dynamic range72.2 dB
SNR40.2 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceUSB 3.0, compatible with USB 2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
Power supply9 VDC to 24 VDC, supports USB power supply
Power consumptionTyp. 4.7 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
