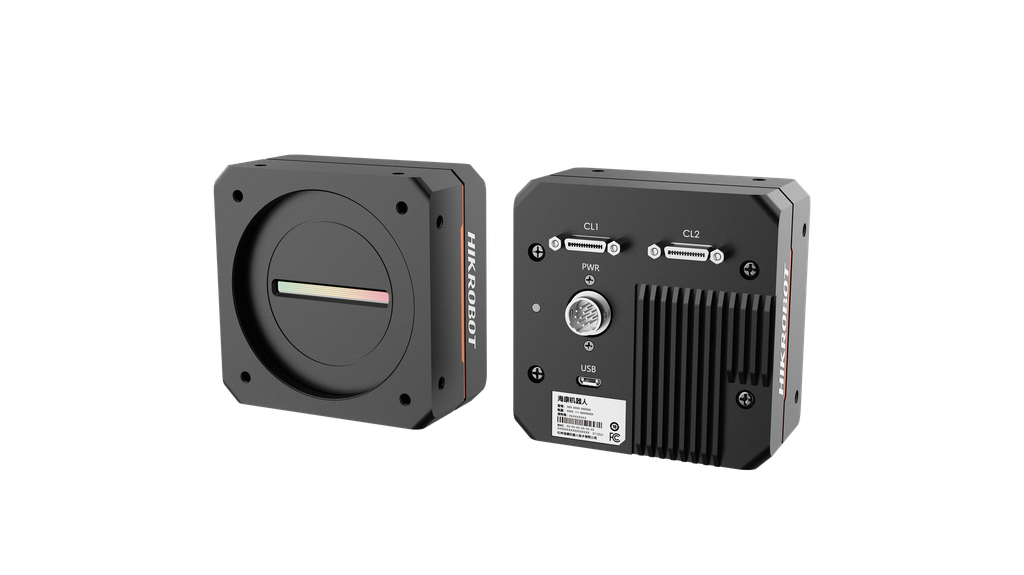

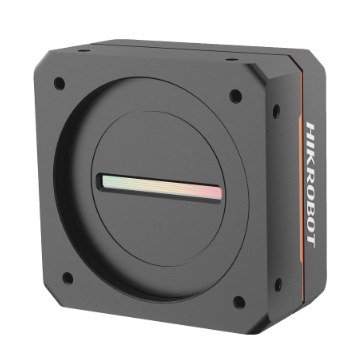

Hikrobot MV-CL086-91CC

CL Line Scan Camera

Order code
MV-CL086-91CC
Order number
306301759
Resolution
8192 × 6
Pixel size
5 μm

Hikrobot MV-CL086-91CC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports configuration modes of Base, Medium and 80-bit via the Camera Link interface.
✓Supports TDI function to select different image modes.
✓Supports exposure time and gain adjustment, PRNUC correction, LUT, Gamma correction, etc.
✓Adopts compact design and supports flexible installation.
✓Compatible with Camera Link Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsNew energyPrinting
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS
Pixel size5 μm
Resolution8192 × 6
Image modeSupports 1-line, 2-TDI
Max. line rate10.1 kHz (Base), 20.2 kHz (Medium), 33.7 kHz (80-bit)
Configuration modeBase, Medium, 80-bit
Tap geometry1 × 1, 1 × 2, 1 × 10
Tap number1 Tap, 2 Taps, 10 Taps
Pixel clock40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range62 dB
SNR42 dB
GainSupports 1.2 ×, 2.7 ×, 3.0 ×, 3.5 ×, 4.6 ×, 6.2 ×
Exposure time3 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
MonoColor
Pixel formatRGB 8, BGR 8, Mono 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical features

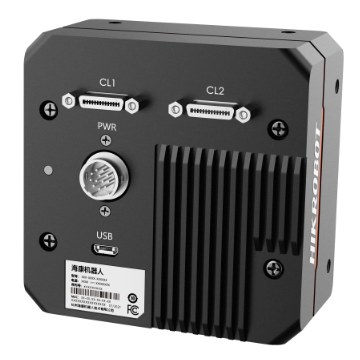

Data interfaceCamera Link (SDR connector); USB interface for updating firmware
Digital I/O12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply12 VDC to 24 VDC
Power consumptionTyp. 9.6 W @ 12 VDC
Mechanical
Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension84 mm × 84 mm × 46.2 mm (3.3" × 3.3" × 1.8")
WeightApprox. 476 g (1.0 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
General
Client softwareMVS and frame grabber software meeting with Camera Link Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCamera Link V1.2, GenICam
CertificationCE, RoHS 2.0, KC
