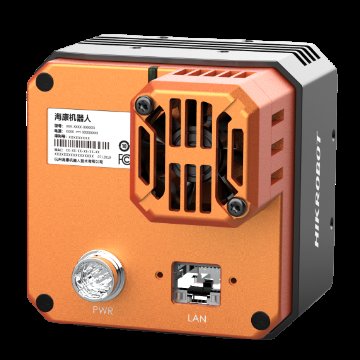

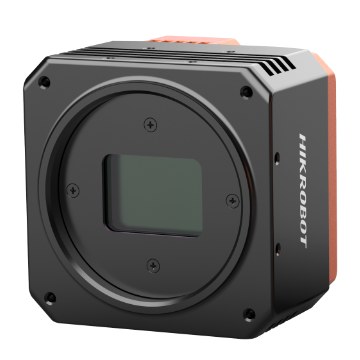

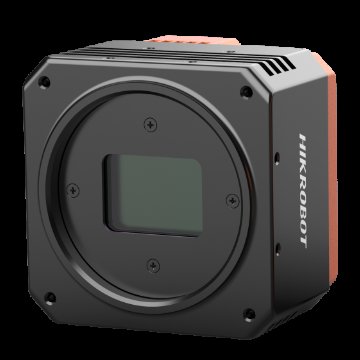

Hikrobot MV-CH250-60TM-M58S-NF

CH Area Scan Camera

Order code
MV-CH250-60TM-M58S-NF
Order number
306301768
Resolution
5120 × 5120
Frame rate
31.7 fps @ 5120 × 5120 Mono 8
Pixel size
4.5 μm × 4.5 μm

Hikrobot MV-CH250-60TM-M58S-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Resolution of 5120 × 5120, and pixel size of 4.5 μm × 4.5 μm.
✓Supports auto or manual adjustment of exposure time, and manual adjustment of gain, Gamma correction, LUT, etc.
✓Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
✓Compact design with mounting holes on panels for flexible mounting.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Pixel size4.5 μm × 4.5 μm
Sensor size23 mm × 23 mm
Resolution5120 × 5120
Max. frame rate31.7 fps @ 5120 × 5120 Mono 8
Dynamic range66 dB
SNR40 dB
Gain0 dB to 15.6 dB
Exposure time15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10Packed/12/12Packed
Binning1 × 1, 2 × 2, 4 × 4
Decimation1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply12 VDC to 24 VDC
Power consumptionTyp. 15.1 W @ 12 VDC
Mechanical
Lens mountM58*0.75, flange back length 11.48 mm
Dimension74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
WeightApprox. 550 g (1.2 lb)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
