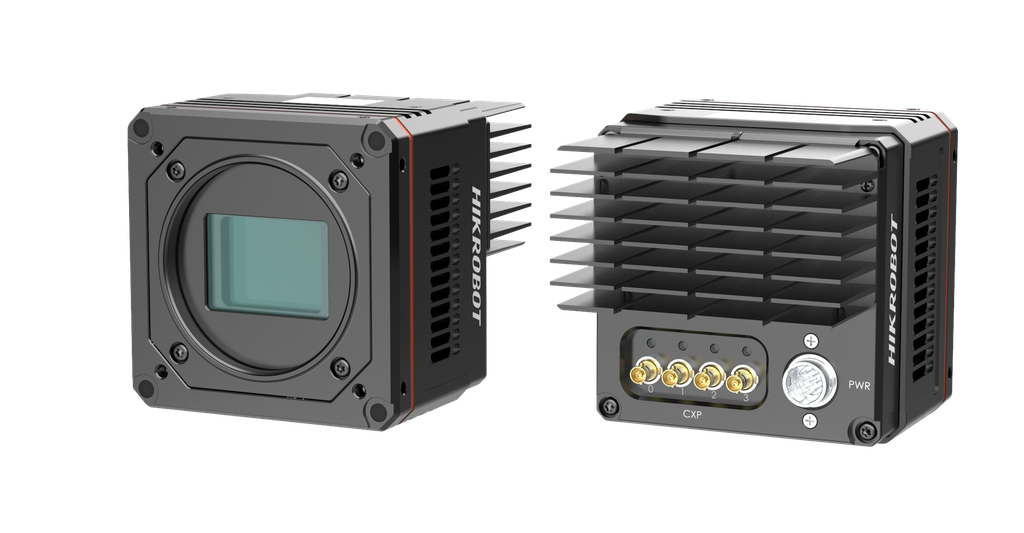

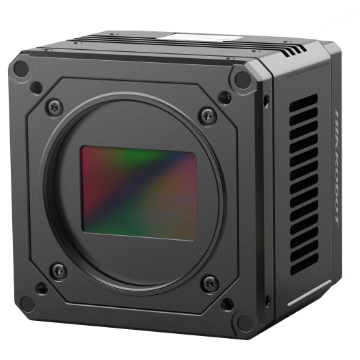

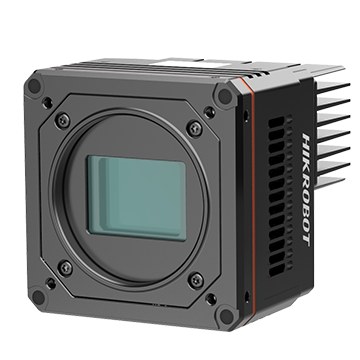

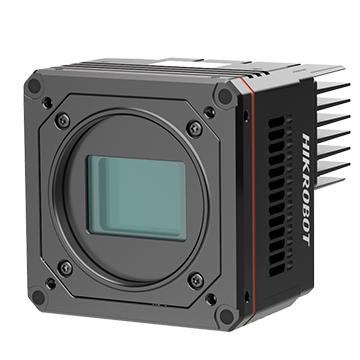

Hikrobot MV-CH210-90YC-M58S-NN

Hikrobot MV-CH210-90YC-M58S-NN — MV-CH210-90YM/YC camera adopts Gsprint 4521 sensor  Mono camera: to provide high-quality image. It uses CXP-12 interface to MV-CH210-90YM-M58S-NN transmit non-compressed images in real time, and its max..  Color camera: frame rate can reach 222 fps in full resolution. Without fan: MV-CH210-90YC-M58S-. Genuine product, supplied by ZTEC.

16,573.14 € 16,573.14 €
kr 123,887.55
(Tax excluded)
Contact Us
Documents
MV-CH210-90YC-M58S-NN - CAD (RAR).rar MV-CH210-90YC-M58S-NN - Datasheet.pdf MV-CH210-90YC-M58S-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH210-90YC-M58S-NN

CH Area Scan Camera

Order code
MV-CH210-90YC-M58S-NN
Order number
306301779
Resolution
5120 × 4096
Frame rate
222 fps @ 5120 × 4096 Bayer GB 8
Interface
CoaXPress with Micro-BNC interface
Pixel size
4.5 μm × 4.5 μm

Hikrobot MV-CH210-90YC-M58S-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5120 × 4096, and pixel size of 4.5 µm × 4.5 µm.
✓Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
✓Supports LSC sequencer polling function.
✓Low power consumption without fans.
✓Adopts CXP-12 interface to transmit data.
✓Compatible with CoaXPress Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelGpixel Gsprint4521
Pixel size4.5 μm × 4.5 μm
Sensor size23.04 mm × 18.43 mm
Resolution5120 × 4096
Max. frame rate222 fps @ 5120 × 4096 Bayer GB 8
Dynamic range65 dB
SNR43 dB
Gain1.0 ×, 2.0 ×, 4.0 ×
Exposure time4 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer GB 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceCoaXPress with Micro-BNC interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumptionWith fan: Typ. 18.7 W @ 24 VDC Without fan: Typ. 16.3 W @ 24 VDC
Mechanical
DimensionWith fan: 84 mm × 84 mm × 75 mm (3.3" × 3.3" × 3.0") Without fan: 84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
WeightWith fan: Approx. 790 g (1.7 lb.) Without fan: Approx. 650 g (1.4 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM58*0.75
