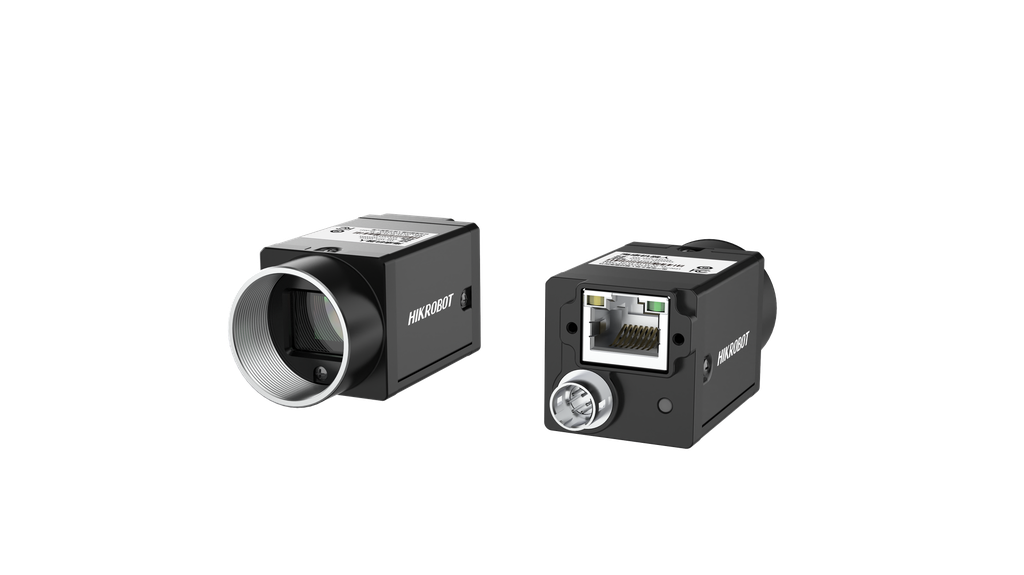

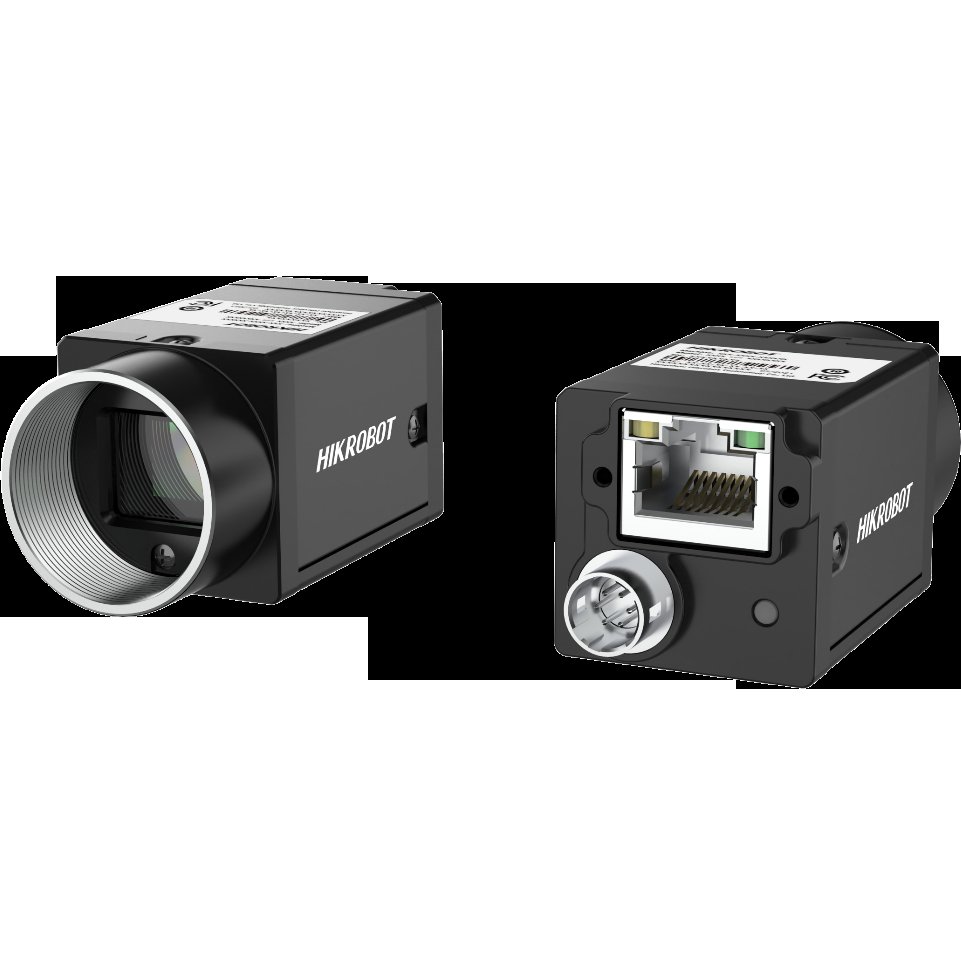

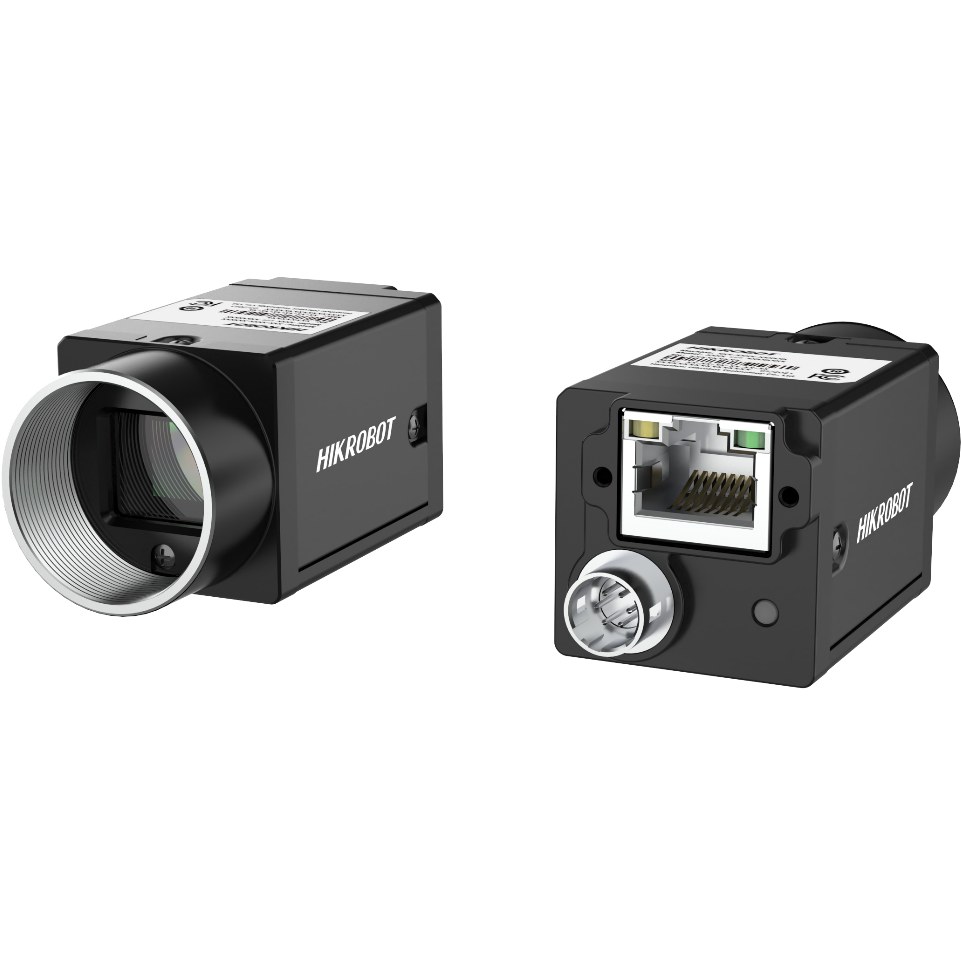

Hikrobot MV-CU004-10GM

Hikrobot MV-CU004-10GM — MV-CU004-10GM/GC camera adopts Sony® IMX297 sensor to  Mono camera: MV-CU004-10GM provide high-quality images. It uses GigE interface to transmit non-  Color camera: MV-CU004-10GC compressed images in real time, and its max. frame rate can reach Applicable. Genuine product, supplied by ZTEC.

394.59 € 394.59 €
kr 2,949.70
(Tax excluded)
Contact Us
Documents
MV-CU004-10GM - CAD (RAR).rar MV-CU004-10GM - Datasheet.pdf MV-CU004-10GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CU004-10GM

CU Area Scan Camera

Order code
MV-CU004-10GM
Order number
306301787
Resolution
720 × 540
Frame rate
126.5 fps @720 × 540 Mono 8
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
6.9 μm × 6.9 μm

Hikrobot MV-CU004-10GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts low power consumption design with stable performance.
✓Supports auto and manual adjustment of gain, exposure time, etc.
✓Supports hardware trigger, software trigger, free run, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX297
Pixel size6.9 μm × 6.9 μm
Sensor size1/2.9"
Resolution720 × 540
Max. frame rate126.5 fps @720 × 540 Mono 8
Dynamic range74 dB
SNR41 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, PoE is optional
Power consumptionTyp. 2 W@12 VDC
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
