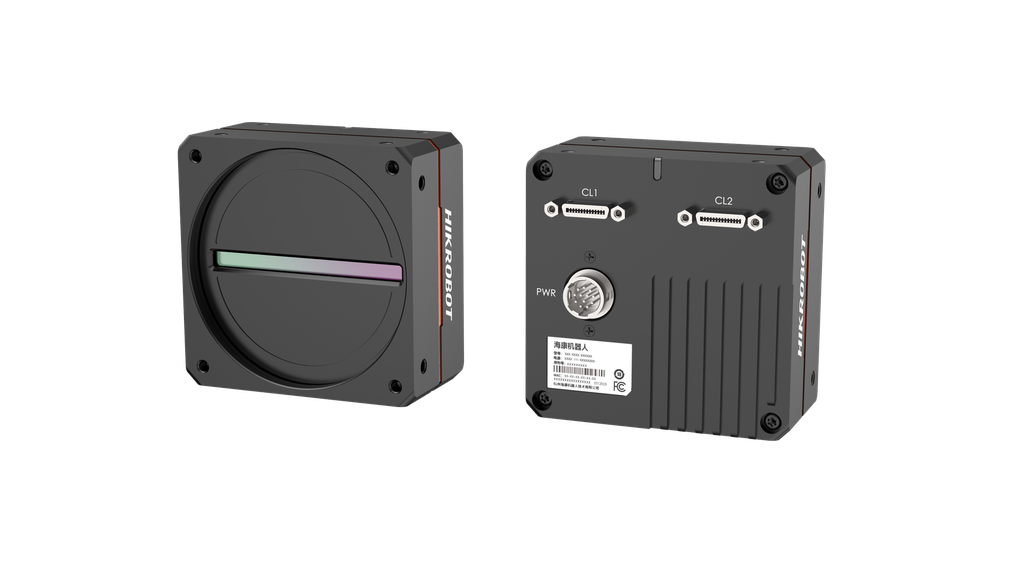

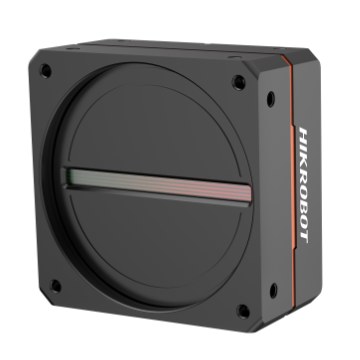

Hikrobot MV-CL083-92CC

CL Line Scan Camera

Order code
MV-CL083-92CC
Order number
306301832
Resolution
8192 × 3
Interface
Camera Link; USB interface for updating firmware
Pixel size
7 μm × 7 μm

Hikrobot MV-CL083-92CC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts multiple ISP technologies and supports manual adjustment for Gamma correction, FFC correction, LUT, black level, etc.
✓Supports RGB true color, multiple exposure and image acquisition modes.
✓Supports ROI to increase line rate.
✓Supports bi-directional I/O wiring for flexible input/output settings.
✓Compact design and flexible installation.
✓Compatible with Camera Link Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsNew energyMetalworking
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution8192 × 3
Image modeSupports 1-line
Max. line rate10.1 kHz (Base), 20.2 kHz (Medium), 33.7 kHz (80-bit) Increases line rate via ROI: Max. 66.6 kHz (4140 resolution and below)
Configuration modeBase, Medium, 80-bit
Tap geometry1 × 1, 1 × 2, 1 × 10
Tap number1 Tap, 2 Taps, 10 Taps
Pixel clock40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range63.4 dB
SNR40.8 dB
GainSupports 1.0 ×
Exposure time3 μs to 10 ms
Exposure modeOff/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure
MonoColor
Pixel formatMono 8/12, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical features

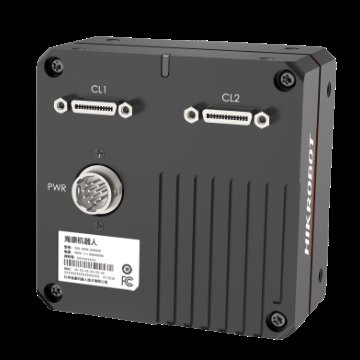

Data interfaceCamera Link; USB interface for updating firmware
Digital I/O12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply12 VDC to 24 VDC
Power consumptionTyp. 9.9 W @ 12 VDC
Mechanical

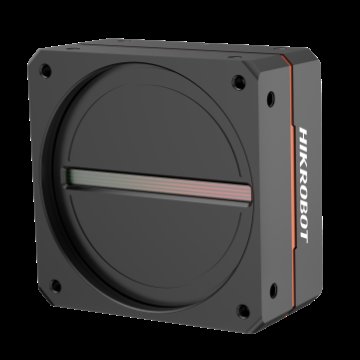

Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
WeightApprox. 340 g (0.75 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature : –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
General
Client softwareMVS and frame grabber software meeting with Camera Link Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCamera Link V1.2, GenICam
CertificationCE, RoHS 2.0, KC
