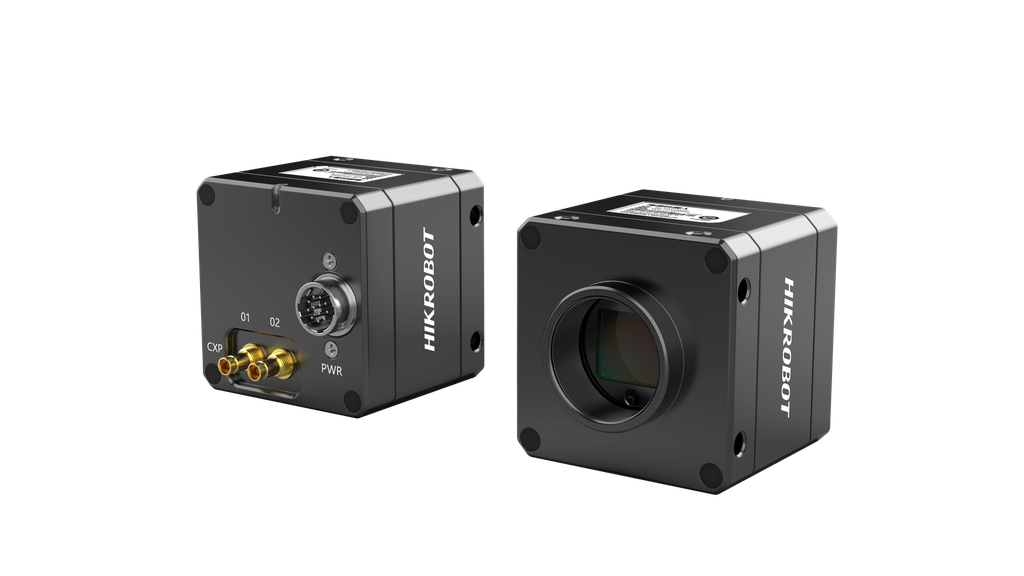

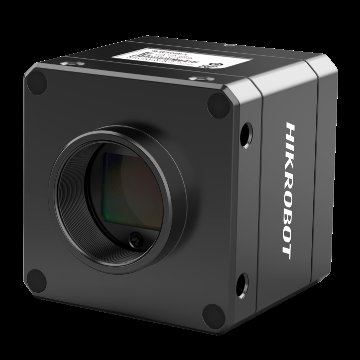

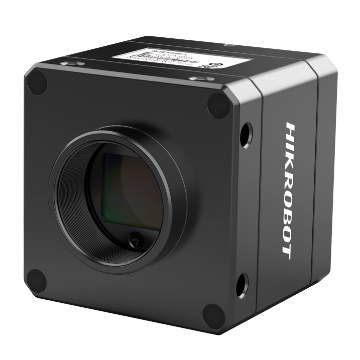

Hikrobot MV-CH250-90XM-C-NN

Hikrobot MV-CH250-90XM-C-NN — MV-CH250-90XM/XC camera adopts Gpixel GMAX0505 sensor to Mono camera: MV-CH250-90XM-C-NN provide high quality image. It uses CXP-6 interface to transmit images Color camera: MV-CH250-90XC-C-NN in real time, and its max. frame rate can reach 41.5 fps in full Applicable. Genuine product, supplied by ZTEC.

6,313.24 € 6,313.24 €
kr 47,195.26
(Tax excluded)
Contact Us
Documents
MV-CH250-90XM-C-NN - CAD (RAR).rar MV-CH250-90XM-C-NN - Datasheet.pdf MV-CH250-90XM-C-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH250-90XM-C-NN

CH Area Scan Camera

Order code
MV-CH250-90XM-C-NN
Order number
306301847
Resolution
5120 × 5120
Frame rate
41.5 fps @ 5120 × 5120 Mono 8
Interface
CoaXPress with DIN interface
Pixel size
2.5 μm × 2.5 μm

Hikrobot MV-CH250-90XM-C-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
✓Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
✓Adopts CXP-6 interface to transmit data.
✓Compatible with CoaXPress Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX0505
Pixel size2.5 μm × 2.5 μm
Sensor size1.1"
Resolution5120 × 5120
Max. frame rate41.5 fps @ 5120 × 5120 Mono 8
Dynamic range65 dB
SNR41 dB
Gain2.0 × to 5.0 ×
Exposure time13 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceCoaXPress with DIN interface

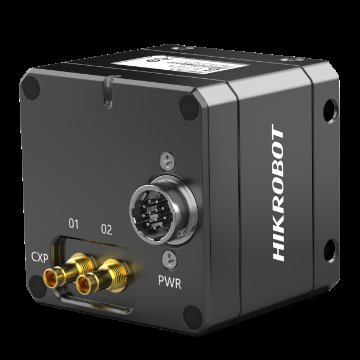

Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply9 VDC to 24 VDC, CXP-1 supports PoCXP
Power consumptionTyp. 7.0 W @ 12 VDC
Mechanical
Dimension50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
WeightApprox. 207 g (0.5 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
