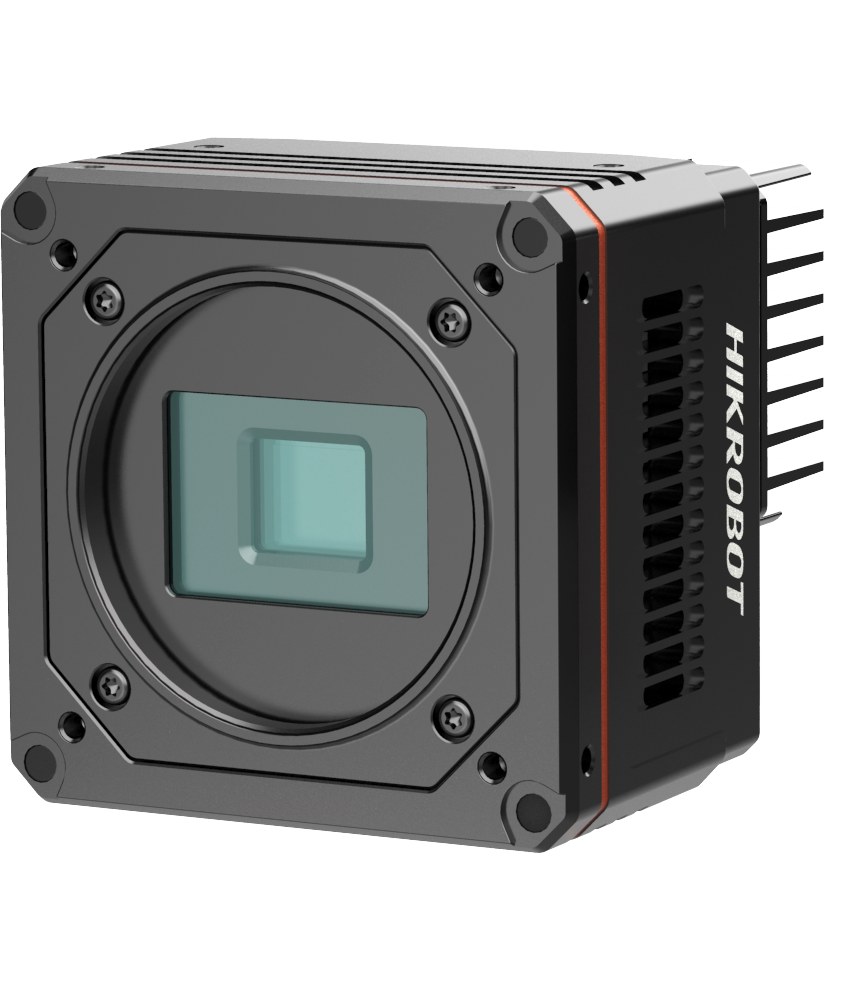

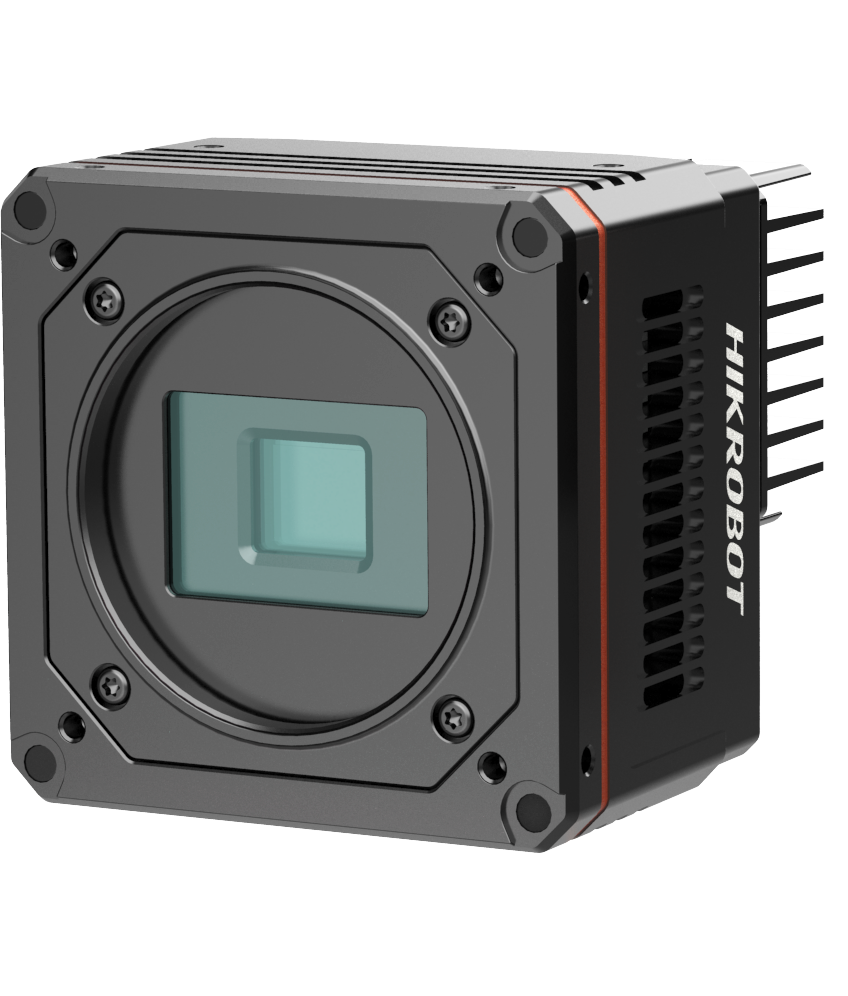

Hikrobot MV-CH240-10TM-C-NN

CH Area Scan Camera

Order code
MV-CH240-10TM-C-NN
Order number
306301858
Resolution
5328 × 4600
Frame rate
35.1 fps @ 5328 × 4600 Mono 8
Pixel size
2.74 μm × 2.74 μm
Sensor
Sony® IMX540

Hikrobot MV-CH240-10TM-C-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5328 × 4600, and pixel size of 2.74 μm × 2.74 μm.
✓Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
✓Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
✓Compact design with mounting holes on panels for flexible mounting.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX540
Pixel size2.74 μm × 2.74 μm
Sensor size1.2"
Resolution5328 × 4600
Max. frame rate35.1 fps @ 5328 × 4600 Mono 8
Dynamic range71 dB
SNR40 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 7 μs Standard exposure mode: 8 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)

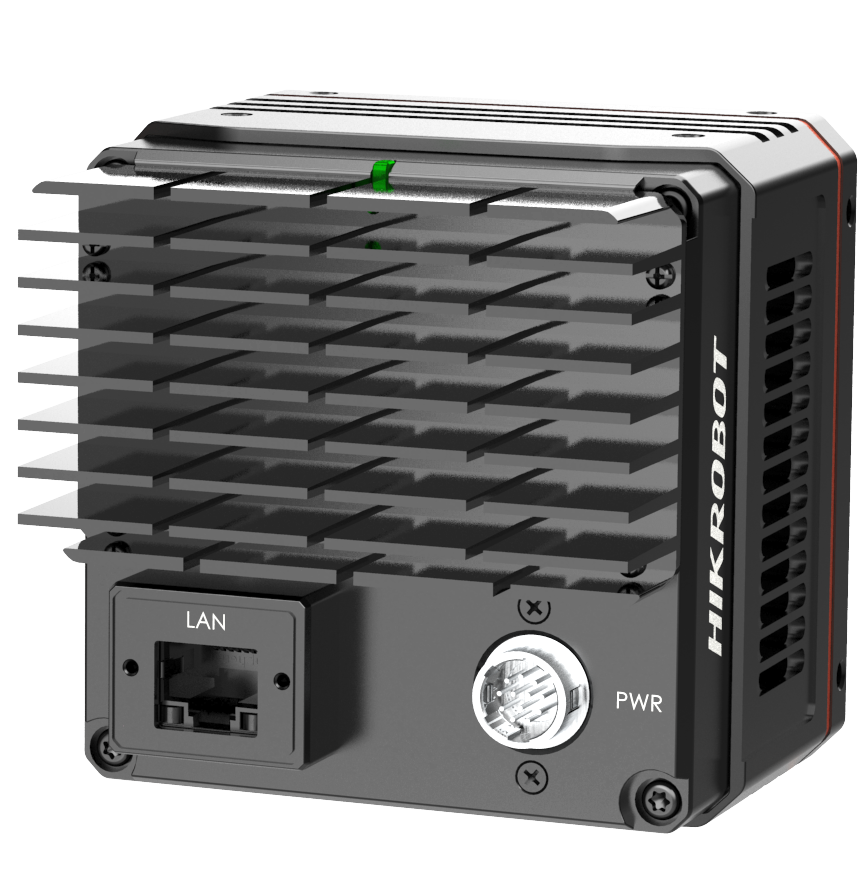

Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply9 VDC to 24 VDC
Power consumptionTyp. 10 W @ 12 VDC
Mechanical
Lens mountC-mount
Dimension84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
WeightApprox. 600 g (1.3 lb)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
