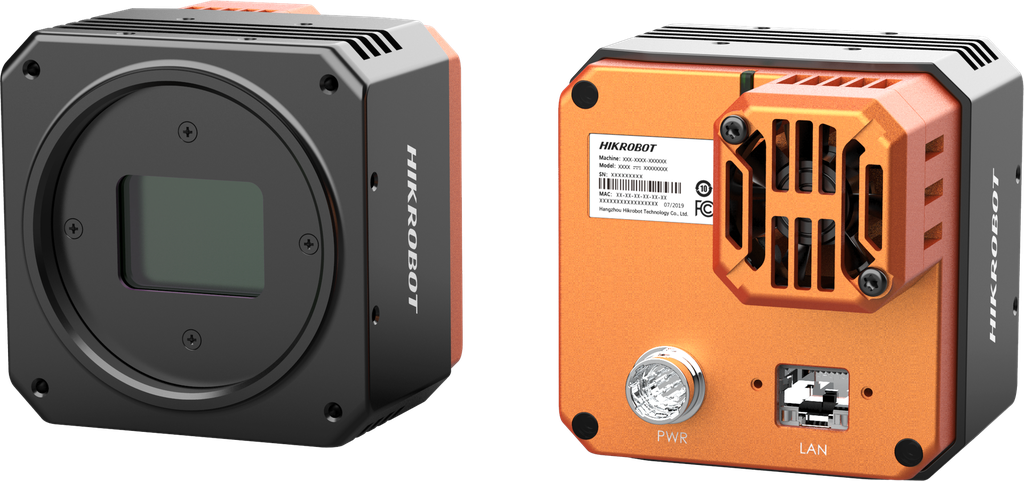

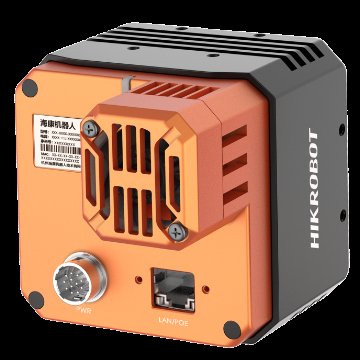

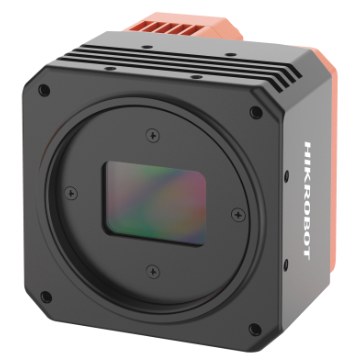

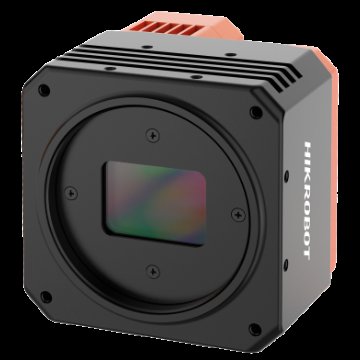

Hikrobot MV-CH500-90TC-M58S-NF

Hikrobot MV-CH500-90TC-M58S-NF — MV-CH500-90TM/TC camera adopts Gpixel® GMAX sensor to  M58-mount with fan, mono: provide high-quality images with high resolution and low noise. It MV-CH500-90TM-M58S-NF uses 10 GigE interface to transmit non-compressed data in real  M58-mount with fan, color: time, and its max. frame rate can reach 15.5 fps in full resolution. MV-CH500-90TC-M58S-NF  F-mount with fan, mono:. Genuine product, supplied by ZTEC.

12,626.48 € 12,626.48 €
kr 94,390.51
(Tax excluded)
Contact Us
Documents
MV-CH500-90TC-M58S-NF - Datasheet.pdf MV-CH500-90TC-M58S-NF - Drawing.pdf MV-CH500-90TC-M58S-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH500-90TC-M58S-NF

CH Area Scan Camera

Order code
MV-CH500-90TC-M58S-NF
Order number
306301866
Resolution
7008 × 7000
Frame rate
15.5 fps @ 7008 × 7000 Bayer BG 8
Pixel size
3.2 μm × 3.2 μm
Sensor
Gpixel® GMAX

Hikrobot MV-CH500-90TC-M58S-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 7008 × 7000, pixel size of 3.2 μm × 3.2 μm.
✓Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT, etc.
✓Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters.
✓Compact design with mounting holes on panels for flexible mounting.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel® GMAX
Pixel size3.2 μm × 3.2 μm
Sensor size22.4 mm × 22.4 mm
Resolution7008 × 7000
Max. frame rate15.5 fps @ 7008 × 7000 Bayer BG 8
Dynamic range66 dB
SNR40 dB
Gain1.25 × to 6 ×
Exposure time15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interface10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply9 VDC to 24 VDC
Power consumptionTyp. 12 W @ 12 VDC
Mechanical
Lens mountM58*0.75, flange back length 11.48 mm
Dimension74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
WeightApprox. 550 g (1.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
