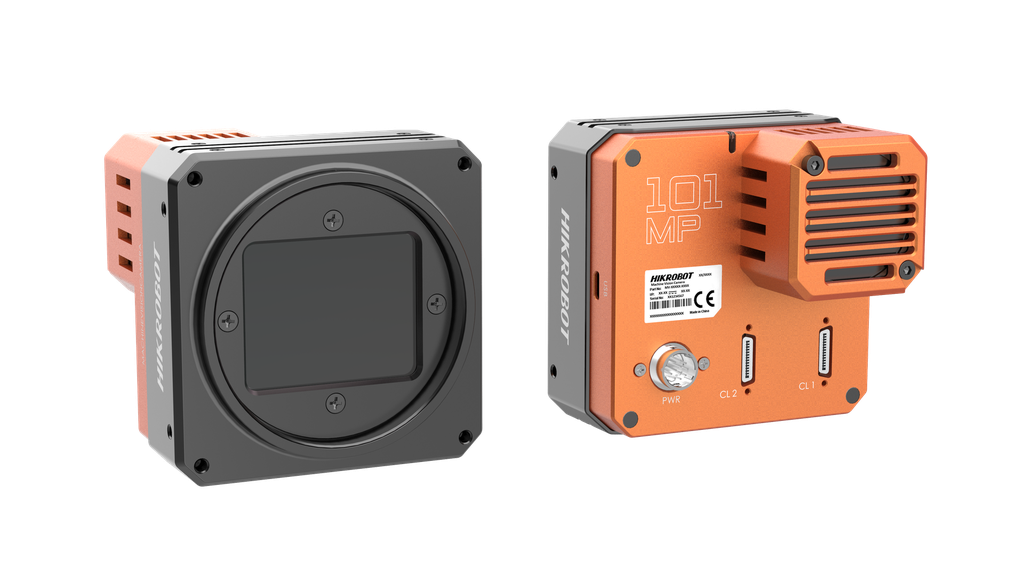

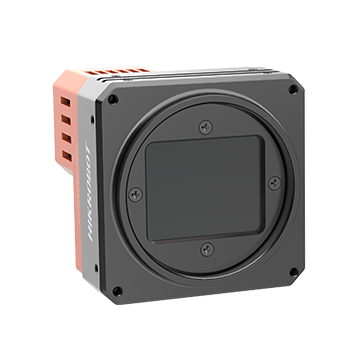

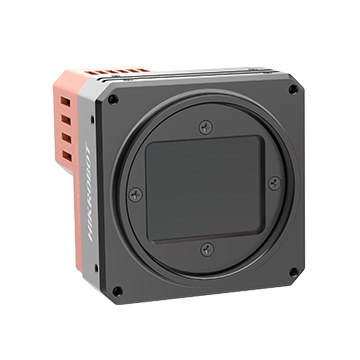

Hikrobot MV-CH1010-10CM-M72-TF

Hikrobot MV-CH1010-10CM-M72-TF — MV-CH1010-10CM/CC camera adopts Sony® IMX461 FPD detection, PCB AOI, file scanning, etc. sensor to provide high-quality images. It uses Camera Link Sensor Quantum Efficiency interface to transmit non-compressed images in real time, and its max. frame rate can reach 8.1 fps in full resolution.. Genuine product, supplied by ZTEC.

39,457.75 € 39,457.75 €
kr 294,970.36
(Tax excluded)
Contact Us
Documents
MV-CH1010-10CM-M72-TF - Datasheet.pdf MV-CH1010-10CM-M72-TF - Drawing.pdf MV-CH1010-10CM-M72-TF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH1010-10CM-M72-TF

CH Area Scan Camera

Order code
MV-CH1010-10CM-M72-TF
Order number
306301868
Resolution
11648 × 8740
Frame rate
8.1 fps @ 11648 × 8740 Mono 8
Interface
Camera Link with SDR interface
Pixel size
3.76 μm × 3.76 μm

Hikrobot MV-CH1010-10CM-M72-TF is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
✓Supports FFC correction function.
✓Provides camera with fan or TEC to meet different working temperature requirements.
✓Supports 16-bit ADC output with high acquisition accuracy and wide dynamic range.
✓Supports configuration modes of Base, Medium, Full and 80-bit via the Camera Link interface.
✓Compatible with Camera Link V2.0 Protocol, GenlCam Standard, and the frame grabber software meeting with GenICam Protocol.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX461
Pixel size3.76 μm × 3.76 μm
Sensor size55 mm
Resolution11648 × 8740
Max. frame rate8.1 fps @ 11648 × 8740 Mono 8
Configuration modeBase, Medium, Full, 80-bit
Tap geometry2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y
Tap number2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock40 MHz, 60 MHz, 70 MHz, 85 MHz
Dynamic range78 dB
SNR45 dB
Gain0 dB to 36 dB
Exposure time14 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset
Mono/colorMono
Pixel formatADC 12-bit mode: Mono 8/10/12 ADC 16-bit mode: Mono 8/10/12/16
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Electrical feature
Data interfaceCamera Link with SDR interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Power supplyCamera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC
Power consumptionCamera with TEC non-cooling: Typ. 14 W @ 24 VDC Camera with TEC cooling: Typ. 48 W @ 24 VDC
Mechanical
Lens mountM72*0.75, flange back length 19.55 mm
DimensionCamera with fan: 90 mm × 90 mm × 71.5 mm (3.5" × 3.5" × 2.8") Camera with TEC: 100 mm × 100 mm × 87.2 mm (3.9" × 3.9" × 3.4")
WeightCamera with fan: Approx. 790 g (1.7 lb.) Camera with TEC: Approx. 1.7 kg (3.7 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with GenlCam Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCamera Link V2.0, GenlCam
CertificationCE, RoHS, KC
